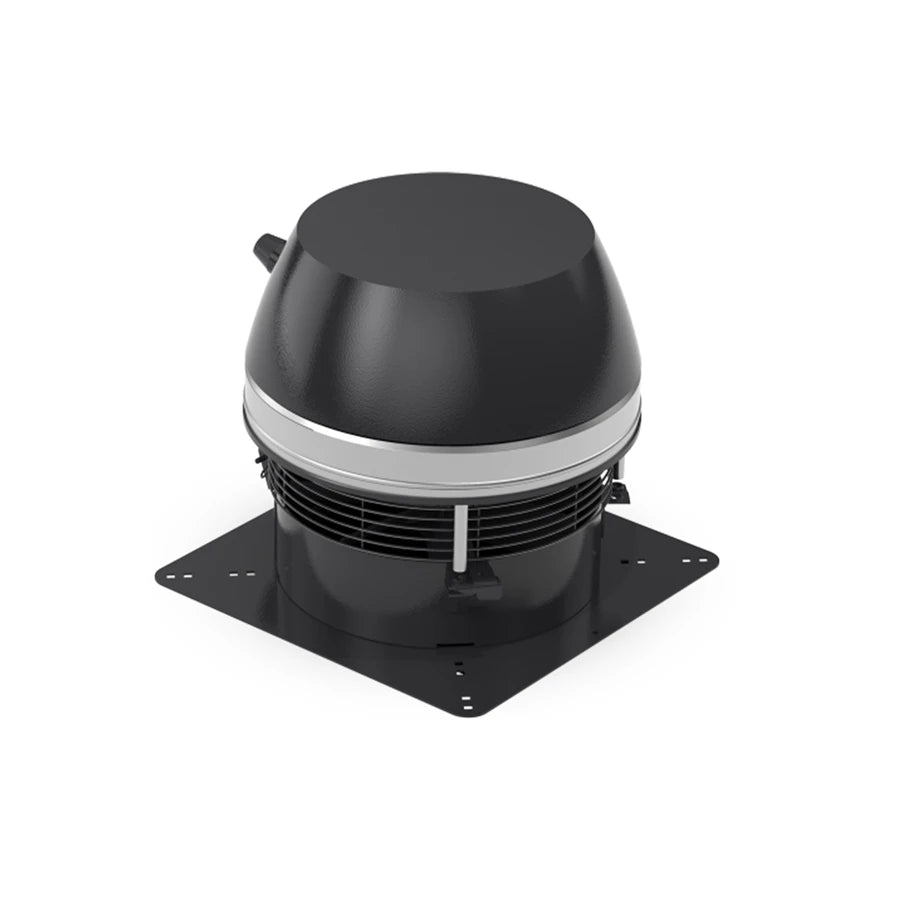

Product Description
The RSHT Fan is specifically designed for applications where efficient operation, low noise level, low energy consumption, variable speed and compact design are of utmost importance. It should be installed at the termination point of the chimney or stack section and can be mounted on masonry or metal chimneys. It is typically mounted in the vertical position, but may be sidewall vented as well.
The fan assures a negative pressure is maintained in the entire chimney or stack system. The fan discharges horizontally (vertically, if side-wall vented) at a high velocity.
The fan housing is hinged and the top can be opened for easy service and access to stack.
The RSHT is for use where flue gas temperatures do not exceed 1400°F (760°C) for intermittent operation and 1000°F (538°C) for continuous operation.
-
Material
- Housing is made of 3/16" stainless steel.
- Finished with one coat of black paint for added corrosion resistance.
-
Motor
- Split capacitor, totally enclosed.
- Class H insulated, IP54 Protection Class.
- Sealed ball bearings.
- Variable Speed.
- Thermal overload protection.
- Quiet Operation
- Variable-speed motor
- Use with solid-fuel-fired appliances
- Low operating costs
- 6-months Performance Guarantee
| Item Number | 102.0899.1200 |
| Capacities | 0-1,480 CFM (0-2,515 m3/h) |
| Material | Stainless Steel Housing and Axial Vane |
| Discharge | Horizontal |
| Fan Type | Axial Vane |
| Motor Type | Totally enclosed, Variable speed, Class F |
| Voltage (VAC) | 1x20 V @ 60 Hz |
| Amperage | 4.40 |
| RPM | 1580 |
| CFM (@0.0 Ps) | 1460 |
| Motor Output (hp / kW) | 0.47 / 0.35 |
| Weight (lbs / kg) | 47.2 / 21.4 |
| Temperature Rating (Interm.) | 1400ºF / 760ºC |
| Temperature Rating (Cont.) | 1000ºF / 538ºC |
| Listings |
|
