Key Features
How The Dustcontrol DC Tromb 400 H c Compares To The DC 2900 Line
Contractors handling heavy, continuous dust extraction usually face this question: should I stick with the portable DC 2900 line, or step up to the more powerful DC Tromb 400 for higher airflow and a self-cleaning filter?
| Feature | Dustcontrol DC 2900 Line | Dustcontrol DC Tromb 400 H c |
|---|---|---|
| Max Airflow | 126 CFM | 212 CFM, 400 m3/h class |
| Filter Cleaning | Manual filter maintenance | Patented self-cleaning washable polyester filter with signal lamp |
| Weight | 35-48 lbs | 101 lbs |
| Best Suited For | Handheld tools, small table saws | Continuous heavy-duty extraction, floor grinders, chisel hammers |
Product Description
- Tackles up to 400 m3/h
- Handles all kinds of fine dusts and materials created on construction sites as well as dust from many other industrial factory processes
- Equipped with a patented self-cleaning filter (washable polyester) and a
- H13-filter
- Compact and robust – easy to move and transport
- Signal lamp showing when it’s time to clean the filter
- Puncture proof wheels of ”non marking-type”, lockable to enable the user to work on uneven ground

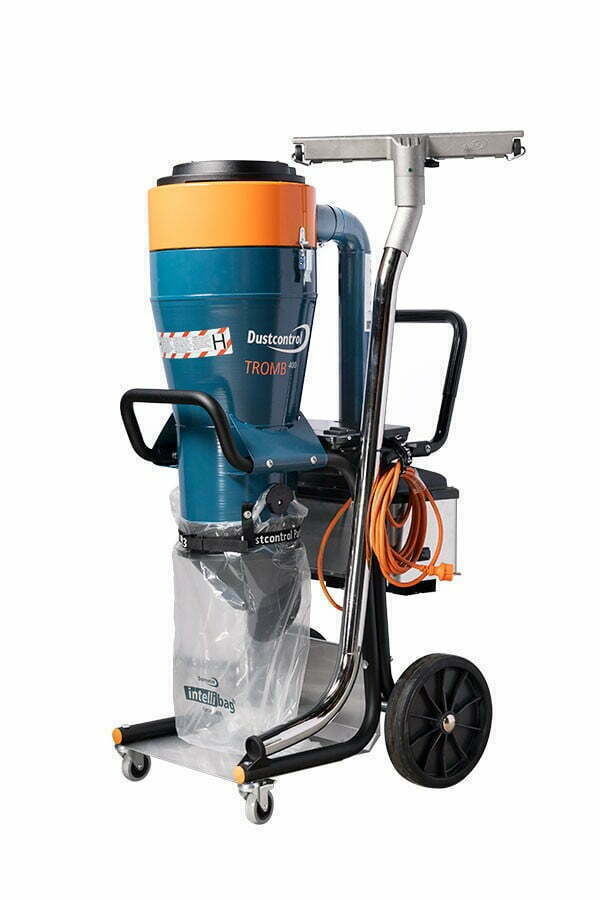

The DC Tromb 400H c is our most powerful 1-phase dust extractor up to now. It is designed to cope with both the demands for a clean and healthy working environment and handheld power tools which are more effective than ever. The dust extractor also enables the user to work without unneccessary interruptions – it tackles up to 400 m3/h.
The DC Tromb is not just powerful, robust and effective but also versatile and all-round. It can handle all kinds of fine dusts and materials created on a construction site created from cutting concrete, sanding, grinding or drilling floors or walls as well as dust from many other industrial factory processes. The machine can be connected to floor grinders and handheld tools like cutting machines, chisel hammers and saws. Due to its compact design the DC Tromb is also easy to move and transport.
As a standard the machine is equipped with a patented self-cleaning filter (washable polyester) and a H13-filter built to be Application Class H. A signal lamp shows when it’s time to clean the filter.*
The DC Tromb 400H c delivery package includes:
- 5 m hose (Ø 50),
- a chrome steel suction pipe and a strong aluminium floor tool
- Intellibag plastic sacks, 10 pcs
- puncture proof wheels of ”non marking-type” – can be locked to make it possible for the user to work on uneven ground.
- Switch operated reverse pulse filter cleaning
| HxWxD [in] |
56x24x31 |
|---|---|
| Weight [lb] |
101 |
| Inlet Ø [in] |
3 |
| Hose length Ø50mm/2'' [m/ft] |
5/16.4 |
| Collecting container [l/gal] |
5.3 |
| Max. flow fan (US/CAN) 115V [CFM/m3/h] |
212/360 |
| Negative pressure max. (US/CAN) [inwg/kPa] |
80.3/20 |
| Power (US/CAN) 115V [Hp/W] |
2.8/2100 |
| Fine filter polyester, area [ft2] |
20 |
| Degree of separation fine filter, EN 60335-2-69, Class M [%] |
99.9 |
| HEPA filter, area [ft2] |
23.7 |
| Filter classification HEPA filter, EN 1822-1 |
HEPA H13 |
| Degree of separation machine, EN 60335-2-69, Appendix A-A, Class H [%] |
99.995 |
| Max. sound level [dB(A)] |
70 |
Documents
Full Spec Sheet
| Model | 171502, DC Tromb 400 H c |
| Dimensions | 56 x 24 x 31 in |
| Weight | 101 lbs |
| Inlet | 3 in |
| Hose | 5m, 16.4 ft, 50mm/2 in |
| Collecting Container | Intellibag, 5.3 gal |
| Max Airflow | 212 CFM, 360 m3/h |
| Power | 2.8 HP, 2100W |
| Fine Filter Area | 20 sq ft, self-cleaning polyester |
| Fine Filter Separation | 99.9%, Class M |
| HEPA Filter Area | 23.7 sq ft, H13 |
| Machine Separation | 99.995%, Class H |
| Max Sound Level | 70 dB |
