Key Features
How The Dustcontrol DC Storm 600 Compares To The DC Tromb 600
Facilities needing dust extraction for multiple users or a central tubing system usually face this question: should I get the single-user DC Tromb 600, or invest in the three-phase DC Storm 600 for shared, high-capacity operation?
| Feature | Dustcontrol DC Tromb 600, Single-Phase | Dustcontrol DC Storm 600, Three-Phase |
|---|---|---|
| Motor | Single-phase, 4 HP | Three-phase turbopump, 10 HP |
| Multi-User Capability | Single user | Sufficient airflow for several users, or central tubing system |
| Grinding Disc Compatibility | Standard floor grinders | Up to 800mm, 31 in diameter |
| Weight | 143 lbs | 442 lbs |
Product Description

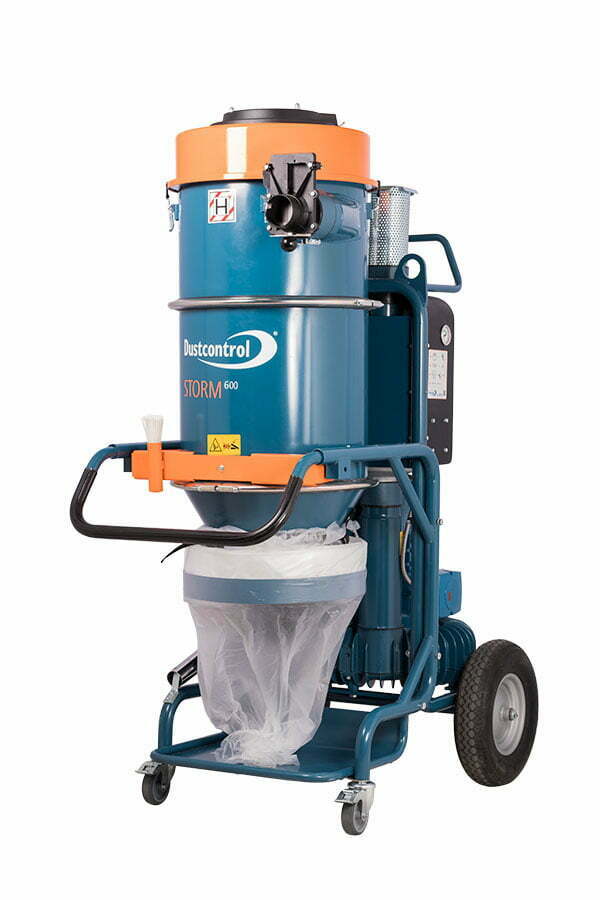

The DC Storm is a powerful and reliable mobile dust extractor. They are built on a robust and sturdy steel chassis for maximum durability, for example on construction sites. With a direct-driven, three-phase turbopump, the DC Storm is suitable for continuous operation, conveying heavy material away, source extraction and cleaning.
- An efficient semi-automatic filter cleaning system
- For easier transportation it has handles both front and rear and the cyclone can be tilted
- For better ergonomic the handles are adjustable and the cyclone can be tilted for easier filter exchange
- Equipped with Intellibag (DC Storm 500c), container (DC Storm 500a) or Longopac (DC Storm 500L
- An efficient HEPA filter with a large filter area
The DC Storm is a powerful and reliable mobile dust extractor. They are built on a robust and sturdy steel chassis for maximum durability, for example on construction sites. With a direct-driven, three-phase turbopump, the DC Storm is suitable for continuous operation, conveying heavy material away, source extraction and cleaning.
The DC Storm provides sufficient air flow for several users at the same time and it can also be used as a semi-mobile central unit in a tubing system. It is suitable for source extraction for grinding discs up to approx. 800 mm/ 31″ in diameter.
Three basic models are available: bag (c), container (a) and longopac (L), each powered by a 10hp motor.
The DC Storm 600L is delivered as standard with the following:
- Coupling socket (Part No. 2107),
- Coupling socket (Part No. 2008)
- Suction hose antistatistic Ø50mm/2″ 7.5m/22 ft (Part No. 2013)
- Floor nozzle B500mm/W 19.7″ (Part No.7238)
- Suction pipe Ø50mm/2″ (Part No.7265)
- Longopac 25 m /82 ft (44077)
- Fine filter, PTFE (Part No.44081)
- HEPA H13 filter (Part No.42807)
| HxWxD [in] |
70x31x46 |
|---|---|
| Weight [lb] |
442 |
| Inlet Ø [in] |
3 |
| Hose length Ø50mm/2'' [m/ft] |
7.5/22 |
| Collecting container [l/gal] |
longopac |
| Max. flow fan (US/CAN) [CFM/m3/h] |
353/600 |
| Negative pressure max. (US/CAN) [inwg/kPa] |
24/96 |
| Power (US/CAN) [Hp/kW] |
10/7.5 |
| Fine filter polyester, area [ft2] |
54 |
| Degree of separation fine filter, EN 60335-2-69, Class M [%] |
99.9 |
| HEPA filter, area [ft2] |
29 |
| Filter classification HEPA filter, EN 1822-1 |
HEPA H13 |
| Degree of separation machine, EN 60335-2-69, Appendix A-A, Class H [%] |
99.995 |
| Max. sound level [dB(A)] |
75 |
Documents
Full Spec Sheet
| Model | 119434, DC Storm 600 L |
| Dimensions | 70 x 31 x 46 in |
| Weight | 442 lbs |
| Inlet | 3 in |
| Hose | 7.5m, 22 ft, antistatic |
| Collecting Container | Longopac, 25m |
| Max Airflow | 353 CFM, 600 m3/h |
| Power | 10 HP, 7.5 kW |
| Fine Filter Area | 54 sq ft, polyester PTFE |
| HEPA Filter Area | 29 sq ft, H13 |
| Machine Separation | 99.995%, Class H |
| Max Sound Level | 75 dB |
