Key Features
How The Dustcontrol DC 2800 H EX Compares To Standard Dust Extractors
Facilities in explosion-risk industries like wood, food, and electronics processing usually face this question: should I use a standard dust extractor, or invest in this ATEX Zone 22 certified DC 2800 H EX built for combustible dust environments?
| Feature | Standard Dustcontrol DC 2900 Line | Dustcontrol DC 2800 H EX |
|---|---|---|
| Explosion Certification | Not ATEX certified | ATEX Zone 22, directive 2014/34/EU |
| Motor Type | Standard motor | Brushless, spark-free operation |
| Ingress Protection | Not specified | IP54, non-conductive dust |
| Best Suited For | General construction and trade dust extraction | Wood, food production, and electronics with explosion risk |
Product Description
The professionals choice in ATEX zone 22
- Especially designed for industries where there is a risk of explosion and also high demands for clean production, such as the wood, food production and electronics industries
- Cleaning accessories from Dustcontrol are also available to meet the ATEX Zone 22 regulations
- IP54
- Brushless motor

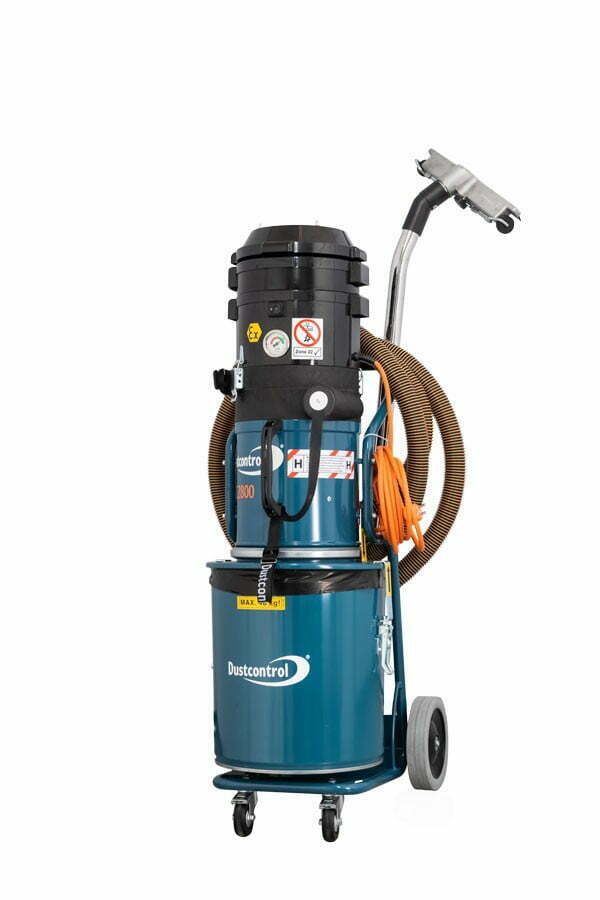

The DC 1800 and 2800 H EX are suitable for general cleaning and source extraction. The DC 1800 H EX is small and lightweight and as such, suitable for those that need a highly portable machine that still is powerful enough for source extraction. The DC 1800 and 2800 H EX are equipped with a steel container. The machines are equipped with a brushless motor (for spark-free operation) and certified to IP54 standard (non conductive dust).
The EX-line is especially designed for industries where there is a risk of explosion and also high demands for clean production, such as the wood, food production and electronics industries. The machines fulfil the requirements of the ATEX Zone 22 directive 2014/34/EU. Cleaning accessories from Dustcontrol are also available to meet these regulations.
Zone 22 is an area where an explosive environment, created by combustible airborne substances, does not occur in normal operation or only occurs short-term. These machines are equipped with steel containers, earth-bonded parts and antistatic accessories.
The machines for non-conducting material are enclosed to IP54 standard. For conductive material, IP65 standard is required. The machines are virtually maintenance free and can extract dust in a vast range of applications such as source extraction when using power tools for grinding, cutting and drilling applications as well as general.
Supplied with (Part No) DC1800 / DC 2800 H EX:
- Suction hose ATEX, Ø38, 5 m/ 20 in. (2027)
- Floor nozzle (7235E)
- Suction pipe Ø38 mm/1.5” (7257)
- Fine filter, polyester (42028-01)
- HEPA H13 filter (42027)
| HxWxD [in] |
47x17x24 |
|---|---|
| Weight [lb] |
54 |
| Inlet Ø [in] |
2 |
| Hose length Ø38mm/1.5" [m/ft] |
5/16.4 |
| Collecting container [l/gal] |
40/10.6 |
| Max. flow fan (US/CAN) 115V [CFM/m3/h] |
117.7/200 |
| Negative pressure max. (US/CAN) [inwg/kPa] |
108.4/27 |
| Power (US/CAN) 115V [Hp/W] |
2/1500 |
| Fine filter polyester, area [ft2] |
16.15 |
| Degree of separation fine filter, EN 60335-2-69, Class M [%] |
99.9 |
| HEPA filter, area [ft2] |
9.15 |
| Filter classification HEPA filter, EN 1822-1 |
HEPA H13 |
| Degree of separation machine, EN 60335-2-69, Appendix A-A, Class H [%] |
99.995 |
| Max. sound level [dB(A)] |
70 |
Documents
Dustcontrol Original Instructions DC 1800 2800 H EX 94169 L up to serialnr 8100852
Dustcontrol Original Instructions 1800 2800 H EX 94169 M From Serialnr 8100853
Full Spec Sheet
| Model | 124103, DC 2800 H EX |
| Certification | ATEX Zone 22, IP54 |
| Dimensions | 47 x 17 x 24 in |
| Weight | 54 lbs |
| Inlet | 2 in |
| Hose | 5m, 16.4 ft, ATEX |
| Collecting Container | 40L, 10.6 gal, steel |
| Max Airflow | 117.7 CFM |
| Power | 2 HP, 1500W |
| Fine Filter Separation | 99.9%, Class M |
| HEPA Filter | H13 |
| Machine Separation | 99.995%, Class H |
| Max Sound Level | 70 dB |
