Key Features
How The Dustcontrol DC 2800 H EX Stainless Steel Compares To The Standard EX Model
Food processing and high-hygiene facilities in ATEX Zone 22 environments usually face this question: should I get the standard steel DC 2800 H EX, or this stainless steel version built for alkaline wash-down and acid resistance?
| Feature | Dustcontrol DC 2800 H EX, Standard Steel | Dustcontrol DC 2800 H EX, Stainless Steel |
|---|---|---|
| Material | Standard steel container | Stainless steel construction |
| Wash-Down Compatibility | Not designed for alkaline wash solutions | Enables alkaline wash solutions |
| Acid Resistance | Standard | High resistance to acids |
| Best Suited For | General ATEX Zone 22 industrial use | Food processing and high hygienic-demand environments |
Product Description
The professionals choice in ATEX zone 22
- Suitable for operation in environments with potentially combustible dust (non-conductive); stainless steel design enables the use of alkaline wash solutions; high resistance to acids.
- Cleaning accessories from Dustcontrol are also available to meet the ATEX Zone 22 regulations
- IP54
Dustcontrol’s DC 1800/2800 H EX SS are valued both for its easy handling and capacity when being used to reduce the risks of potential dust explosions in ATEX Zone 22 (non-conductive dust). However, there are areas with high hygienic demands (e g the food processing industry), which surpass the abilities of our standard DC 1800/2800 H EX SS. Suitable for operation in environments with potentially combustible dust (non-conductive); stainless steel design enables the use of alkaline wash solutions; high resistance to acids.
Supplied with (Part No) DC1800 / DC 2800 H EX Stainless Steel:
- Suction hose, antistatic Ø38 ATEX (2027)
- Floor nozzle 370 A-38, ESD-certified (7235E)
- Suction pipe Ø38 mm/1.5” (7257)
- Plastic bag (42951)
- Fine filter, polyester (42028-01)
- HEPA H13 filter (42027)
| HxWxD [in] |
47x17x24 |
|---|---|
| Weight [lb] |
31 |
| Inlet Ø [in] |
2 |
| Hose length Ø38mm/1.5" [m/ft] |
5/16.4 |
| Collecting container [l/gal] |
40/10.6 |
| Max. flow fan (US/CAN) 115V [CFM/m3/h] |
117.7/200 |
| Negative pressure max. (US/CAN) [inwg/kPa] |
108.4/27 |
| Power (US/CAN) 115V [Hp/W] |
2/1500 |
| Fine filter polyester, area [ft2] |
16.15 |
| Degree of separation fine filter, EN 60335-2-69, Class M [%] |
99.9 |
| HEPA filter, area [ft2] |
9.15 |
| Filter classification HEPA filter, EN 1822-1 |
HEPA H13 |
| Degree of separation machine, EN 60335-2-69, Appendix A-A, Class H [%] |
99.995 |
| Max. sound level [dB(A)] |
70 |
Documents
Dustcontrol Original Instructions DC 1800 2800 H EX 94169 L up to serialnr 8100852
Full Spec Sheet

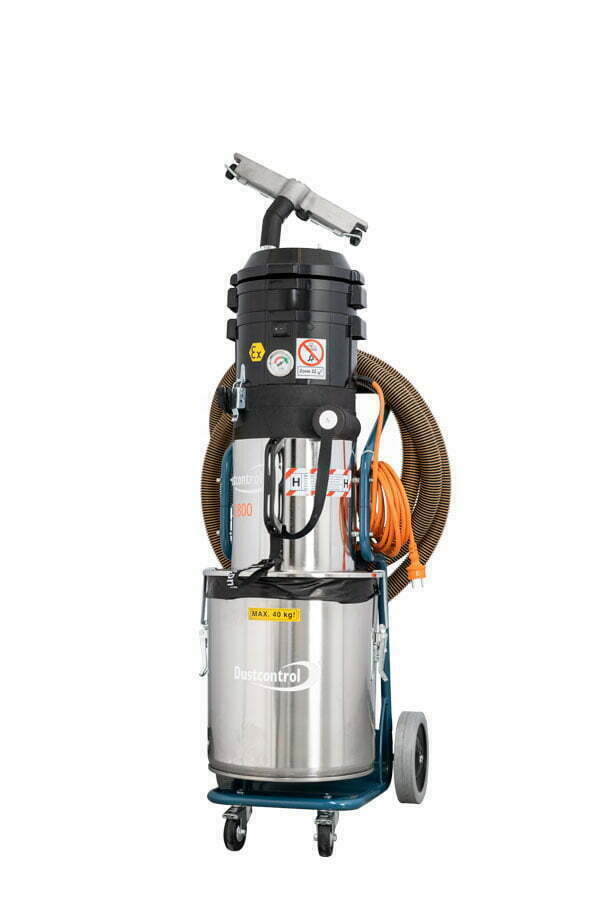

| Model | 124104, DC 2800 H EX Stainless Steel |
| Certification | ATEX Zone 22, IP54 |
| Material | Stainless steel |
| Dimensions | 47 x 17 x 24 in |
| Weight | 31 lbs |
| Inlet | 2 in |
| Hose | 5m, 16.4 ft, antistatic ATEX |
| Collecting Container | 40L, 10.6 gal |
| Max Airflow | 117.7 CFM |
| Power | 2 HP, 1500W |
| Machine Separation | 99.995%, Class H |
| HEPA Filter | H13 |
| Max Sound Level | 70 dB |
