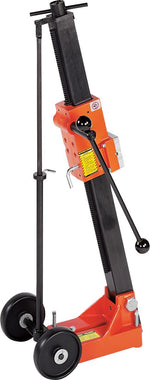

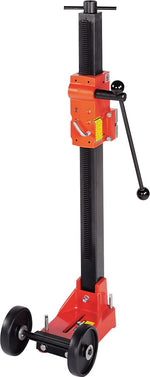

Diamond Products Core Drill with O Vacuum Pump M-1 Series Core Drill 39159

Features & Benefits:

• 2-1/2” square column (mast) with black oxidized finish
• 6” wheels for easy mobility
• Dual switch/outlet control panel with amp meter (except for CB700 models with LED amp meter)

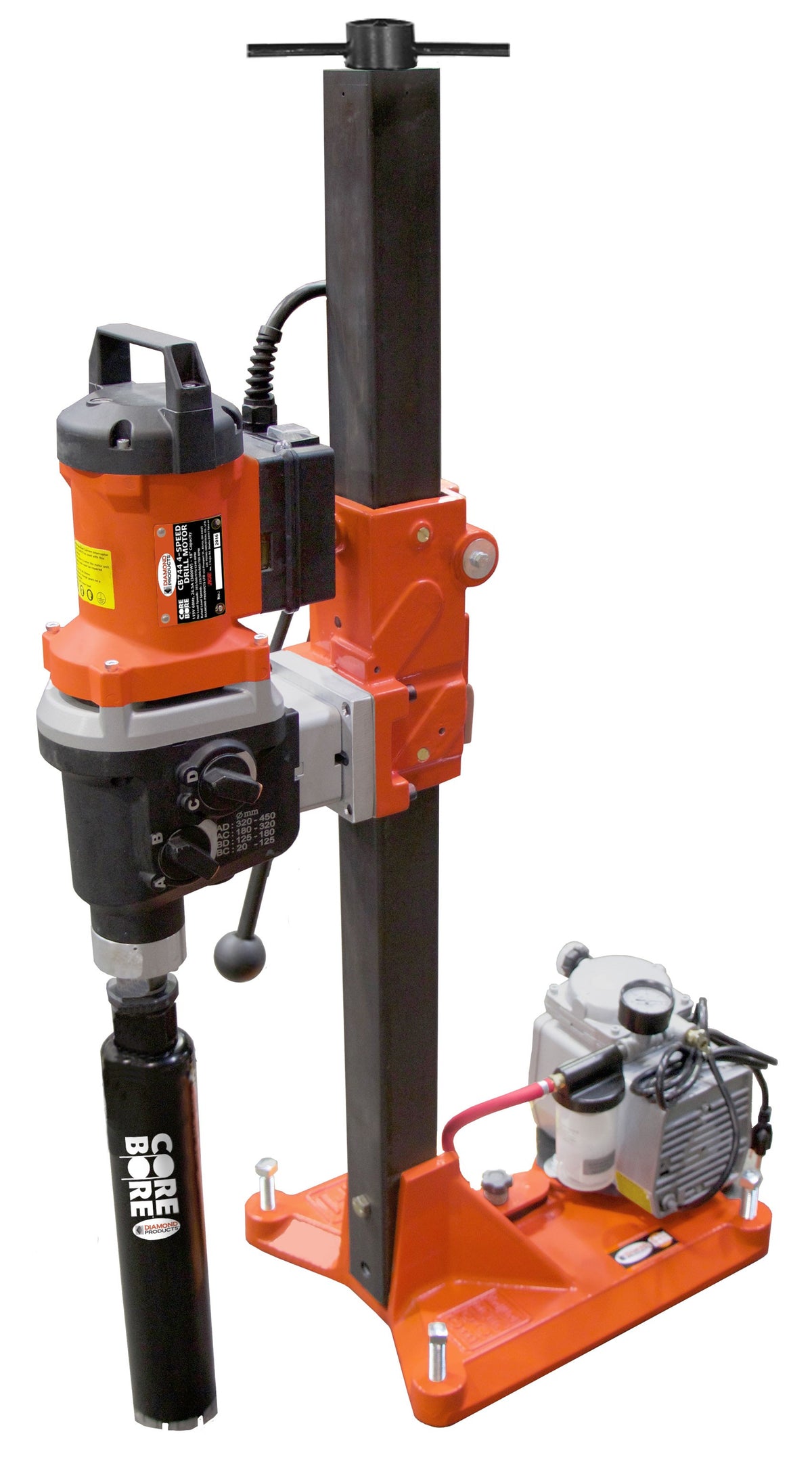

• Vacuum pump for quick mounting to flat surface without drilling an anchor hole (included with combination rig)
• 4 leveling screws on the base
• Up to 14” bit capacity with one spacer block
• Slide handle allows for drilling in tight areas

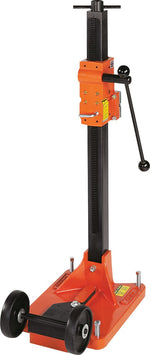

• Combination base is a quick change over from vacuum to anchor base
• Ceiling jack helps keep the rig in place as a backup for anchoring or vacuuming the base down (used with a brace piece-2 x 4 or other material)

• M-1 Complete Core Rig - Operator Manual (#1801993)
• M-1 Complete Core Rig - Parts List
• CB733 Motor Parts List
• CB744 Motor Parts List
• WEKA DK22 Motor Parts List
