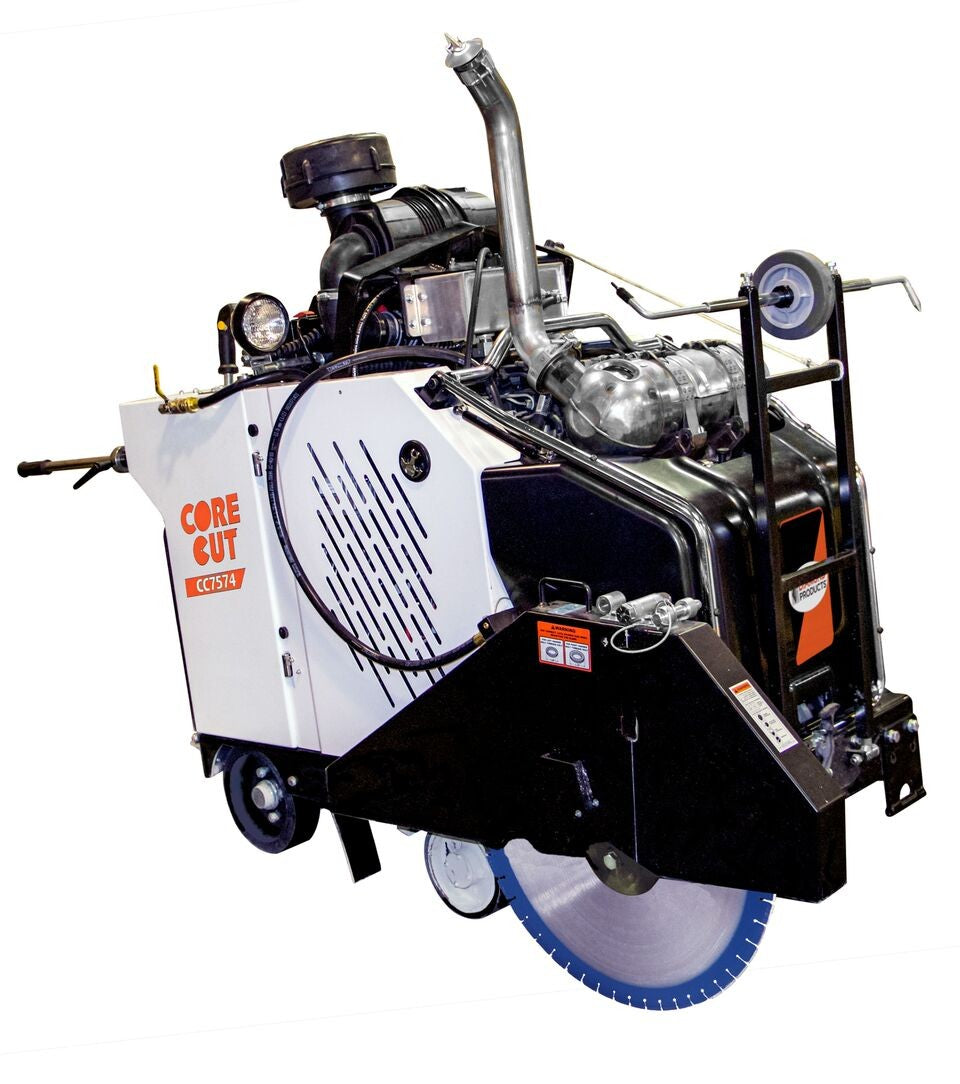

Product Description
Features & Benefits:
- Tier 4 Final Deutz® diesel engine
- Available with enhanced clutch assembly that allows the blade to be disengaged while the engine is running (single speed only)
- Easy maneuvering self propelled drive
- Strongest frame on the market
- Hydraulic wheel motor drive
- Blade shaft gearbox-oil bath for low maintenance
- 4 stage air filter system
- 19-3/4” maximum cutting depth
- Maintenance-free DVERT® diesel oxidation catalytic converter (DOC-only, no DPF).
- High pressure common rail electronic fuel injection.
- Modern computer interface engine controls 20”-48” Blade Capacity
Specifications:
| Maximum depth of cut with 20” blade: | 7-1/4” (5” flange) |
| Maximum depth of cut with 26” blade: | 10-1/4” (5” flange) |
| Maximum depth of cut with 30” blade: | 12-1/4” (5” flange) |
| Maximum depth of cut with 36” blade: | 14-3/4” (6” flange) |
| Maximum depth of cut with 42” blade: | 17-1/4” (7” flange) |
| Maximum depth of cut with 48” blade: | 19-3/4” (8” flange) |
| Engine: | Deutz® Turbo Diesel |
| Engine Specs: | 4 Cylinder, 3.3 Liter |
| Max Engine Power: | 74.3HP at 2,600 RPM |
| Power at the Blade Shaft: | 74 Horsepower |
| Emission Regulation: | EPA Tier 4 Final Compliant |
| Blade shaft diameter: | 2” |
| Arbor size: | 1” w/drive pin |
| Blade shaft bearings: | Multiple ball bearings in oil bath |
| Blade shaft drive: | 20 V-belts |
| Blade mounting: | Right or Left |
| Blade raise & lower: | Electro-hydraulic pump |
| Blade Coolant: | Dual multi-spray tubes |
| Drive speed: | 0-250 feet/min forward and reverse |
| Transmission: | Hydro pump powering dual wheel motors |
| Air filter: | 4 stage w/restriction indicator |
| Fuel capacity: |
9 gallons |
