Darex Drill Sharpener Bundle XT-3000

This bundled sharpening station gives you everything you need for your professional in-house sharpening station. There are several variations of our XT3000 sharpener available in this bundle.

Each bundle contains the following items:

XT-3000 Drill Sharpener: Manual, or Auto configurations available. Machine comes equipped with grind wheels and two chucks to cover the standard drill bit size range.

Machine Stand: Built to stand up to the abuse of daily shop life, while helping you keep all of your sharpening accessories in one place.

Vacuum Grit Removal System: specifically designed for our machines, this continuous duty regenerative blower works to keep your drill sharpener clean.

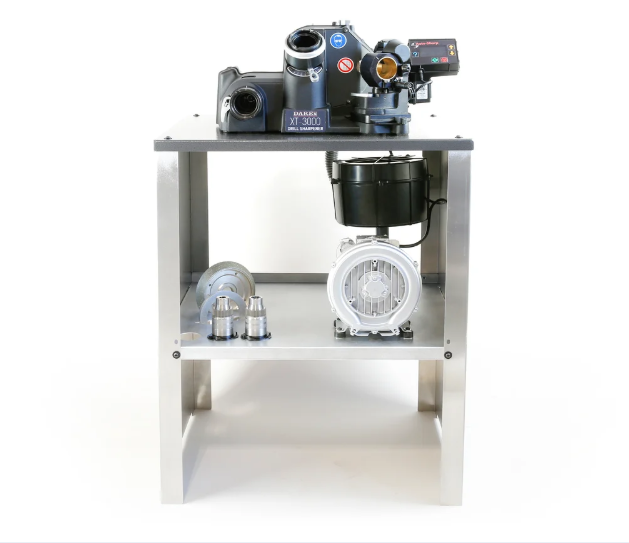

The XT-3000 sharpening system bundle is the start to the ultimate sharpening station. With this bundle, you receive your preferred variation of the XT-3000 Drill sharpener, our Machine Stand (SKU SA10174AF) and Vacuum Grit Removal System (SKU SA10173AF). This system allows you to keep all of your attachments, grind wheels and other related equipment all in one place – further increasing efficiency and productivity.

If you want the right point for the job, but don’t want to become a tool and cutter grinding expert, the Darex XT-3000 is for you. You can sharpen in house for only pennies a drill. Assembled in the USA from US and imported parts. 30 day trial available – If you are not satisfied with your sharpener within 30 days of receiving it, contact us to initiate a return and all you pay is shipping. We want to be sure you get a product you love! **30 day trial only available for purchases made directly through Darex IND, INC. 3rd party purchases are subject to the seller’s policies. **Products purchased via financing are NOT eligible for 30 day returns.

XT-3000 Drill Sharpener Base Unit Specifications:

Ideal For: Shops that sharpen a variety of drill sizes and styles and want the advantages of a highly advanced manual drill and tool sharpener

Acceptable drill diameter: 3mm (.118, 1/8inch) – 21 mm (.826, 13/16 inch)

Acceptable drill length: Unlimited maximum, two inch minimum.

Duty Rating: Heavy duty

Grit Removal System: Optional vacuum

Cutting Tool Diameter: 1/8 inch – 13/16 inch (3–21 mm)

Operation Mode: Manual or Automatic

Machine Weight: 68-72 lbs (31 kg)

Point Angles Sharpened: 118°–150° (90° option available)

Machine Size: 20″ x 20″ x 16″ (51 x 51 x 41 cm)

Point Styles Sharpened: Standard conic and split point

One Set of the Following Sharpening Wheels Included:

• CBN (for sharpening HSS or Cobalt Drills)
• Diamond (for sharpening Carbide Drills)
• Hybrid (for sharpening HSS, Cobalt and Carbide Drills)

Power: 2.5 amps at 115V, 1.6 amps at 230V; 1/4 hp (for international machines)

Options Available:

• Large drill attachment (21–30 mm)
• XY Table attachment
• Countersink attachment
• Brad point attachment
• Step drill attachment
• 90°–120° attachment
• Machine cover
• Vacuum (extends warranty by 1 year)
• 180-grit diamond wheel
• Diamond split point wheel
• 3–12 mm left-hand chuck
• 2–21 mm left-hand chuck

Warranty

A 1-Year Warranty covers defects due to workmanship and design, excluding abrasives. Warranty valid in USA and Canada only.

NOTE: Using a 115V machine in a location with 230V power sources voids the warranty.
