Product Description

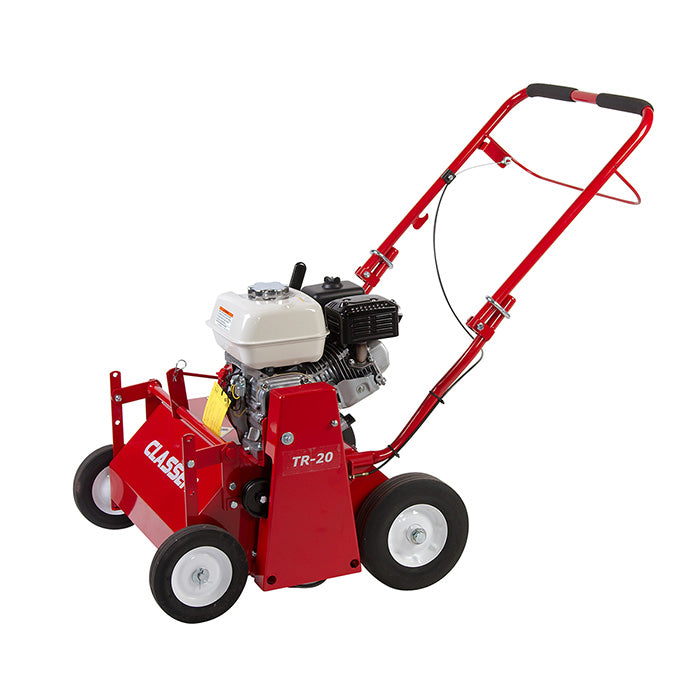

Classen TR-20H Turf Rake
Classen Turf Rakes are versatile and portable dethatchers. These units feature fold-down handles for easy transport and storage. Optional attachments are available for turf overseeding and vertical slice aeration.
- Multiple blade options available to dethatch any turf
- Converts in minutes to an overseeder or vertical slice aerator
- Our most compact and easy-to-use turf rake
- Fold-down handles for easy transport
- 2-Year Warranty
Walk-Behind Turf Rake Common Specifications
| Transmission | Belt Drive |
| Operating Width, in (cm) | 20 (50.8) |
| Blade/Reel (Standard) | Flail |
| Number of Blades | 28 |
| Height Adjustment Positions* | 5 |
| Height Adjustment Increments, in (cm) | 0.25 (0.6) |
| Front Wheels, in (cm) | 8x1.75 (20.3x4.5) |
| Front Wheels Style | Solid Rubber |
| Rear Wheels, in (cm) | 10x2.6 (25.4x6.6) |
| Rear Wheels Style | Solid Rubber |
| Dimensions LxWxH, in (cm) | 44x27x40 (112x69x102) |
| Folded Dimensions LxWxH, in (cm) | 31x27x26 (79x69x66) |
| Dry Weight, lbs (kg) | 135 (61) |
| Warranty** | 2 years |
| *to accommodate blade wear | **engines warranted separately |
Walk-Behind Turf Rake Features
- Honda® GX160 or Kohler CH245 engines
- Available in your choice of standard flail blade or spring tine reel
- Versatile and compact 20″ turf dethatcher
- Folding handle for easy and convenient transportation
- TR-20 models features 28 heat–treated flail blades with spacing of 11/16″ standard adjustable up to 1-3/8″
- 5-position, single action height adjustment.
- Heavy-duty, greasable bearings with cast iron housings
- Wheels have sealed bearings and semi–pneumatic tires
- Can be converted to a turf seeder, or vertical cutter in minutes
- Partial and Complete Reel Assemblies are available
