Product Description

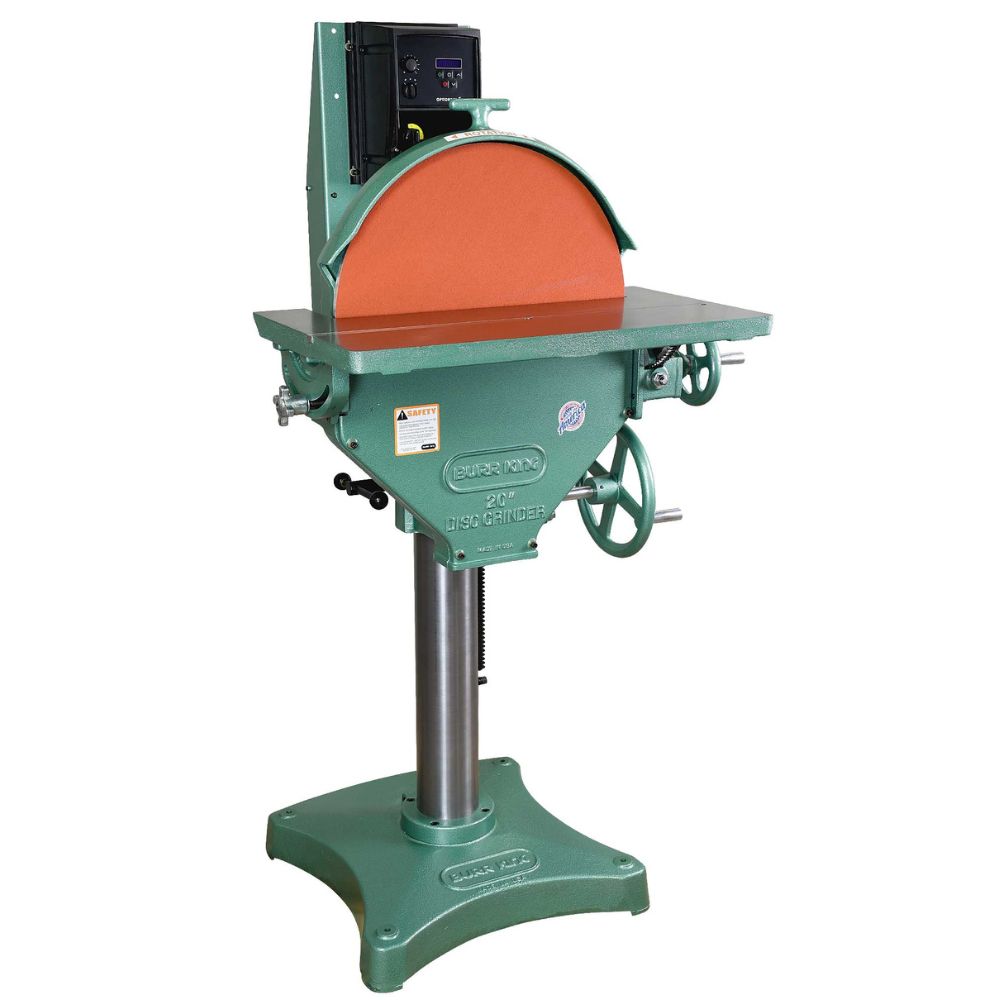

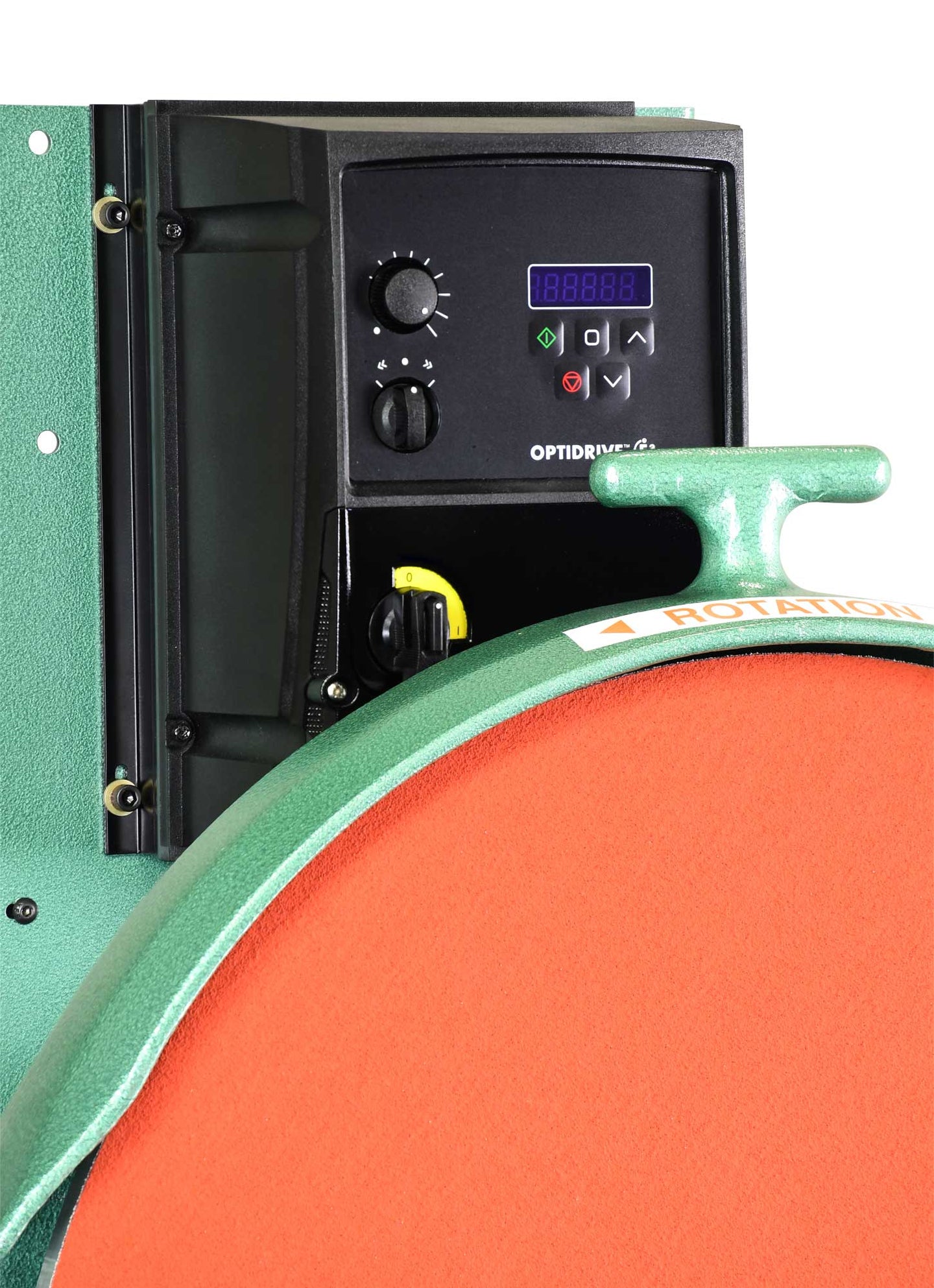

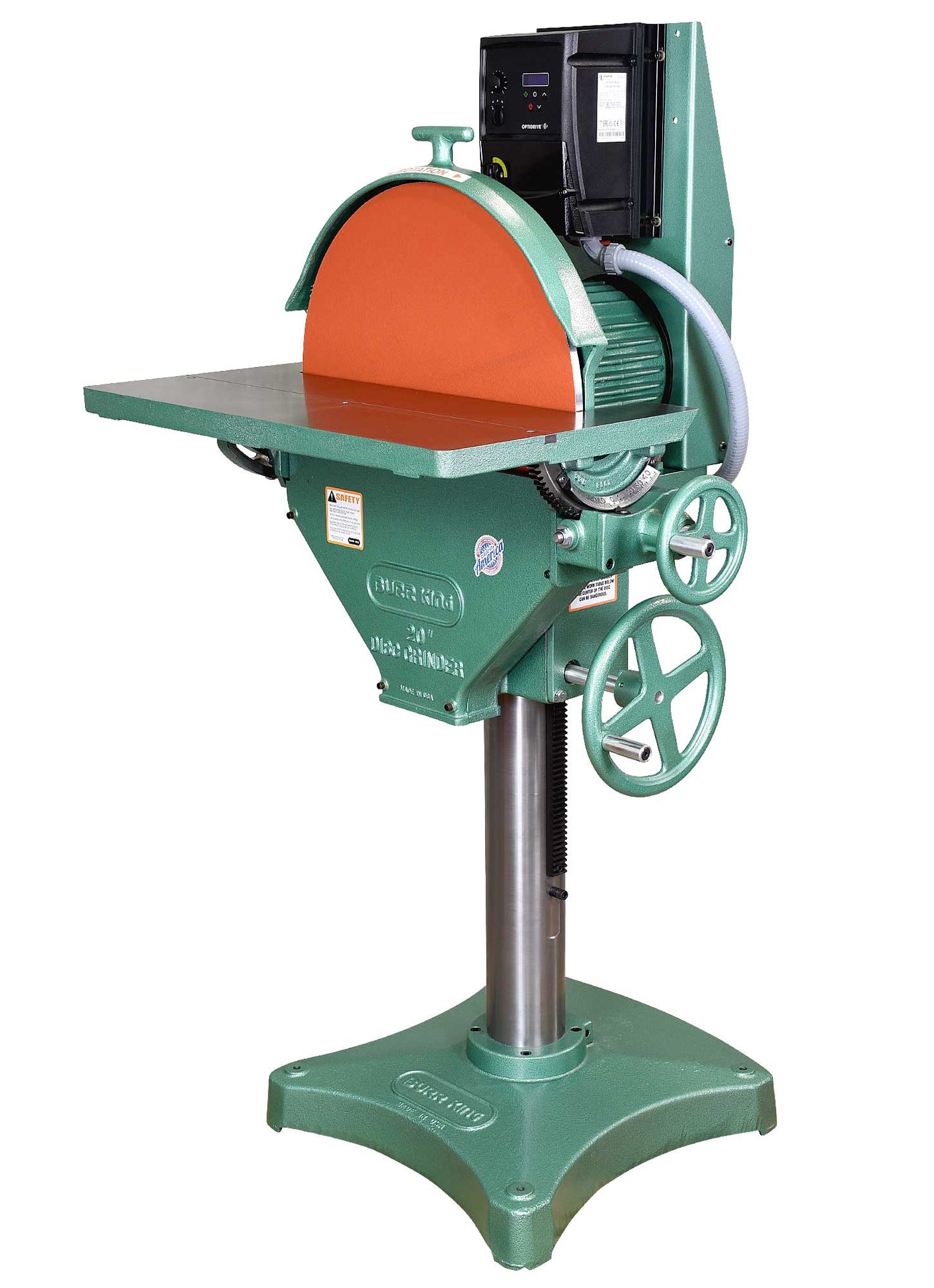

The Model 20 Disc Grinder – (SKU 24103) speed controller includes all control and overload features of a standard magnetic starter in addition to the solid state frequency controller and electronic brake.
- 3 HP / 220 volt / Three Phase
- 170 – 1725 RPM – Variable Speed
- Dynamic Electronic Braking
- Lockout – Tagout Electrical Disconnect
- Cast Iron 3 HP USA Made Motor
- Reversible Disc Rotation
- Up to 9,000 SFPM disc speed

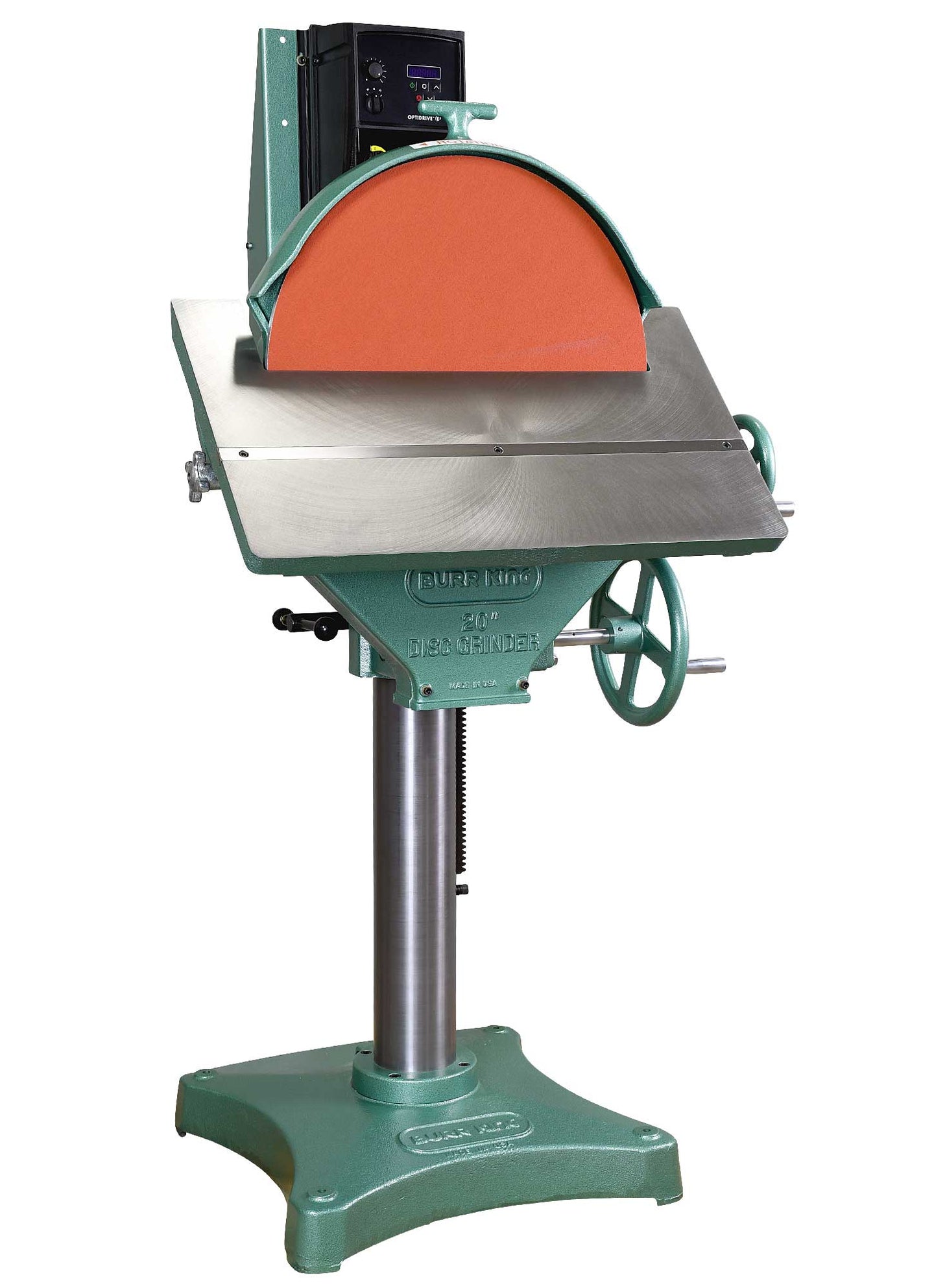

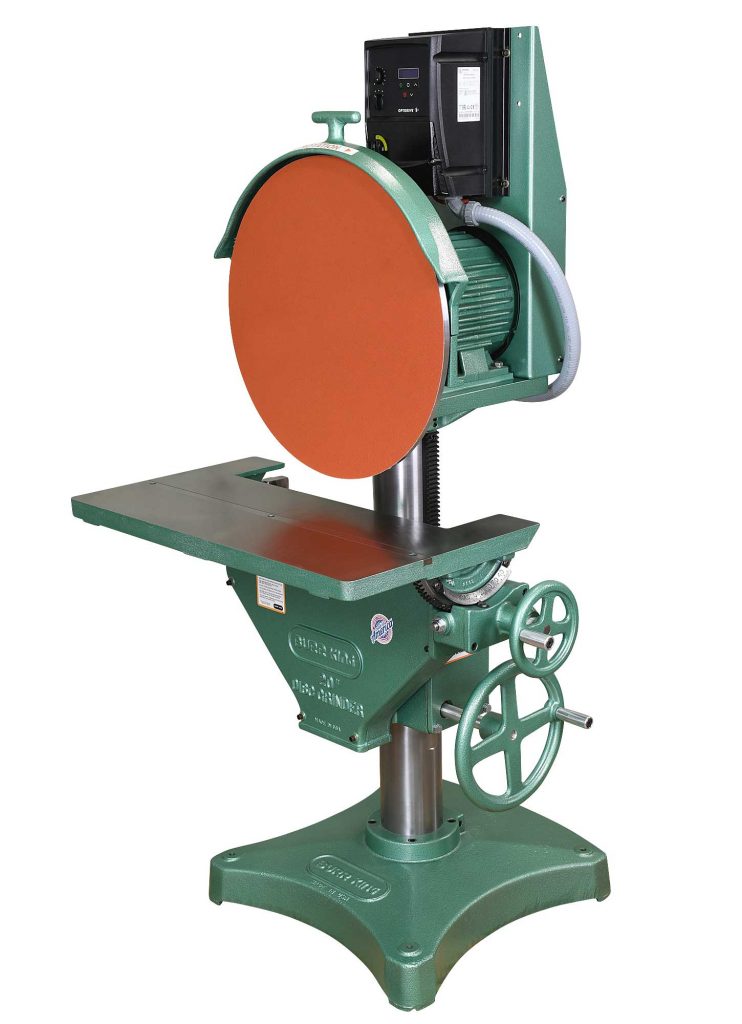

- Gear Driven – Elevating & Tilting Table
- Overall Height, Width, Depth: 54″ x 34″ x 28″
- Large Cast Iron Table – 27″ x 11″
- Tilting Disc Safety Guard
- Precision Machined/Balanced Solid Billet Disc
- .005 TIR disc face run-out
- Adjustable Work Rest: Yes
- Rugged gray, ductile iron and aluminum castings construction
- Optional dust scoop (DS20)
- Optional miter attachment (MA-1)
- All castings are American Made
| Weight | 645 lbs |
|---|---|
| Volt/Phase |
220/3* |
| Hz |
60 |
| HP |
3 |
| Disc RPM |
170-1725 |
| Variable Disc RPM |
Yes |
| FWD/REV Switch |
Yes |
| Disc Brake |
Yes |
| MAG. Starter |
N/A |
| Country of Origin |
Manufactured in the U.S.A. with U.S. and Global Components |
