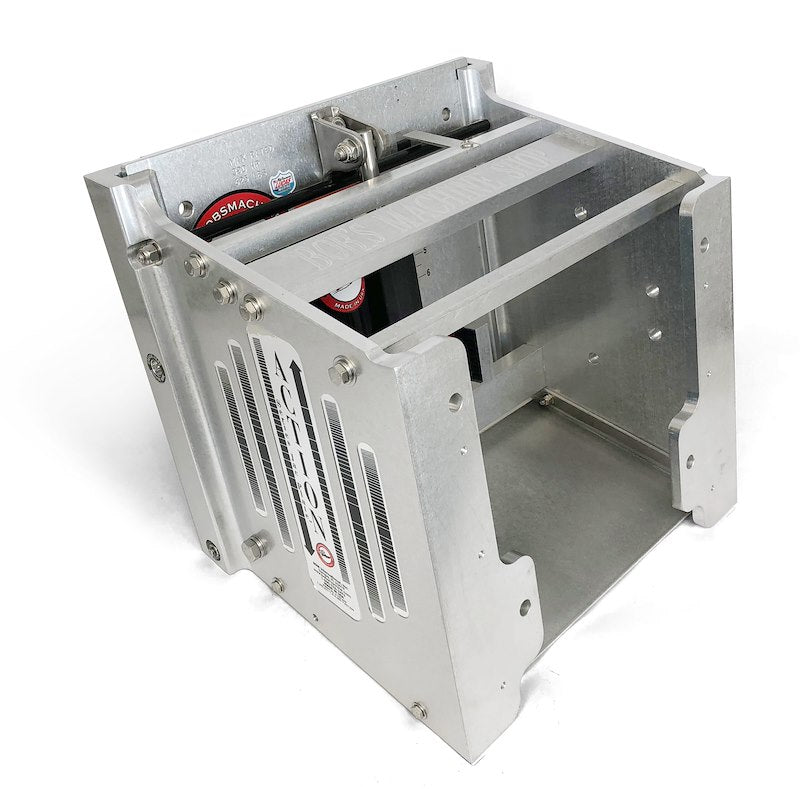

Bobs Machine Action Jac, 12-Inch Setback, Silver 100-112112-NOPC-NOSPN-NG

SKU: 100-112112-NOPC-NOSPN-NG
$2,245.57 Free Shipping
As low as $202.77/mo with shop
In Stock & Ready to Ship
Save 2% Today at Checkout
✓ Authorized Dealer
✓ Free And Fast Shipping
✓ Expert Product Support Call (888) 688-5869
Secure checkout
Ach Direct Debit American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa
Secure Checkout
Manufacturer Warranty
Easy 30-Day Returns
Expert Support

Product Description

Outboard Motor Jack Plate; Action Series Jac™; 12 Inch Setback; 6 Inch Hydraulic Rise; 1-1/2 Inch Rise Built Into Structure; 7-1/2 Inch Total Rise; 300 Maximum Horsepower; Silver; With Pump/ Wiring Harness/ Relays/ Rocker Switch

Restriction IconProp 65 WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Bob's Machine Shop's new hydraulic jack plate line, "Action Series Jack Plate™", offers new technology in the Jack Plate market. The first Bob's Jack plate to offer a pump inside the jack plate structure, saving boaters room inside the boat, and eliminating the need to mount a pump inside the boat. This is a great OEM feature to help save time in rigging. The new internal pump has a motor stronger than any other internal jack plate on the market currently, which will offer greater lifting speed, and strength with heavy outboards. All of the Bob's patented features from our standard series, automotive style grease nipples in the side rails, tension rods, and the famous Bob's Machine Shop Design, are all incorporated into the Action Series Jack Plate™. Action series support motors up to a 14-1/2 Inch mounting width. If wider we recommend our Extreme Gen 3 series jack plates.

Features & Benefits

  • Large Powerful Motor That Can Lift Heavy Outboards Under Full Power
  • Can Be Converted To Have Pump Inside Boat If Owner Desires To Change Styles
  • Automotive Grease Nipples For Easy Lubrication
  • Pre Drilled For Dual Side Mount Power Pole Brackets
  • Made In USA
  • Limited Lifetime Structural And 3 Year Pump Warranty

Attributes

  • Adjustment Type: Hydraulic
  • Setback: 12 Inch
  • Adjustment Rise: 6 Inch
  • Total Rise: 7-1/2 Inch
  • Maximum Horsepower: 300 Horsepower
  • Weight Capacity: 625 Pound
  • Rise Time: 6 Seconds
  • Mounting Position Adjustment: Not Applicable
  • Finish: Bare
  • Color: Silver
  • Material: Aluminum
  • With Rocker Switch: Yes
  • With Relay Harness: Yes
