Product Description

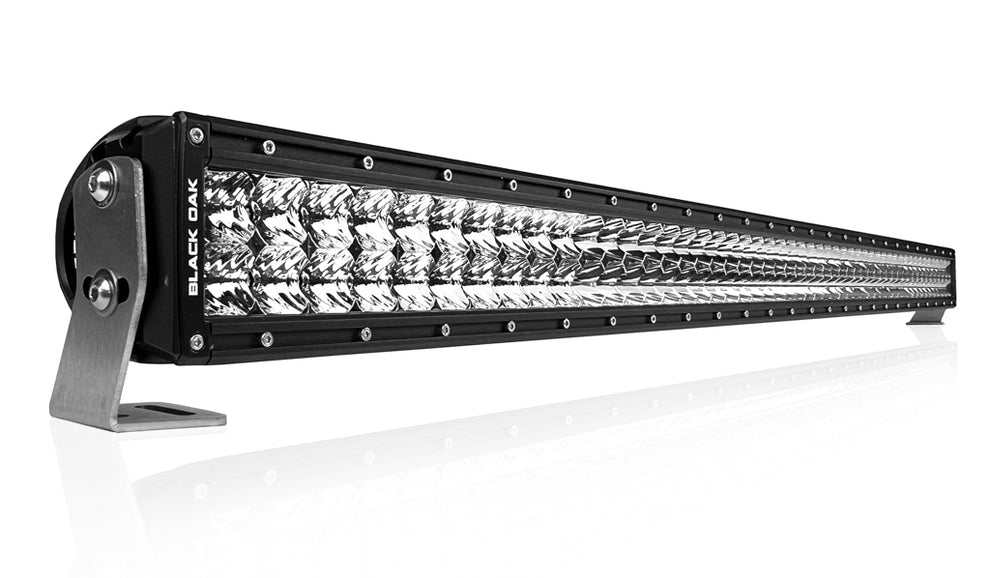

50 Inch Double Row LED Light Bar – Black Housing
Maximum Width. Unmatched Coverage. Built to Lead the Way.
When the trail disappears and the night takes over, you need lighting that commands the landscape. The 50-inch Double Row LED Light Bar delivers massive forward projection and expansive side-to-side coverage, making it ideal for full-size trucks, overland builds, and serious off-road applications. Designed for roof and windshield mounting, this full-width platform provides the visibility needed to confidently navigate open terrain, high-speed trails, and demanding job sites after dark.
Built around premium internal components and protected by a rugged black aluminum housing, this light bar is engineered to withstand vibration, harsh weather, mud, and relentless off-road abuse. Its double row configuration pairs high-output LEDs with precision optics to generate powerful long-range distance lighting and wide peripheral illumination — helping you spot obstacles sooner and drive with greater confidence.
Our most popular configuration — the 5-watt high-output Combo beam — blends intense center spot projection with wide flood optics for balanced, real-world performance when visibility matters most.
-
Lifetime Warranty
-
IP69K-Rated Housing – Fully sealed against salt, spray, pressure washing, and sun exposure
-
Premium CREE® and OSRAM® LED Chips – Engineered for maximum output and longevity
-
316 Stainless Steel Mounting Brackets – Marine-grade corrosion resistance
-
Ceramic-Coated Finish – Enhanced UV stability and corrosion protection
-
Military-Grade Breather – Equalizes pressure and prevents internal moisture buildup
-
Premium Lexan® Lens – Designed to resist fading, hazing, and yellowing over time
In the Box
- (1) LED Light Bar
- Stainless Mounting Brackets and Hardware
- Complete Wiring Harness
Premium Lexan Lens + IP69K Sealed Housing
Each light is built with an optical-grade Lexan lens—twice as strong as glass and engineered to resist fading or yellowing—paired with an IP69K-rated housing that blocks out salt, spray, sun, and high-pressure water. The result is a crystal-clear, fully sealed system designed to perform for years in the harshest marine or off-road environments.
Premium OSRAM® LEDs
High-efficiency OSRAM LEDs deliver exceptional brightness, clarity, and long-term reliability—engineered for demanding marine use and sustained high-output performance.
Complete Wiring Harness Included
Every light bar comes ready to install with a pre-terminated 12-gauge wiring harness, inline fuse, relay, and switch — plus heavy-duty stainless mounting brackets for a secure, professional-grade setup right out of the box.
Ceramic-Coated, Hydrex-Sealed Construction
Finished with a corrosion-resistant ceramic coating and sealed with our Hydrex gasket system for true IP69K performance. 316 stainless bolt-in mounts provide unmatched strength and durability in saltwater or off-road environments.
Precision Beam Patterns
Choose from spot, flood, or combo configurations for the perfect lighting spread. Our advanced reflector design ensures maximum throw distance and balanced side illumination for total visibility in any situation. Pro Tip: Combo is usually the best choice — it gives you the best of both worlds, with the spot pattern in the center for distance and the flood pattern on the ends for wide coverage.
Lifetime Warranty
Enjoy complete peace of mind knowing your light is backed by our industry-leading lifetime warranty. We stand behind every product we build — if it ever fails due to workmanship or materials, we’ll repair or replace it, guaranteed.
| Feature | 5 Watt | 3 Watt |
|---|---|---|
| Power & Performance | ||
| Total Wattage | 500 | 300 |
| Total Amp Draw | 21 | 20 |
| Operating Voltage | 12-30V DC | 12-30V DC |
| Raw Lumens | 66,000 | 37,00 |
| Color Temperature | 6,000 | 6,000 |
| LED Diode Qty | 100 | 100 |
| LED Chip | Osram | Osram |
| Beam Pattern | Combo, Spot, Flood | Combo, Spot, Flood |
| Beam Angle | Both - Combo 15° - Spot 45° - Flood |
Both - Combo 15° - Spot 45° - Flood |
| Mode | On/Off | On/Off |
| Dimmable? | Yes! (Separate dimmer module Required, NOT included) | Yes! (Separate dimmer module Required, NOT included) |
| Durability & Lifespan | ||
| Life Expectancy | 50,000 Hours | 50,000 Hours |
| Operating Temp | -40° to 145° F -40° to 62° C |
-40° to 145° F -40° to 62° C |
| Waterproof Rating | IP69K | IP69K |
| Warranty | Limited Lifetime | Limited Lifetime |
| Guarantee | 30 Day Money Back | 31 Day Money Back |
| Wiring & Installation | ||
| Cord Lead From Light | 16" | 16" |
| Wire Harness Included? | Yes | Yes |
| Wire Harness Length | 12' | 12' |
| Wire Gauge | 12 | 12 |
| Fuse Size | 25 Amp | 25 Amp |
| Connector Type | 2 Pin Deutsch | 2 Pin Deutsch |
| General | ||
| Weight | 18 Lbs | 18 Lbs |
| SKU - Combo | 50C-D5OS | 50C-D3OS |
| SKU - Spot | 50S-D5OS | 50S-D3OS |
| SKU - Flood | 50F-D5OS | 50F-D3OS |
Download Instructions Here.
