Product Description

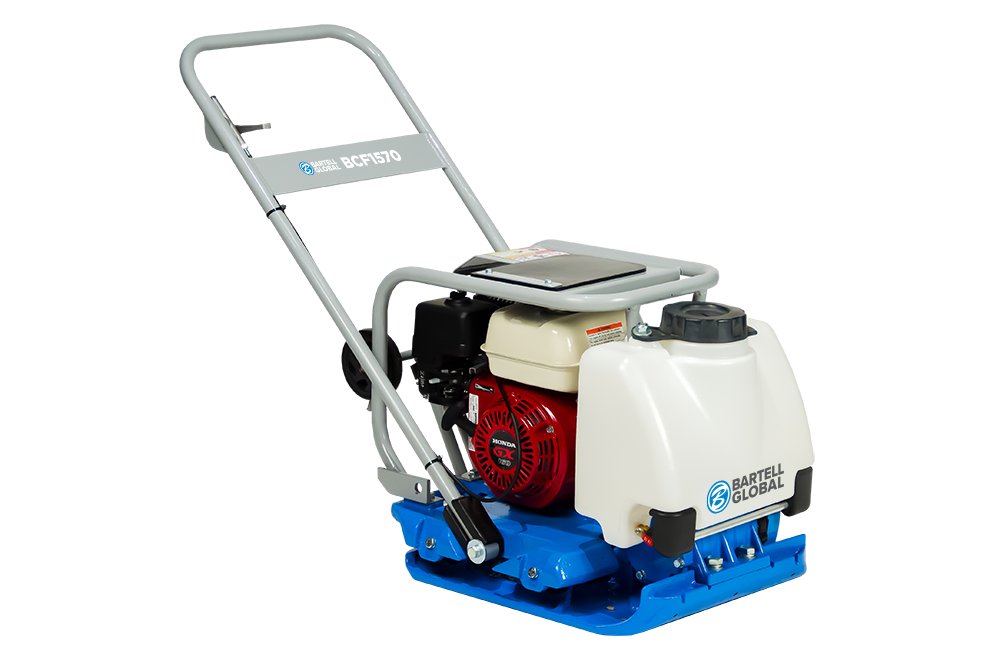

Bartell forward plates are innovative, hard-hitting, and low maintenance. The BCF1570 is our most popular forward compactor and is perfect for a wide range of compaction applications. The built-in water tank allows the compactor to be used on asphalt, and also allows for better dust control on dirt/soil.
- Robust throttle control mounted on handle for safe and convenient operator control
- Anti-vibration handle
- Folding handle for compact storage
- Retractable wheels flip down for built-in mobility
- Integrated lifting bale for safe loading and unloading
- Straight-edge plate design leaves no unreachable margins
- Sealed housing keeps debris from interfering with the belt
- Built-in removable water tank
- Optional urethane mat protects pavers and slabs from scratches and breakage
| GAS: Honda GX160 4.8hp (3.6kW) |
BATTERY: Vanguard 1.5kW 6.7hp (5kW) |
|
| Compaction Force | 3461 lbf, 15 kN,1570 kgf |
|
|---|---|---|
| Max Travel Speed | 82'/min (25m/min) | |
| Length | 44" (1118mm) | |
| Width | 20" (508mm) | |
| Height | 33" (838mm) | |
| Weight | 217 lbs (98kg) | 250 lbs (113.5kg) including battery |
| Plate Size | 20" x 21" (500mm x525mm) | |
