Product Description

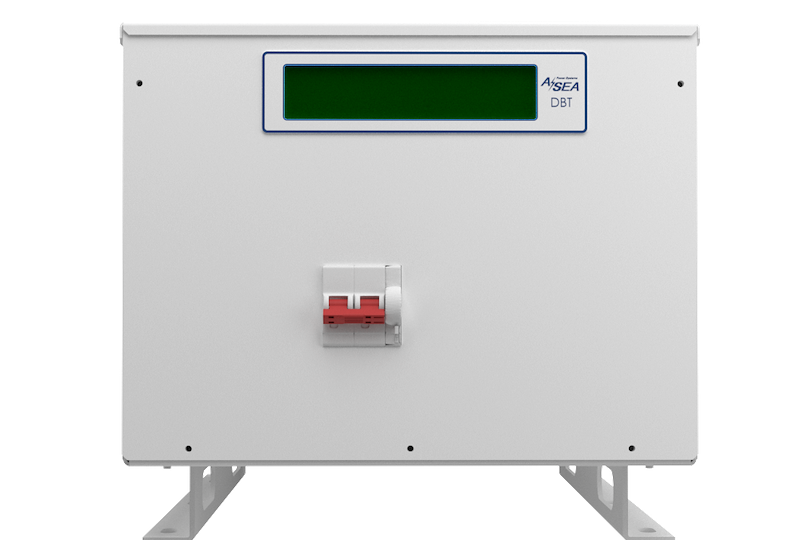

Marine Isolation Transformer; DBT15; Provides Precision Voltage Regulation To The Vessel And Delivering Complete Protection To Shore Power Problems; Dock Boost Transformer; Standard Auto-Restart; 15 kVA Power; 167 To 270 AC Input Volt; 57 To 70 Hz Frequency; 50 Amp Continuous Current; 115/ 230 AC Output Volt; 13.1 Inch Width x 18.7 Inch Depth x 13 Inch Height; Air Cooling; Floor Mount; Rev Stud Terminals
The Dock Boost Transformer (DBT) provides precision voltage regulation to the vessel, delivering complete protection from the most common shore power problems, including: brownouts, spikes, sags, and low-line or high-line voltage conditions from the dock power pedestal. The DBT also provides three levels of boost to keep your ship powered even when input voltages sag by 35 Percent. The DBT features a compact and lightweight footprint. By providing an industry recognized mounting pattern, it will fit as the perfect replacement for new construction or retrofit applications (direct replacement for the Charles Iso-Boost).
Features & Benefits
- Drop-In Replacement For The Charles Iso-Boost
- 3 Boosting Levels Utilizing Smart Tap System
- Lightweight And Compact At 127 Pound
- Industry Recognized Mounting Pattern
- Parallelable For Advanced Applications
- Limited 18 Month Warranty
Attributes
- Type: Dock Boost
- Power Output: 15 kVA
- Voltage: 167 To 270 Volt Input/ 115 To 230 Volt Output
- Dimensions: 13.1 Inch Width x 18.7 Inch Depth x 13 Inch Height
Name
Code
Description
ASEA POWER
ASE
Warranty Return Policy: Return for supplier inspection - Immediate credit issued upon return to KAO/NTP.
