Key Features
How The Armada Pro900 Cable Locator Compares To Other Underground Locating Options
Contractors and maintenance teams evaluating how to trace buried cables and valves usually face this question: should I stick with a basic single-frequency locator, step up to this dual/multi-frequency Pro900 for greater accuracy and connectionless tracking, or invest in a professional-grade utility locator with GPS mapping for large-scale utility work?
| Feature | Basic Single-Frequency Locator | Armada Pro900 Advanced Digital Cable Locator | Professional-Grade Utility Locator With GPS Mapping |
|---|---|---|---|
| Frequencies | One frequency, limited accuracy across conditions | Three signals: 2 kHz and 33 kHz direct plus 175 kHz clamp/broadcast, plus passive 50/60 Hz | Multiple frequencies plus GPS-referenced mapping |
| Tracking Methods | Typically direct connect only | Two connectionless methods plus direct connect | Similar multi-method tracking, often with digital record-keeping |
| Depth/Range | Limited depth accuracy, shorter range | Tracks to about 8 ft deep, direct connect up to 5,000 ft | Comparable or greater range, built for large utility networks |
| Price Point | Lower cost, less capability | Around $1,099-$1,324 | Often $2,000 or more for full utility-grade systems |
Product Description
How The Armada Pro900 Cable Locator Compares To Other Underground Locating Options
Contractors and maintenance teams evaluating how to trace buried cables and valves usually face this question: should I stick with a basic single-frequency locator, step up to this dual/multi-frequency Pro900 for greater accuracy and connectionless tracking, or invest in a professional-grade utility locator with GPS mapping for large-scale utility work?
Here's the honest comparison:
| Feature | Basic Single-Frequency Locator | Armada Pro900 Advanced Digital Cable Locator | Professional-Grade Utility Locator With GPS Mapping |
|---|---|---|---|
| Frequencies | One frequency, limited accuracy across conditions | Three signals: 2 kHz and 33 kHz direct frequencies plus 175 kHz clamp/broadcast, and passive 50/60 Hz AC detection | Multiple frequencies plus GPS-referenced mapping for utility-grade documentation |
| Tracking Methods | Typically direct connect only | Two connectionless methods (inductive antenna and inductive clamp) plus direct connect | Similar multi-method tracking, often with digital record-keeping |
| Depth/Range | Limited depth accuracy, shorter range | Tracks conductors to about 8 ft. deep, direct connect reach up to 5,000 ft., unlimited with broadcast leapfrogging | Comparable or greater range, built for large utility networks |
| Interference Rejection | Basic filtering, prone to AC noise | Digital reception filtration eliminates unwanted AC noise and interference | Advanced filtering similar to or exceeding the Pro900 |
| Price Point | Lower cost, less capability | Around $1,099-$1,324, well under $2,000+ locators with comparable single-frequency capability | Often $2,000 or more for full utility-grade systems |
| Live Line Detection | Often not included | Passive 50/60 Hz mode identifies live electrical power cables without connecting to them | Similar passive detection plus additional utility documentation features |
| Best Suited For | Occasional, simple locating tasks | Irrigation, landscape lighting, utility, and facility maintenance applications needing accurate, connectionless tracing | Large-scale utility mapping and documentation projects |
Why The Armada Pro900 Cable Locator Is Worth The Investment
This isn't just a single-frequency locator, it's a multi-frequency, multi-mode tracking tool, giving contractors the accuracy of professional-grade locators at a fraction of the typical price for comparable single-frequency units.
The Pro900 specifically addresses the needs of contractors and maintenance teams working with irrigation, landscape lighting, utility, and facility maintenance systems who need reliable tracing without the cost or complexity of a full utility-grade GPS mapping system.
Turns Guesswork Into Precise, Interference-Free Tracing. Digital reception filtration eliminates unwanted AC noise and interference, delivering crystal-clear signal reception even near power panels and transformers, so technicians can trace buried conductors accurately instead of fighting through electrical noise.
Built For Flexible, Safe Locating
- Three signal application methods, including two connectionless options, allow for safer tracing without needing to disconnect service
- The inductive clamp enables locating without a direct connection to a wire, while the inductive antenna scans a dig area for possible wires, cables, or metallic pipes
- Passive 50/60 Hz AC detection identifies live electrical power cables without connecting to them
Engineered For Accuracy And Durability
- Sealed controls and display improve durability and reliability in field conditions
- The triangulation method for depth determination helps technicians accurately gauge how deep a buried conductor sits
- A backlit LCD display and membrane switch technology keep controls readable and responsive in varied lighting conditions
Real Savings
- Priced well under $2,000, the Pro900 delivers multi-frequency capability that comparable single-frequency locators charge a premium for
- Connectionless tracking modes reduce the risk of accidental damage or downtime from disconnecting live cables
- Accurate depth and path tracing reduces the risk of costly digging errors or accidental utility strikes
- Free shipping and no sales tax through Summit Forge Supply keeps the total cost down compared to buying elsewhere and paying tax and freight separately
The Bottom Line Contractors and maintenance teams who need accurate, connectionless tracing of buried cables and valves can't get the same versatility from a basic single-frequency locator. The Armada Pro900 is built with three tracking frequencies, connectionless inductive modes, and digital interference filtering, so it delivers professional-grade locating accuracy without the cost of a full utility-grade system. For anyone tracing irrigation lines, electrical cables, or lost valves, this is the locator built to find them.
- Quickly and accurately locates cable for sprinkler systems, CATV, electrical, telephone, and lighting
- Digital signal and noise rejection to eliminate unwanted AC noise
- Backlit LCD screen with battery life indicator and full digital controls for signal tracking
- Inductive antenna and IC4 inductive clamp inject 175 kHz signal into cable with no need to disconnect service

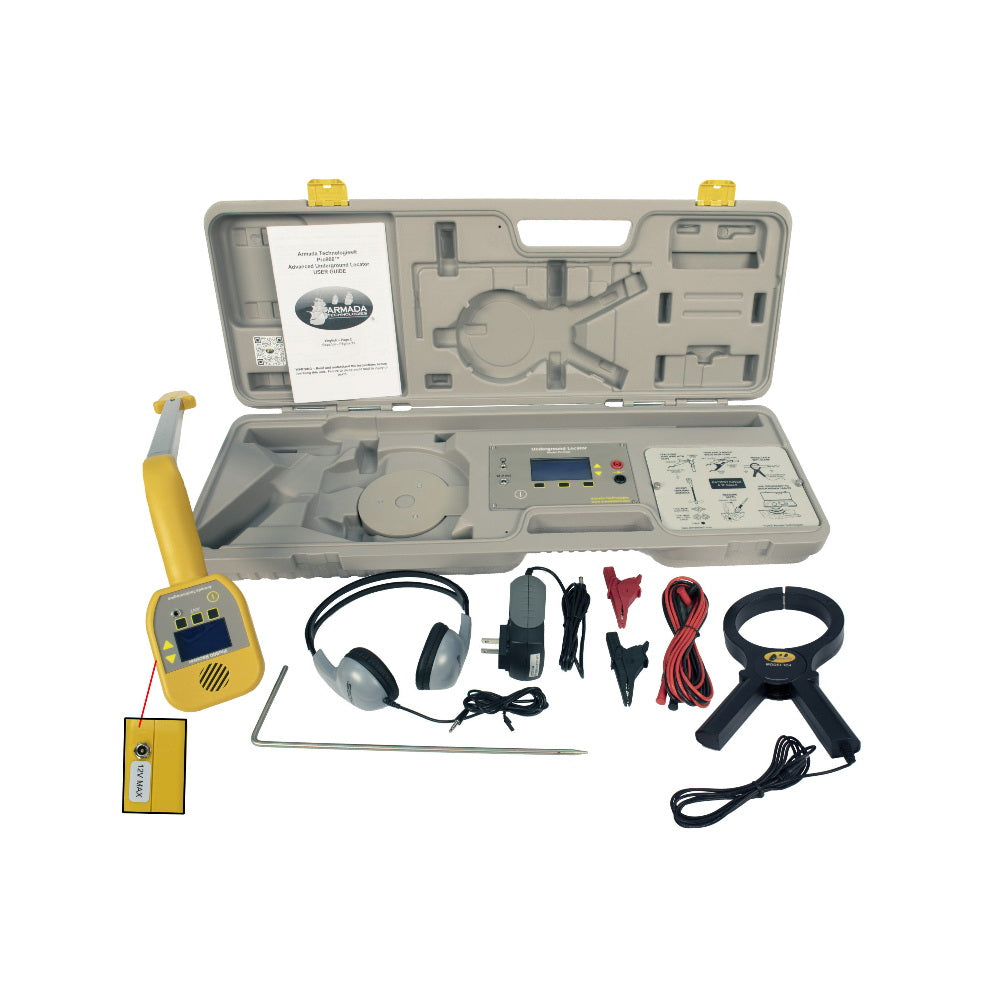

- Includes case with transmitter, receiver wand, direct connect leads, inductive clamp, ground stake, AC adapter, and stereo headset
- Transmitter can be operated on AC power or eight D alkaline batteries
- Receiver wand requires one D cell battery (not included)
Full Spec Sheet
| Model | Pro900, GWG311402 |
| Frequencies | 2 kHz and 33 kHz direct, 175 kHz clamp/broadcast |
| Passive Detection | 50/60 Hz AC |
| Locating Depth | Up to 8 ft |
| Direct Connect Range | Up to 5,000 ft |
| Power | AC or 8 D alkaline batteries (transmitter), 1 D cell (receiver, not included) |
| Includes | Case, transmitter, receiver wand, direct connect leads, inductive clamp, ground stake, AC adapter, stereo headset |
