Product Description
BMS - Battery Management System; Zeus®; Designed For 12 To 48 Volt Systems; Used To Optimize Charging Profile For Specific Battery Type And Protects Battery/Alternator Investment; 12 Volt/ 24 Volt/ 36 Volt/ 48 Volt System Voltage; 7-1/2 Inch Length x 8.2 Inch Width x 2.4 Inch Height; Black; IP66 Waterproof; P-Type And N-Type Compatible; NMEA 2000/ RJ45/ 2 CAN Connections; Password Protected Bluetooth Connectivity; With 6 Feet Battery Wiring Harness/ 6 Feet Alternator Wiring Harness/ 2 Thermistors
ARCO’s Zeus is the only high-energy external alternator regulator to feature Bluetooth (no additional equipment required) and a native app (on IOS and Android) allowing for easy installation and configuration. With its intuitive interface, you have access to information on your system that you never had before. This information allows you to regulate your system and optimize your battery charge and alternator output resulting in a safer experience while protecting your energy system investment. Zeus is the only alternator regulator that can read 2 shunts at a time (the battery shunt and alternator shunt). This feature enables Zeus to react to inputs from the battery current/temperature and alternator current/temperature. Through the ARCO Zeus application, you are in good hands as your data is automatically logged and can be shared with your technician to troubleshoot your system when remote. You can even import your remote technician’s configurations. Zeus optimizes battery charges for 12 to 48 volt systems. Whether you are using Lithium (LiFePo4) batteries to lead-acid Deep Cycle batteries, Zeus has you covered with its pre-set battery libraries and configurable menus to optimize your charging profiles. Zeus manages a complex set of inputs by giving you easy to understand options.
Features & Benefits
- Zeus Comes With Both A Battery Wiring Harness And Alternator Wiring Harness As Well As 2 Thermistors And The NMEA 2000 Kit
- Native ARCO Zeus Application On Mobile And Tablet For Easy To Use And Intuitive Dashboard, System Information, And A Myriad Of Pre-Set And Customizable Regulator Settings
- State Of Charge: Zeus Is The First To The Market Regulator With Built In State Of Charge Which Eliminates The Need For An Additional State Of Charge Monitor
- Generator Mode: Is A First To Market Advanced Feature Of ARCO’s Zeus Is That It Can Turn Your Engine Into A Dedicated Generator With A Press Of The Button
- Pre-Set Battery Libraries: Whether You Are Using Lithium Batteries To Lead-Acid Deep Cycle Batteries, ARCO Zeus Has You Covered With Its Growing Pre-Set Battery Libraries
- Data Logging And Sharing: Log Your Alternator’s Performance And Settings Wirelessly And Automatically
- CAN Bus And NMEA 2000-Integrated Networks Enable You To Transmit Relevant Data To RV Navigation Systems, Multifunction Displays, Or Marine Chart Plotters
- Compatible With All Voltage Systems: 12 To 48 Volt Compatible
- Limited 2 Year Warranty
Attributes
- Compatibility: 12 To 48 Volt Systems
- Input Voltage: 12/ 24/ 36/ 48 Volt
- Dimensions: 7-1/2 Inch Length x 8.2 Inch Width x 2.4 Inch Height
- Color: Black
- Waterproof: IP66/ IP67 Waterproof

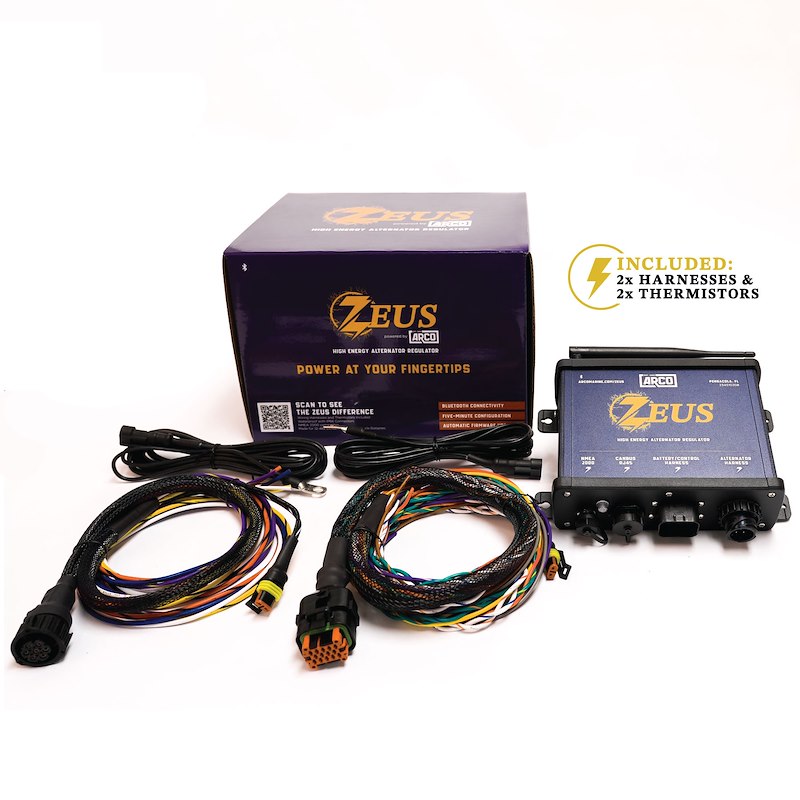

- Includes: 6 Feet Battery Wiring Harness/ 6 Feet Alternator Wiring Harness/ 2 Thermistors
Name
Code
Description
ARCO MARINE
A4R
Warranty Return Policy: Please contact supplier for RGA prior to return. Item must be sent to supplier for inspection. Contact information is KENNY@ARCOMARINE.COM or 850.455.5476.
Estimated 4-6 Weeks from return date for credit.
Estimated 4-6 Weeks from return date for credit.
