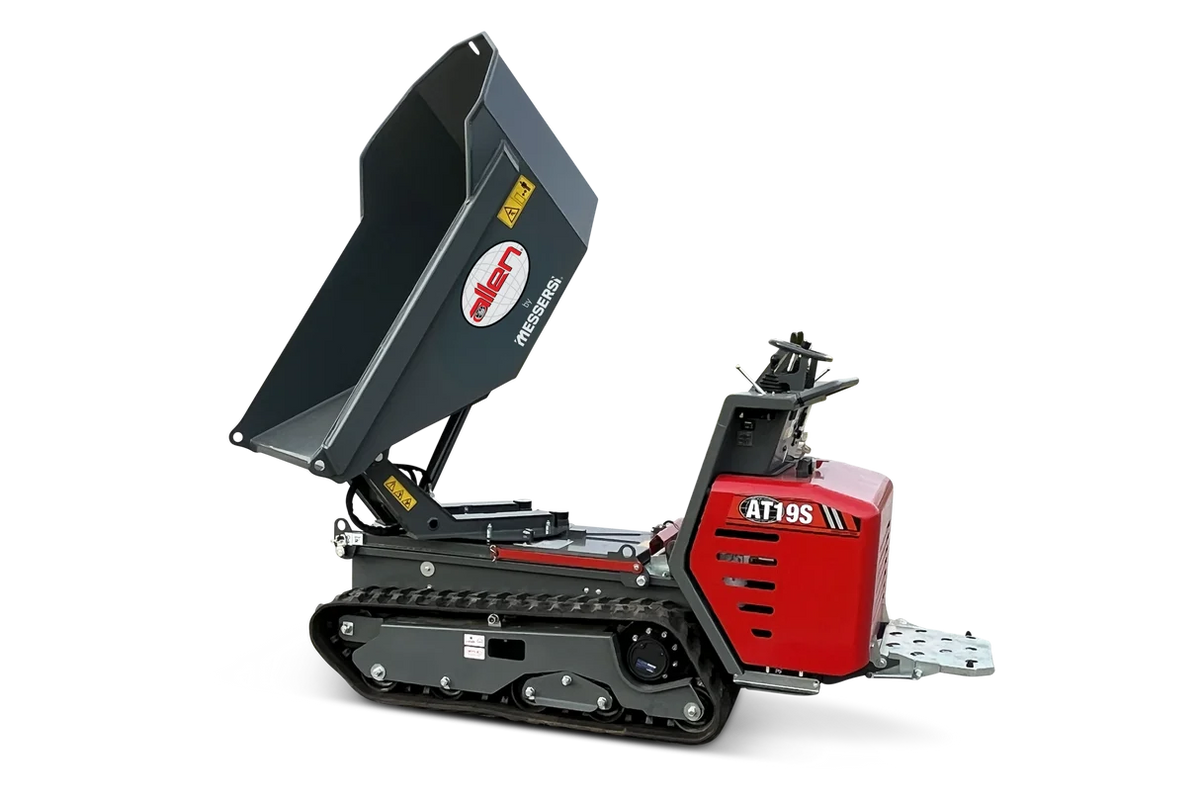

Allen Power Buggy 19CF Poly Bucket Swivel Kubota Diesel Elec Start Mud Tracks AT19S

The AT19S is the largest all-new Allen track buggy. Designed for professional contractors, this reliable equipment boasts precise maneuvering capabilities and top-notch performance.

The sturdy steel bucket with a 90-degree dump angle and 180-degree pivoting dump ensures accurate material placement, allowing you to achieve superior results every time.

ENGINE Kubota D902 / 898 cc
HORSEPOWER CLASS 21 hp / 16 kW
STARTER Electric
FUEL TYPE Diesel
FUEL CAPACITY 4 gal / 15.14 L
TOP SPEED WORK: 4 mph TRAVEL: 6 mph / WORK: 6 kph TRAVEL: 10 kph
PAYLOAD 2,900 lb. / 953 kg
BUCKET CAPACITY 19 cu. ft. / 0.54 cu. m
DUMP ANGLE 90º
DUMP/RETURN SPEED EMPTY 8 seconds
PIVOT ANGLE 180º
WEIGHT 2,180 lb. / 990 kg
DIMENSIONS (L X W X H) 101 x 38.5 x 52 in / 257 x 98 x 132.1 cm

AT19S Spec Sheet

AT19S Safety & Operations Manual

AT19S Parts Manual
