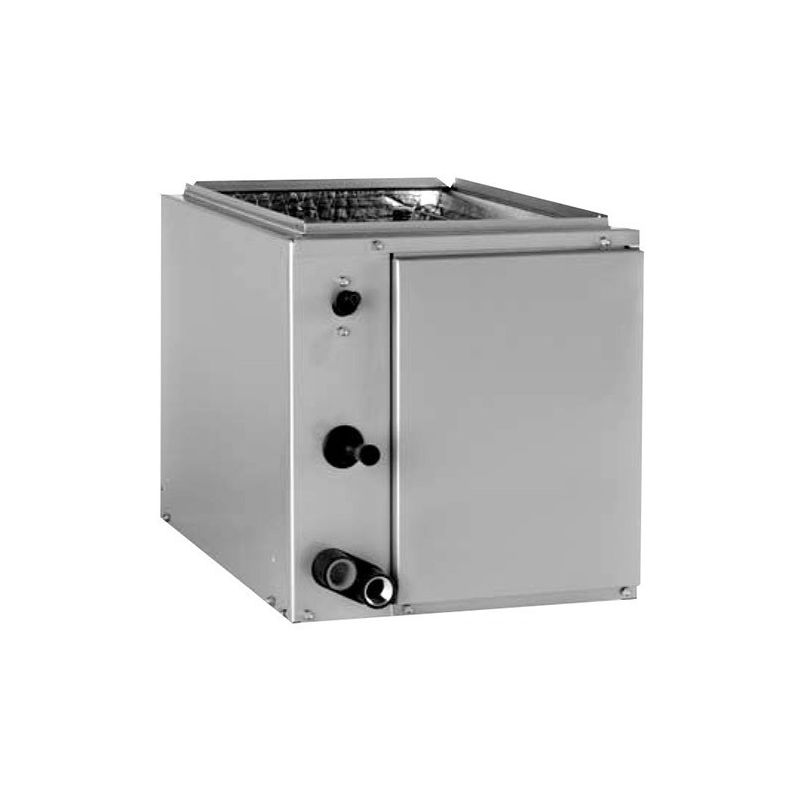

ACiQ 5 Ton 24.5" Width Vertical Evaporator Coil - Cased - R410A END4X61L24A

Description

ACiQ takes pride in its ability to provide a high-quality system, including all system components. Leaving no exception, the END4X61L24A vertical coil is a superior option for almost any application while maintaining the entire unit's efficiency with a factory-integrated TXV kit for enhanced energy optimization.

QUICK FACTS

  • 5 ton vertical coil
  • Works in both upflow and downflow applications
  • Compatible with both AC-only and heat pump condensers
  • Factory-installed TXV kit for enhanced energy optimization
  • Sturdy and compact design
5 Tons

The ACiQ END4X61L24A is rated for up to 5 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.

Warranty

ACiQ offers a 10 year parts warranty on their coils when they are installed following your state and local codes, as well as the system is paired with a certified system matchup. Please note that in order to obtain the entire length of this warranty, the entire unit must be registered through the manufacturer.

ACiQ 5 Ton 24.5" Width Vertical Evaporator Coil - Cased - R410A
Feature Spec
SKU END4X61L24A
Weight 84.000000
Manufacturer ACiQ
Equivalent

Carrier Equivalent: CNPHP2417ALA

Tempstar Equivalent: END4X61L24A

Bryant Equivalent: CMPVP6124ALA
Configuration Upflow / Downflow
Refrigerant R410A
Liquid Line 3/8"
Suction Line 7/8"
Tonnage 5 Ton
Style N-Coil
Certification UL Listed
Height 32 7/16"
Width 24 1/2"
Depth 21"
Warranty 10 Years Parts Warranty with Online Registration
