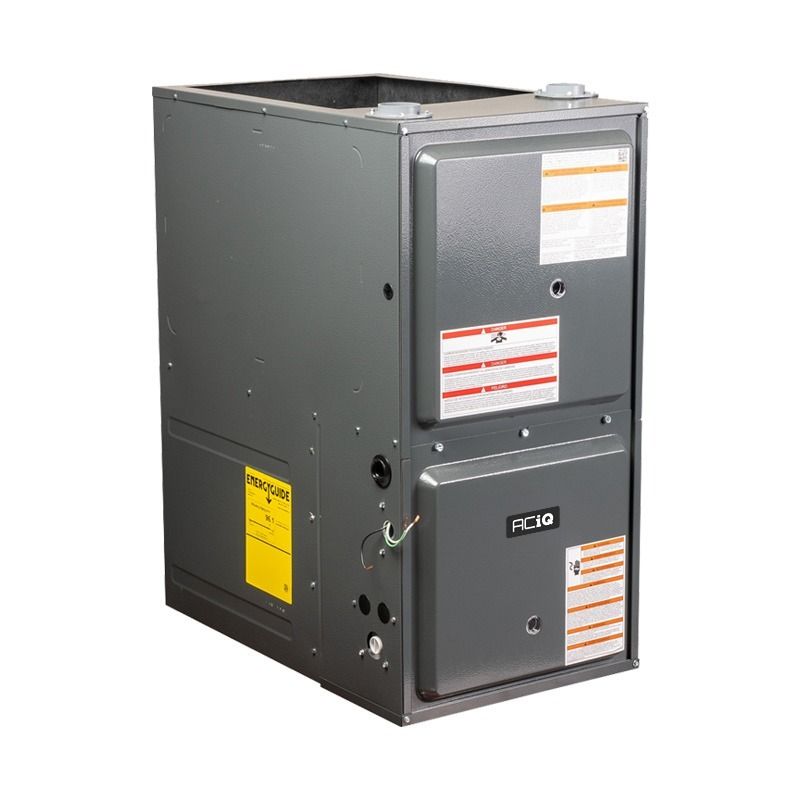

The ACiQ brand consistently brings efficiency and other cost-saving benefits and technology to their furnace. The AQ-GD9T960403BN gas furnace is no exception to ACiQ's ingenuity in design, bringing you comfort at a high efficiency for any downflow or horizontal application.
QUICK FACTS
- This furnace is ideal to heat a smaller house (depending on climate)
- 40,000 BTU 96% AFUE natural gas furnace
- Requires plastic/PVC flue venting
- Complies with Clean Air Act New Refrigerant Requirements
- Can be used in the downflow or horizontal orientation
- Can be converted to an LP furnace with an optional conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
40,000 BTU
Heating up to a smaller house in average environmental conditions, the AQ-GD9T960403BN ACiQ furnace has an input of 40,000 BTU's and an output of 38,400 BTU's (input X efficiency rating = output).
96% AFUE
The AQ-GD9T960403BN gas furnace is 96% efficient. This efficiency means that 4% of the fuel going into the furnace is lost out of the flue venting, while 96% of the fuel is actually used to heat your home. As a condensing furnace, this furnace will need to be vented with plastic or PVC flue venting. If you are looking for a furnace that requires metal flue venting, you would need an 80% efficient furnace.
Two Stage 9-Speed Furnace
With a two stage burner, the AQ-GD9T960403BN provides two heating outputs: one at a 60% heating output for warmer days and one at a 100% output for when you need the furnace most. The furnace also has a 9 speed ECM motor instead of an inefficient PSC motor. Both of these upgrades provide a better efficiency with a more stable output to better heat your home through all seasons of use.
Warranty
With installation that follows your state and local codes, the AQ-GD9T960403BN gas furnace comes with a 10-year parts and lifetime heat exchanger warranty when registered online through ACiQ.
Durability and Reliability
The outer casing on the AQ-GD9T960403BN gas furnace is heavy-gauge steel with enhanced insulated for better protection and lower air leakage and sound output, providing more comfort to your home. The new hot surface ignitor replaces the standing pilot light for a more efficient startup.
Installation and Maintenance
The cost-saving benefits of the ACiQ brand doesn't stop at efficiency. The AQ-GD9T960403BN ACiQ furnace can be installed in either the downflow or horizontal orientation, making this furnace an ideal choice for multiple installation applications. Naturally, the AQ-GD9T960403BN comes with natural gas valves built in. However, increasing its installation potential, the AQ-GD9T960403BN can be field converted with the LP conversion kit (found here, for an extra fee) if you need it to be propane. Not only does the ACiQ brand save you money on installation costs, but also with maintenance and warranty work. In the event of a rare warranty issue, the self-diagnostic control board alerts you and your serviceman what is wrong with the unit for most basic issues for a faster solution to almost any problem.
| 40,000 BTU 96% AFUE Two Stage Gas Furnace - Downflow / Horizontal |
| Feature |
Spec |
| SKU |
AQ-GD9T960403BN |
| Weight |
112.000000 |
| AHRI Certificate Number |
215225019 |
| Config Search |
Downflow/Horizontal |
| Exhaust Flue Requirement |
Plastic / PVC |
| Manufacturer |
Private Brand |
| Product Features |
New Refrigerant Compliant |
| Furnace Efficiency / AFUE |
96% |
| Heating BTU |
40,000 |
| Blower Motor |
9-Speed - ECM |
| Maximum CFM |
1200 |
| Configuration |
Downflow/Horizontal |
| Energy Star |
Yes |
| Electrical |
115 V. 1 Phase 60 Hz |
| Max Breaker Size |
15 Amps |
| Min. Breaker Size |
7.8 Amps |
| Burner Stages |
Two |
| Fuel Type |
Propane, Natural Gas |
| Height |
34.5" |
| Width |
17.5" |
| Depth |
28.75" |
| Warranty |
Lifetime Heat Exchanger, 10 Years Unit Replacement, and 10 Years Parts with Online Registration |
| Resources |
You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information |
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.
