ACiQ

ACIQ 2 Ton Extreme+ Ducted Air Handler - R454B ACIQ-24-PAH

SKU ACIQ-24-PAH
$2,546.15
ACIQ 2 Ton Extreme+ Ducted Air Handler - R454B ACIQ-24-PAH

Description

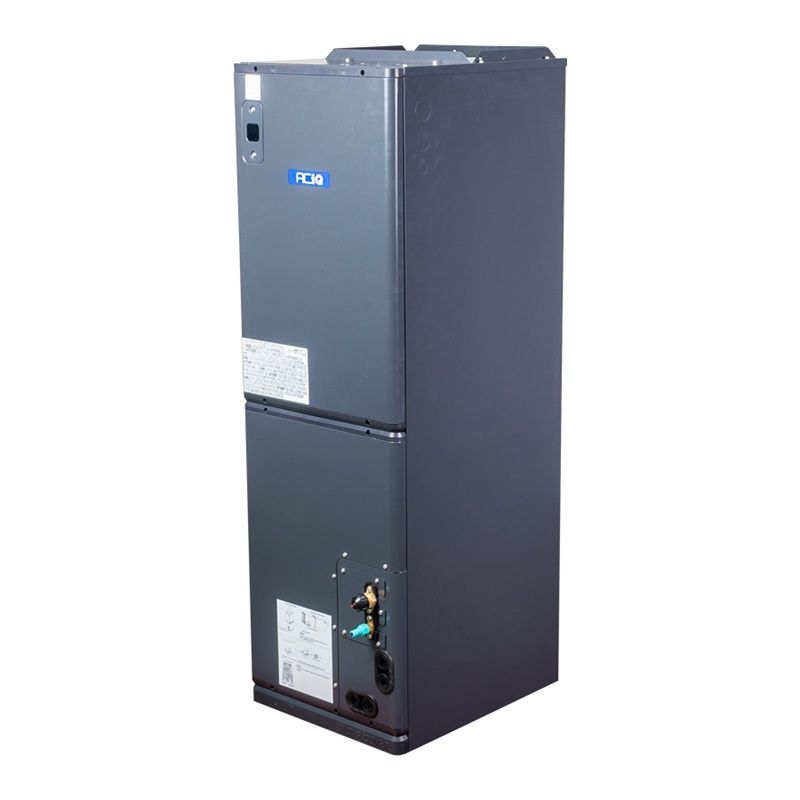

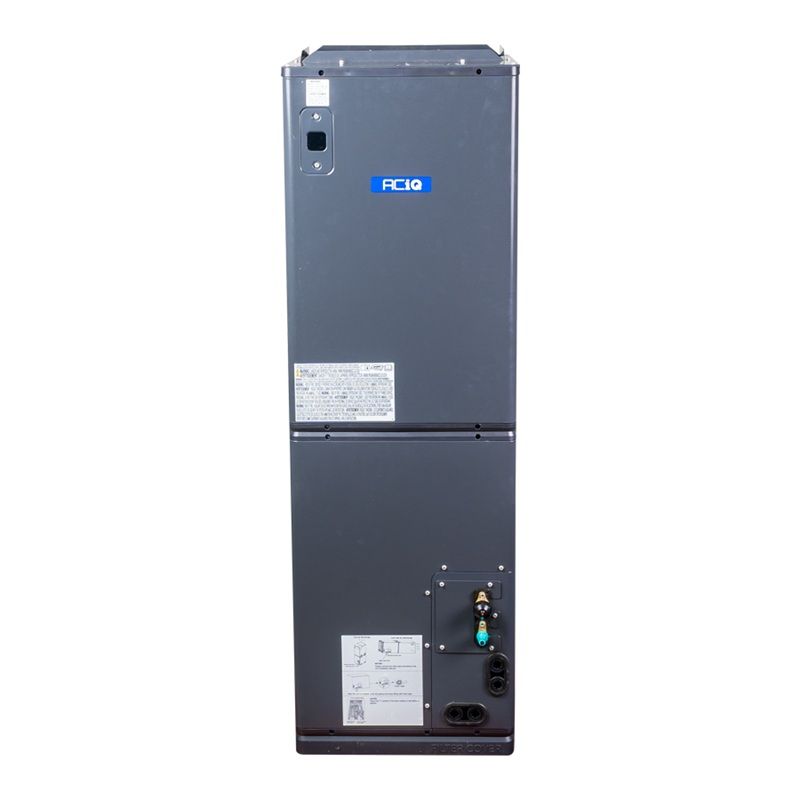

The ACIQ-24-PAH Extreme+ ducted air handler is one of the best multi-positional air handlers on the market today. Featuring a variable speed DC blower, communicating technology, and the best possible performance in any climate, comfort and efficiency levels hit extreme peaks well above the standard maximums from other typical air handlers. Your thermostat communicates with the inverter condenser outside and this air handler inside, telling the system when to self-adjust its BTU output in order to maximize efficiency while providing your desired level of comfort.

  • 2 ton high efficiency central ducted air handler
  • Compatible with any 24v thermostat
  • Variable speed DC blower

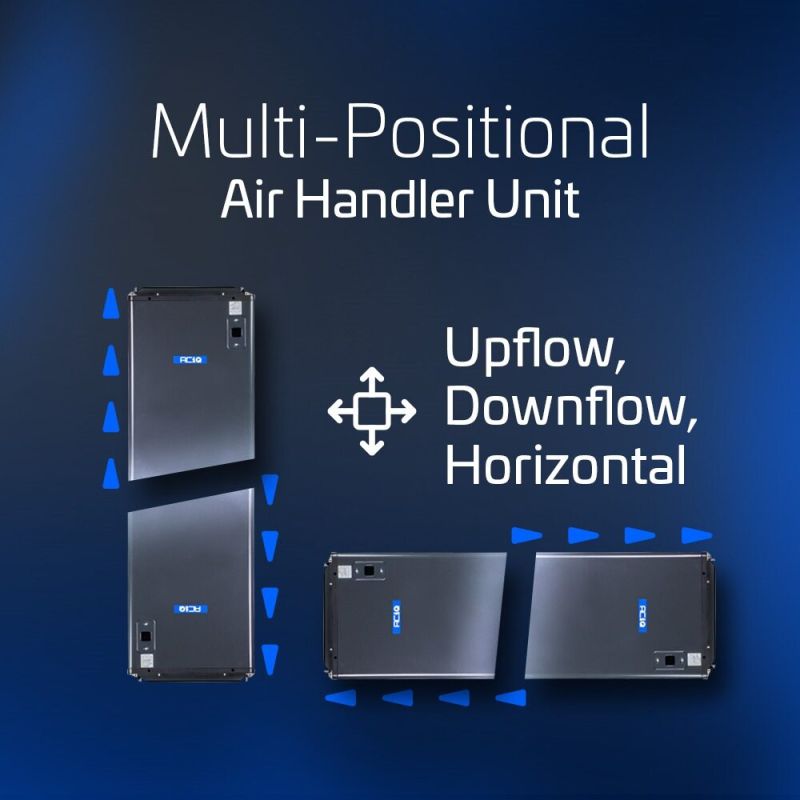

  • Multi-positional - Can be installed in upflow, downflow, or horizontal left/right orientations
  • Slim-fit cabinet size for easier installation
  • Higher-performance capabilities leading to better tax credit and rebate eligibility
  • Compatible with R454B refrigerant

Installation and Maintenance

Installation is very similar to installing any replacement air handler. Your technician will make electrical, refrigerant, thermostat, and communication connections as well as connect the air handler to your return and supply ductwork. The ACIQ Extreme+ central ducted air handler is multi-positional (upflow, downflow or horizontal) and utilizes a narrower cabinet than other air handlers, making it a very versatile, easy-to-install air handler. Any 24v thermostat with 2 stages of heating can control the system. Supplemental electric heat kits are available as a backup heat source for the coldest days of the year. If any maintenance is required, the intelligent control board in the air handler displays fault codes in case any part of the system experiences issues.

Please note - in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle. To use straight electric heating, an electric heat kit is necessary and is also available at an additional cost.

ACIQ 2 Ton Extreme+ Ducted Air Handler - R454B
Feature Spec
SKU ACIQ-24-PAH
Weight 154.760000
Manufacturer ACiQ
Cooling BTU 24,000 BTU
Heating BTU 24,000 BTU
Maximum CFM 824
Decibel Level (dBA) Up to 47.5 Decibels
Electric Backup Heat Capabilities (Optional) 5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts
Configuration Multi-Positional
Refrigerant R454B
Liquid Line 3/8"
Suction Line 3/4"
Electrical 115V/208V/230V, 1 Phase, 60 Hz
Electric Phase Filter Single Phase
Max Breaker Size 15 Amps
Min. Breaker Size 5.5 Amps / 3.5 Amps
Tonnage 2 Ton
Mini Split Type Multi-Positional
Zone Compatibility Single Zone
Connection Flared
Height 49.72"
Width 14.49"
Depth 21.50"
Warranty 12 Years Compressor and 7 Years Parts with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING
