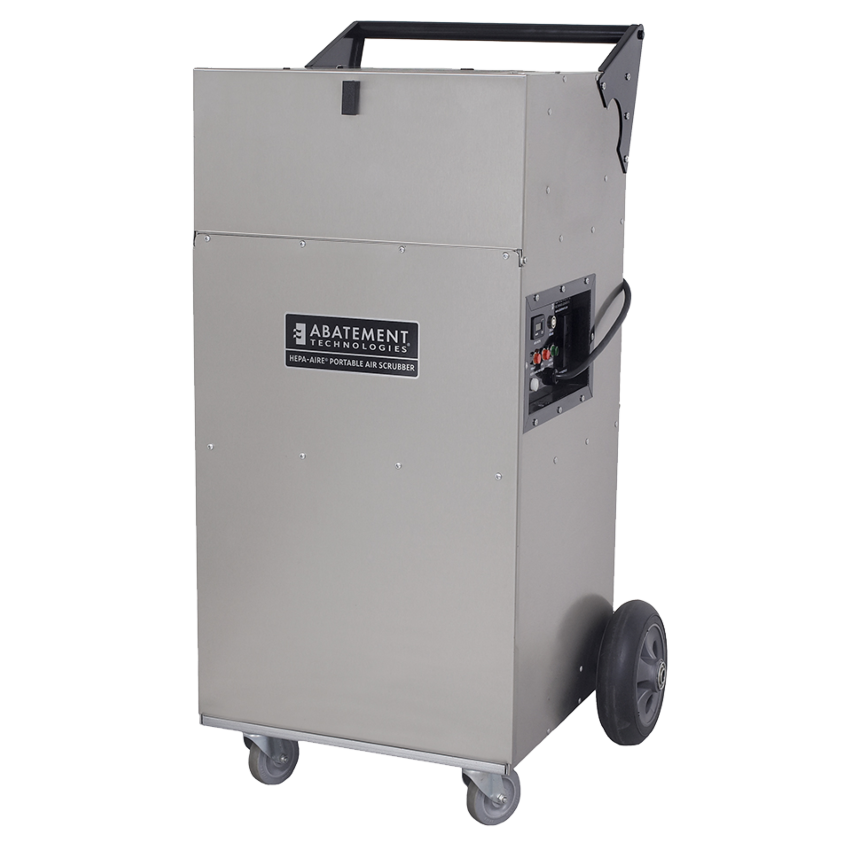

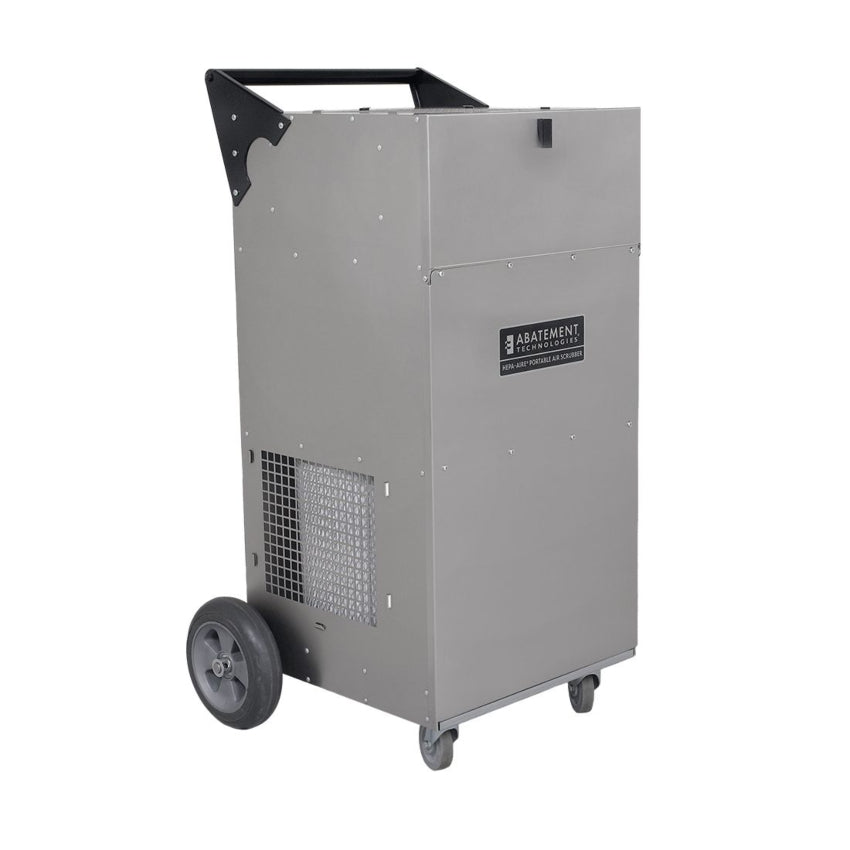

Abatement HEPA-AIRE® Portable Air Scrubber PAS1200UV

Compact, Upright Design Fits Easily into Tight Spaces

The full-feature HEPA-AIRE PAS1200UV Portable Air Scrubber from Abatement Technologies® is the stainless-steel counterpart to our PRED1200UV model, with similar performance characteristics. The PAS1200UV features variable airflow control from 300 cfm to 900 cfm. Multiple units can be daisy-chained on one 15-amp circuit via the GFCI-protected duplex receptacles. The PAS1200UV is capable of maintaining 6 ACH in spaces up to 7,500-9,000 ft³ at peak-rated airflow.

The PAS1200UV Portable Air Scrubber is designed to employ up to four filter stages to remove potentially hazardous airborne particles from healthcare construction, maintenance, and renovation zones

• First stage pre-filter - Inexpensive 1"-deep pre-filter for larger particles
• Second stage pre-filter - 2"-deep pleated filter for medium-sized particles
• Third stage pre-filter (optional, not included with the unit) - 2"-deep high-capacity carbon filter for gases and odors
• Final stage - Tested & certified 99.97%-efficient metal-frame HEPA filter

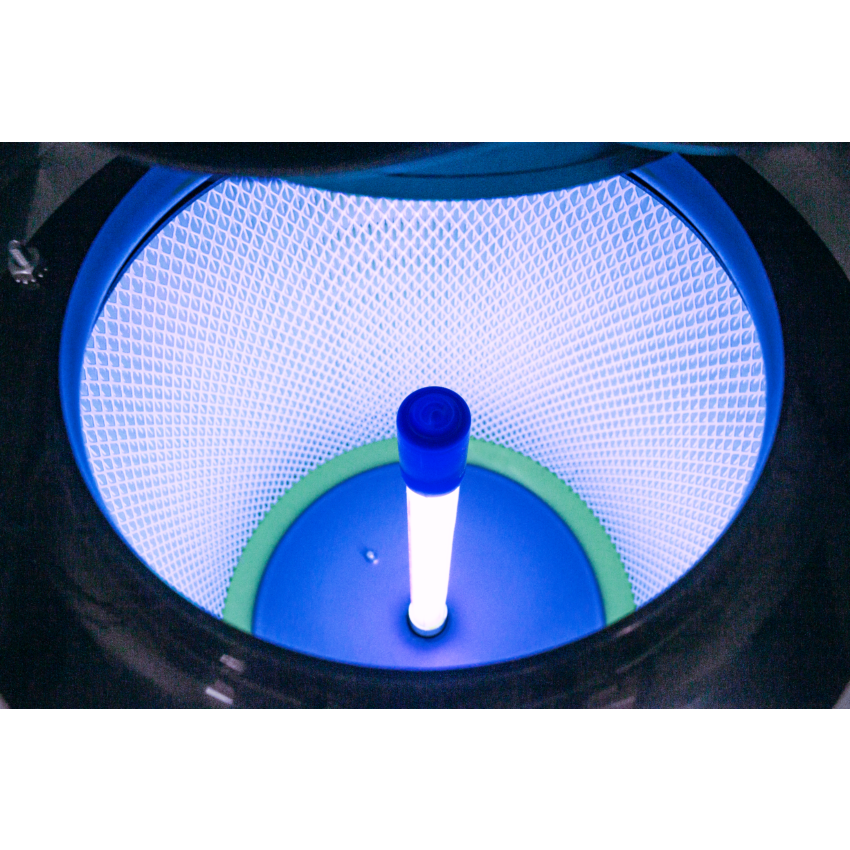

UV Lamp: Ultraviolet germicidal irradiation lamp

 Features of the HEPA-AIRE PAS1200UV Portable Air Scrubber include

• Easy to Transport - 8” non-marking rear wheels with smooth tires roll quietly and protect floors
• Powerful Blower - High-efficiency airfoil blower provides 6 ACH @ 7,500-9,000 ft³
• Maneuverable in Small Spaces - Front swivel casters allow the PAS1200 to “turn on a dime” in tight spaces
• Solid-Rivet Aircraft Construction - Strong leak-resistant cabinets
• User-Friendly Controls - A complete array of convenient controls enables users to continuously monitor the operating status of the PAS1200UV
• Safety First - NRTL certified to conform to UL507 and CSA 22.2 safety standards
• Easy 'No Tools' Pre-Filter Access - Fast filter changes
• Separate Pre-Filter Compartments - Less bypass, helps prevent premature HEPA loading
• 230 VAC/50 Hz Export Model - PAS1200TF runs on 230 Volt/50 Hz current (1,000-1,250 m³/hr.)

 Filters Pollutants Using up to Four Stages of Filtration

The PAS1200UV uses a special backward-curved blower and high-speed motor to pull pollutants through up to four stages of filtration.

Recessed Control Panel

The recessed control panel provides all controls in one location.

Control Panel Features:

• Variable speed control
• ‘Power On’ indicator lamp
• ‘Replace Pre-filter’ indicator lamp
• ‘Replace HEPA’ indicator lamp
• Hour meter
• Male power receptacle
• Pop-out circuit breaker

All Abatement HEPA-AIRE® units have been tested by a Nationally Recognized Testing Laboratory (NRTL) and carry the marks certifying that they comply with applicable OSHA, UL and CSA electrical safety standards. Filters meet UL900 flammability standards.

• Features variable airflow control from 300 cfm to 900 cfm
• High-efficiency airfoil blower provides 6 ACH @ 7,500-9,000 ft³
• Front swivel casters allow the PAS1200UV to “turn on a dime” in tight spaces
• Strong leak-resistant cabinets and user-friendly controls
• Ultraviolet germicidal irradiation lamp

Download Product Information
