Key Features
How The US Stove US5522-W Compares To Smaller-Hopper Pellet Stove Options
Homeowners evaluating how to heat the largest spaces with pellet fuel usually face this question: should I choose a smaller-hopper stove like the Ashley AP5780E or US Stove 5040E for moderate coverage, or select this US5522-W for the largest hopper on the market and app-based remote control for the biggest homes.
| Feature | Ashley AP5780E / US Stove 5040E | US Stove US5522-W |
|---|---|---|
| Coverage | 1,800-2,200 sq ft | Up to 3,000 sq ft |
| Hopper Capacity | 45-46 lb hopper | 170 lb hopper, the largest on the market |
| Burn Time | Up to 32-40 hours between fillings | Up to 80 hours on the lowest setting |
| Remote Control | IR remote control | Wi-Fi and Bluetooth control through the US Stove App |
| Best Suited For | Moderately sized homes up to 2,200 sq ft | Large homes up to 3,000 sq ft wanting maximum hopper capacity and app control |
Product Description

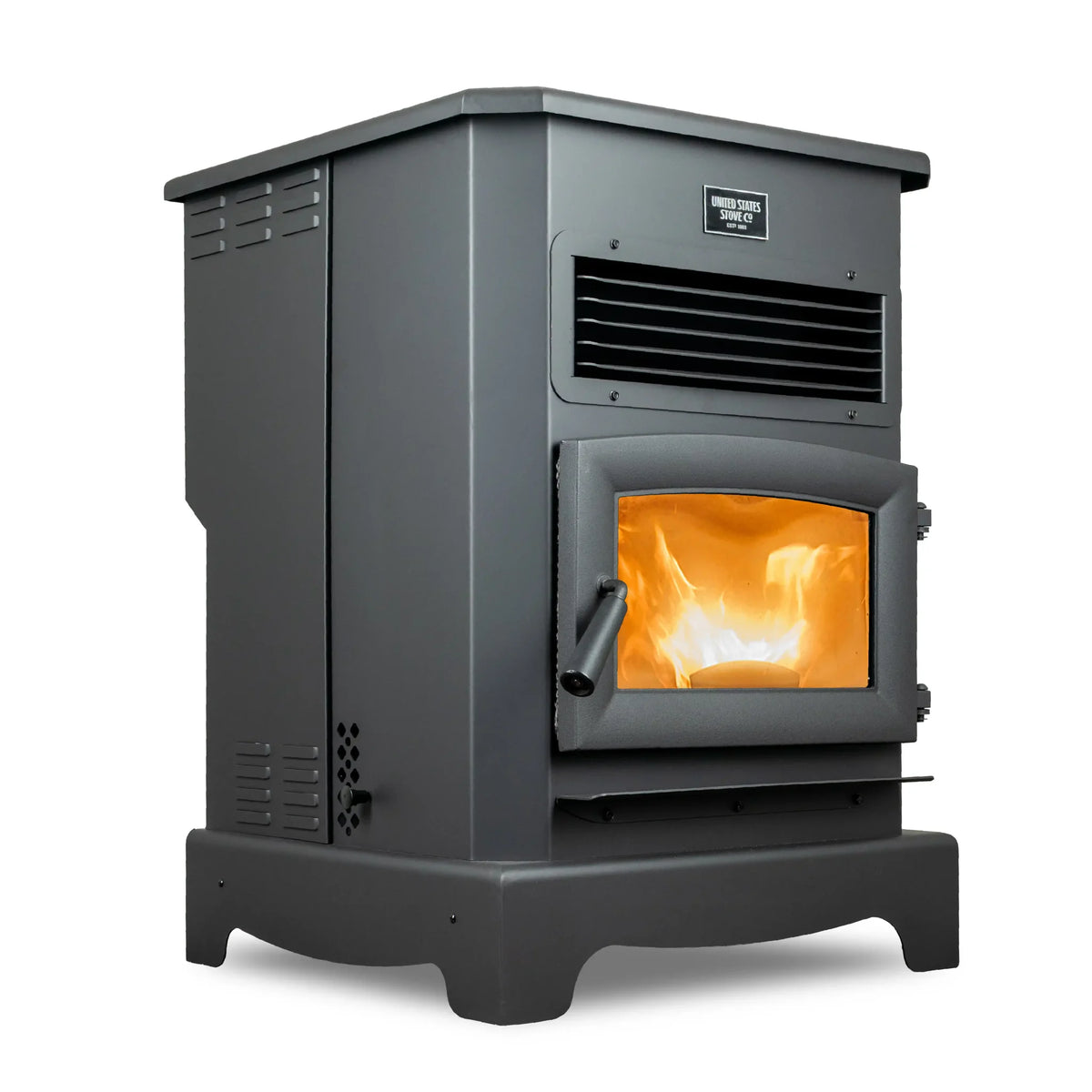

The US Stove Company US5522-W wood pellet stove is a modern update to the classic KP130 wood pellet stove, providing powerful heat up to 3,000 sq. ft. The US5522-W incorporates a 20% larger 170 lb. pellet hopper, the largest hopper on the market, for up to 80 hours of continuous warmth and comfort on the lowest setting. The advanced AURORA diverse airflow burner system provides a beautiful flame and an unmatched increase in airflow and heat output, delivering up to 33,000 BTUs. This combination of classic styling, improved heat output, significant heating efficiency, and a larger hopper capacity continues the wood pellet heating industry leader legacy of the KP130. Smart Stove Technology gives the US5522-W Wi-Fi and Bluetooth capability, with wireless control utilized through the US Stove App for full remote operation and heat adjustment. Automated pellet feeding ensures consistent heat, and the sleek, durable design fits modern home interiors. Wood pellet fuel is a carbon neutral green energy and the most environmentally friendly fuel on the market today.
How The US Stove US5522-W Compares To Smaller-Hopper Pellet Stove Options
Homeowners evaluating how to heat the largest spaces with pellet fuel usually face this question: should I choose a smaller-hopper stove like the Ashley AP5780E or US Stove 5040E for moderate coverage, or select this US5522-W for the largest hopper on the market and app-based remote control for the biggest homes.
Here's the honest comparison:
| Feature | Ashley AP5780E/US Stove 5040E | US Stove US5522-W |
|---|---|---|
| Coverage | 1,800-2,200 sq. ft. | Up to 3,000 sq. ft. |
| Hopper Capacity | 45-46 lb. hopper | 170 lb. hopper, the largest on the market |
| Burn Time | Up to 32-40 hours between fillings | Up to 80 hours on the lowest setting |
| Remote Control | IR remote control | Wi-Fi and Bluetooth control through the US Stove App |
| Burner Technology | Standard burner systems | AURORA diverse airflow burner system for improved flame and airflow |
| Best Suited For | Moderately sized homes up to 2,200 sq. ft. | Large homes up to 3,000 sq. ft. wanting maximum hopper capacity and app control |
Why The US Stove US5522-W Is Worth The Investment
This isn't just another pellet stove, it's the largest-hopper model in the lineup, giving homeowners with the biggest spaces up to 80 hours of continuous heat on a single load alongside full smartphone app control that smaller models don't offer.
The US5522-W specifically addresses the needs of homeowners heating up to 3,000 sq. ft. who want to minimize refueling frequency to the greatest extent possible while controlling the stove remotely from a smartphone.
Turns The Largest Homes Into Manageable Heating Zones. A 20% larger 170 lb. pellet hopper delivers up to 80 hours of continuous warmth and comfort, so even the largest 3,000 sq. ft. spaces can go over three days between refills, all while being monitored and adjusted through the US Stove App from anywhere in the home.
Built For Powerful, Efficient Heat
- Delivers up to 33,000 BTUs of heat for spaces up to 3,000 sq. ft.
- The AURORA diverse airflow burner system provides a beautiful flame with an unmatched increase in airflow and heat output
- Automated pellet feeding ensures consistent heat output throughout the burn cycle
Engineered For Maximum Convenience
- Smart Stove Technology gives Wi-Fi and Bluetooth control through the US Stove App
- A massive 170 lb. hopper reduces refill frequency to as little as once every three-plus days
- A sleek, durable design fits modern home interiors
Real Savings
- The largest hopper on the market significantly reduces the labor and frequency of refueling
- App-based remote control allows adjustments without needing to physically visit the stove
- Automated pellet feeding helps avoid wasted fuel from inconsistent manual feeding
- Free shipping and no sales tax through Summit Forge Supply keeps the total cost down compared to buying elsewhere and paying tax and freight separately
The Bottom Line Homeowners heating the largest spaces who want to minimize refueling and control their stove remotely can't get that combination from a smaller-hopper pellet stove. The US Stove US5522-W is built with a 170 lb. hopper, Wi-Fi and Bluetooth app control, and the AURORA burner system, so it delivers up to 80 hours of heat per load across up to 3,000 sq. ft. For anyone heating the largest homes with maximum convenience, this is the stove built to make it possible.
Features
- Up to 3,000 sq ft
- Up to 33,000 BTUs
- Up to 170 hopper capacity
- Up to 80 hrs on lowest setting
- Smart Stove Technology
- Wi-Fi/Remote
- Heats Up To 3,000 Square Feet of Living Space
- Largest Hopper on the Market: 170 lb. Capacity
- Provides Up To 33,000 BTUs Of Clean Heat
- Remote Operation: Wi-Fi + Bluetooth capable through US Stove app
- Utilizes Exclusive AURORA High Efficiency Technology
- Easy To Use Electronic Ignition
- Features Upgraded Ceramic Glass
- Easy To Use Top Mounted Controls
- Mobile Home Approved (USA) – Optional Fresh Air Kit (69FAK) Available
Additional information
| Weight | 264 lbs |
|---|---|
| Dimensions | 27 × 32 × 41 in |
Yes, please use this link to see the full list of repair videos Pellet Stove Repair Videos
Yes, however, it must be a wired thermostat. The control boards do not accept wireless or smart thermostats.
The models ending in W has Wi-Fi capabilities. This allows you to control the stove using the USSC App. The model without the W comes with a remote control that works with an IR sensor on the stove.
Yes, it can be exhausted through the ceiling. Refer to the owners manual with installation recommendations.
We recommend using an NFI Certified Installer.
No. These control boards are designed to be a High/Low thermostat mode rather than an ON/OFF. This means that the control board will operate between heat range 1 and the setting that the control board is set to. For example, if you have the control board set on heat range 3 and are running the stove in T-Stat mode the heater will run on heat range one any time that the temperature is sufficed, and it will run up to setting 3 anytime the thermostat is calling for heat. If the Thermostat isn’t calling for heat, the stove will still run on the lowest setting, so this means that it is possible that it can exceed the setpoint temperature.
This is likely due to the hopper fuel sensor. This is intended to indicate that the hopper fuel is getting low, however, this can also mean that the sensor just needs to be recalibrated. This is a simple task. You will just need a small flat head screwdriver to turn the small brass screw on the fuel sensor located on the back of the hopper. Turn it clockwise slowly until the control board stops flashing when there are pellets in the hopper.
This depends on how often you are running the stove. It is recommended that the burn pot be emptied and cleaned before each ignition. The burn pot should be inspected daily if you are continually using it to see if it needs to be cleaned.
We recommend only using PFI certified premium hardwood pellets.
No. These stoves are designed and tested to specifically burn only wood pellets.
If you have a mobile home certified pellet stove installed in a mobile home, then a fresh air kit is required. If you are in a newer build home it is also recommended. If you are in a home with a small area for makeup air or you are getting a poor burn, then it is also recommended that you use a fresh air kit.
We recommend a minimum of 1000w pure sine wave invertor battery backup for a short period of time. If you are using a generator, we recommend that it is 1000w inverter generator.
• First check that the auger pin is connected and not broken. If it is broken, then there is likely an auger jam.
• Auger jam is a potential cause. This typically occurs due to a buildup of pellets in the auger tube. If this is the cause, you can usually clean out the hopper and remove the jam and the heater will then work as it should.
• The hopper switch is another likely culprit, this can move over time to where it is not fully engaging and may just need to be slightly adjusted.
• An issue with vacuum can also cause this to occur. Vacuum issues are typically a result of a dirty stove/flue pipe, leaking gasket, or improperly installed exhaust pipe.
– Start by making sure that all clean outs are clean and free of debris.
– Make sure that the venting is installed per the owner’s manual and is not clogged with debris or ashes.
Yes. Though some parts such as the hopper and the back of the stove should remain relatively cool, the front and sides of the stove will get extremely hot and will cause burns if touched.
Full Spec Sheet
| Model | US5522-W |
| Heat Output | Up to 33,000 BTU |
| Heating Area | 3,000 sq ft |
| Hopper Capacity | 170 lbs, largest on the market |
| Runtime | Up to 80 hrs on lowest setting |
| Burner | AURORA diverse airflow system |
| Connectivity | Wi-Fi and Bluetooth, US Stove App |
| Weight | 264 lbs |
| Dimensions | 27 x 32 x 41 in |
| Warranty | 5-year limited firebox, 1-year other parts |
