Product Description

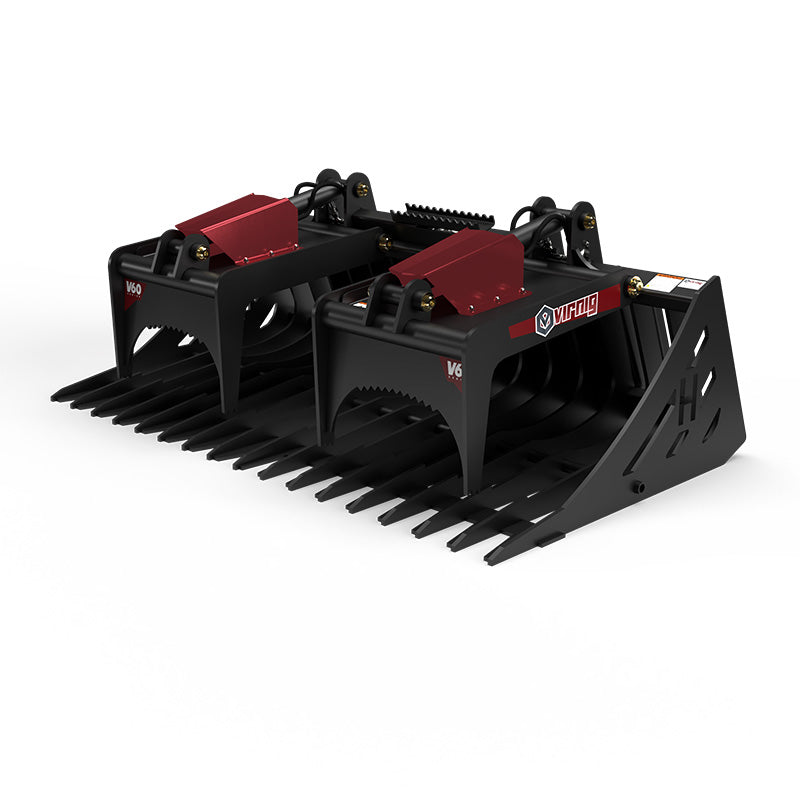

The toughest rock grapple built for the most demanding applications.
- EVERY TINE IS MADE FROM ONE PIECE OF STEEL FOR MAXIMUM RIGIDITY
- ROCK DAM & NOTCH NEAR TINE TIPS HOLD ROCKS SECURELY
- NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON ALL PIVOTS
- STANDARD WITH CYLINDER GUARDS
| MODEL | HSRGV72 | HSRGV78 | HSRGV84 | HSRGV90 |
| Overall Width (Inches) | 73.5 | 79.5 | 85.5 | 91.5 |
| Height: Overall / Bucket (Inches) | 27.8/21.5 | |||
| Overall Depth (Inches) | 42.9 | |||
| Number of Tines (With Sides) | 17 | 18 | 20 | 21 |
| Space Between Tines (Inches) | 4.0 | 4.1 | 3.9 | 4.0 |
| Tine Thickness (Inches) | 0.5* | |||
| Cylinder Bore / Stroke (Inches) | 2.0 / 8.375 | |||
| Cylinder Pins / Hinge Pins Diameter (Inches) | 1.25 / 1.563 | |||
| Grapple Jaw Opening (Inches) | 36.1 | |||
| Approximate Weight (Pounds) | 1080 | 1115 | 1170 | 1205 |
| Recommended Loader Capacity | Greater than 1800 pounds | |||
*Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength).
Download Spec Sheet (PDF)
Download Manual >>
