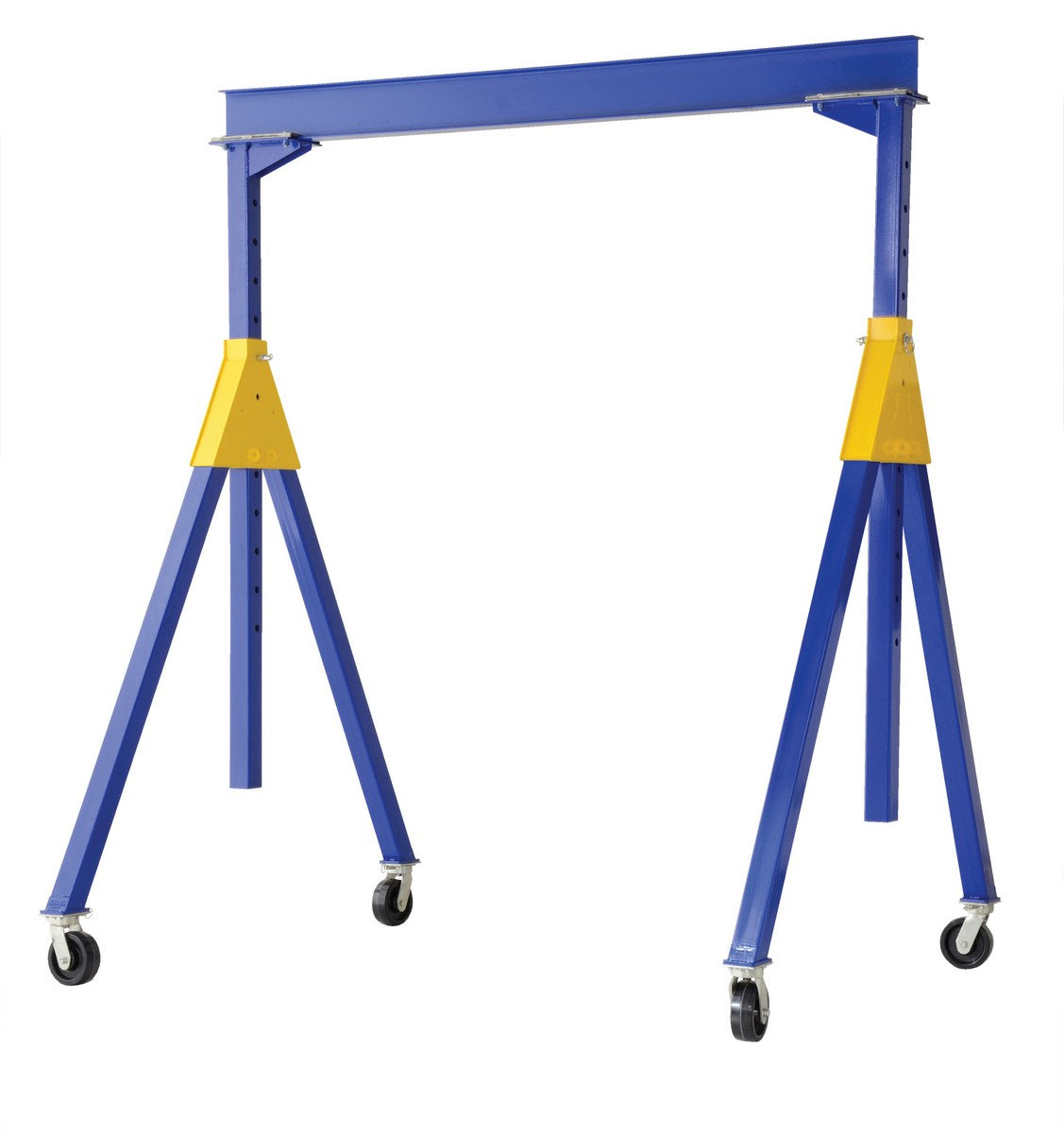

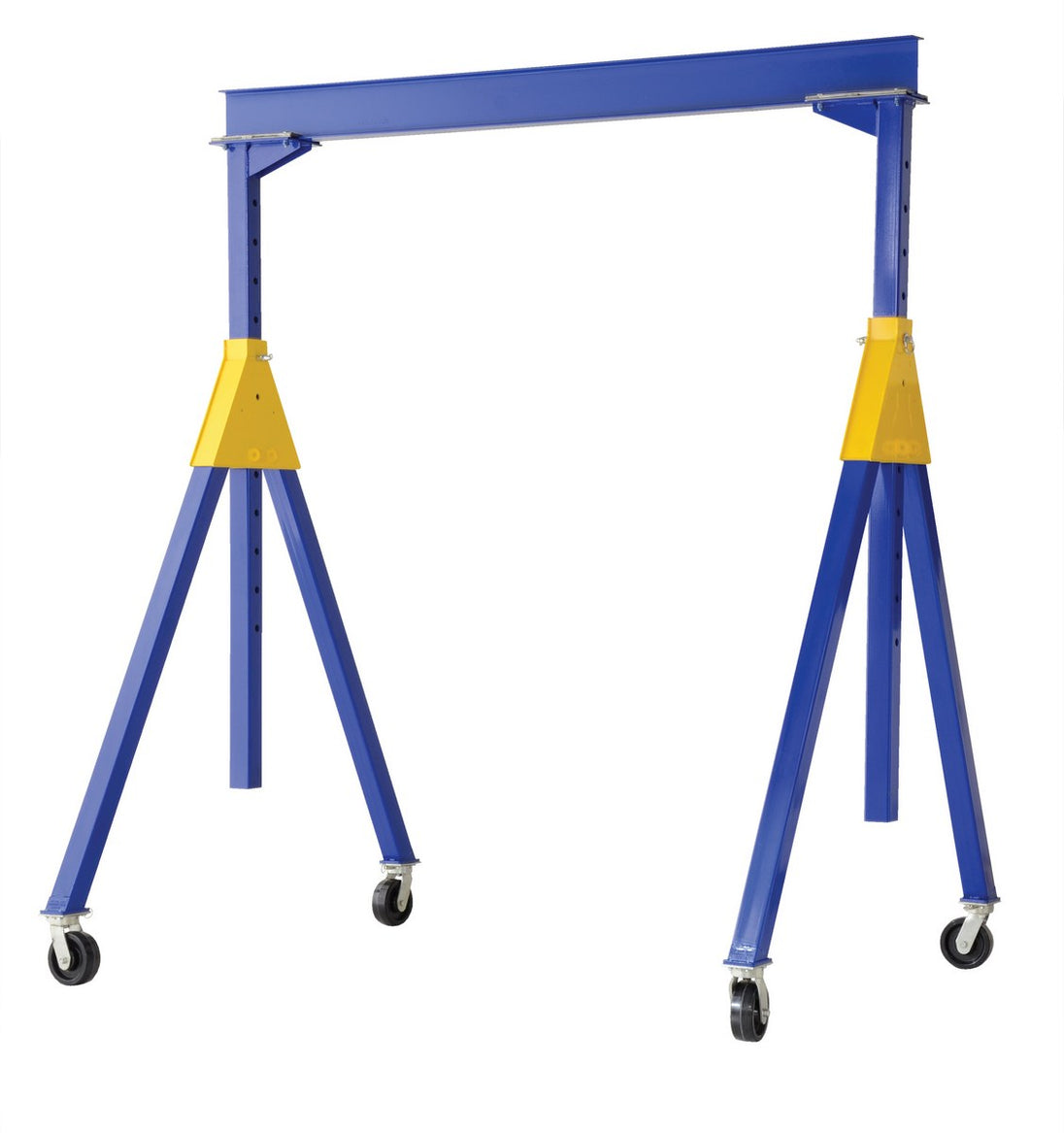

Vestil Steel Knock-Down Adjustable Height Gantry Crane with Glass Filled Nylon Casters 10 Ft.Wide x 16 Ft. Max Usable Height 2,000 Lb. Capacity Blue AHSN-2-10-16

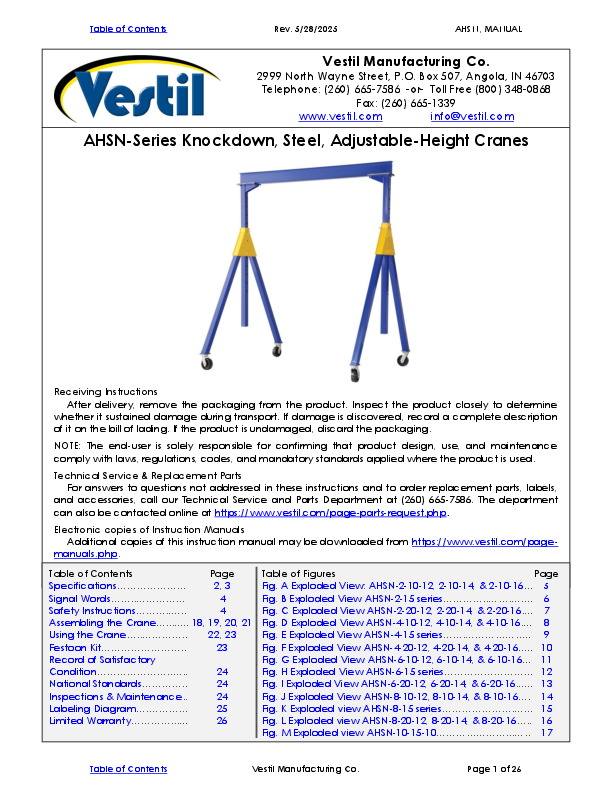

The industrial steel Gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service. Unit comes standard four (4) position locking swivel casters with roller bearings. Locks the rigging in 1 of 4 positions; you can set the wheels and push the gantry crane forward, back, left or right. There is an optional total locking casters that lock the rigging in any position and locks the wheel from rotating. More economical and flexible than permanent cranes and features a quick setup design. Painted blue finish with warning and operating stickers and complete owner's manual. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up. Assembly is required.

• Heavy-duty welded steel construction for long lasting use
• Each unit includes four swivel glass filled nylon casters with four-way position locks for safe positioning
• Easily maneuvered between stations when unloaded

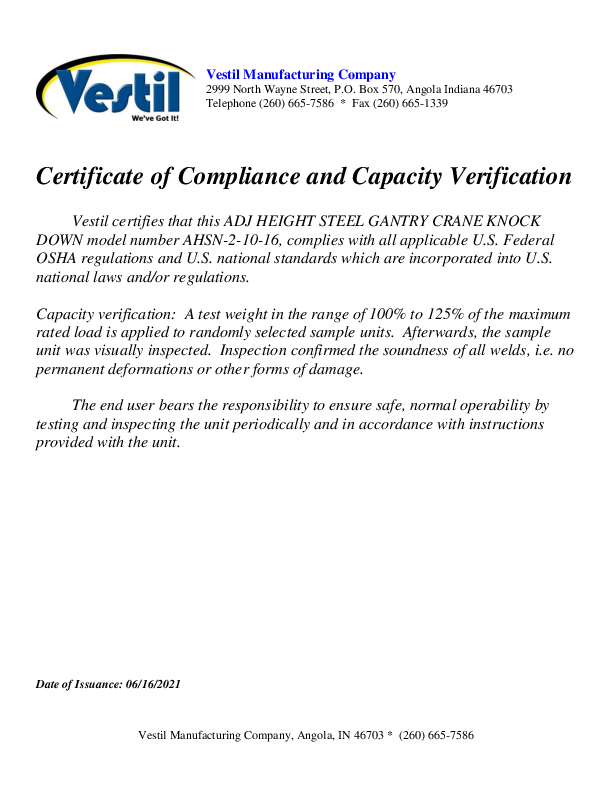

• All units comply with applicable CMAA and ANSI specifications
  Packaging Level

  BASE_UNIT_OR_EACH

  Package Depth (in)

  96

  Package Width (in)

  44

  Package Height (in)

  20

  Package Weight (lbs)

  668

  Subclass

  9

  Freight Class

  100

  NMFC Code

  MACHINERY GROUP

  NMFC Number

  133300

  Package 2 Depth (in)

  130

  Package 2 Width (in)

  14

  Package 2 Height (in)

  10

  Package 2 Weight (lbs)

  159

  Package 2 Subclass

  9

  Package 2 Freight Class

  100

  Package 2 NMFC Code

  MACHINERY GROUP

  Package 2 NMFC Number

  133300

  LTL /Freight

  LTL Palletized

  UNSPSC_Code

  24101654

  HTSUS Number

  8426.19.0000

  USMCA HS

  8426.19

  Origin Criterion

  B

  Certification Indicator

  D

  ECCN (Export Commerce Control Number)

  EAR99

  Country of Origin Name

  US

  US Shipping Point

  Angola, IN

  Supplier Shipping Point Postal Code

  46703

  Contains hazardous material or is aerosol?

  No

  MSDS

  No

  Batteries Included

  No
  Capacity (lbs)

  2000

  Color / Finish

  Blue

  Frame Material

  Steel

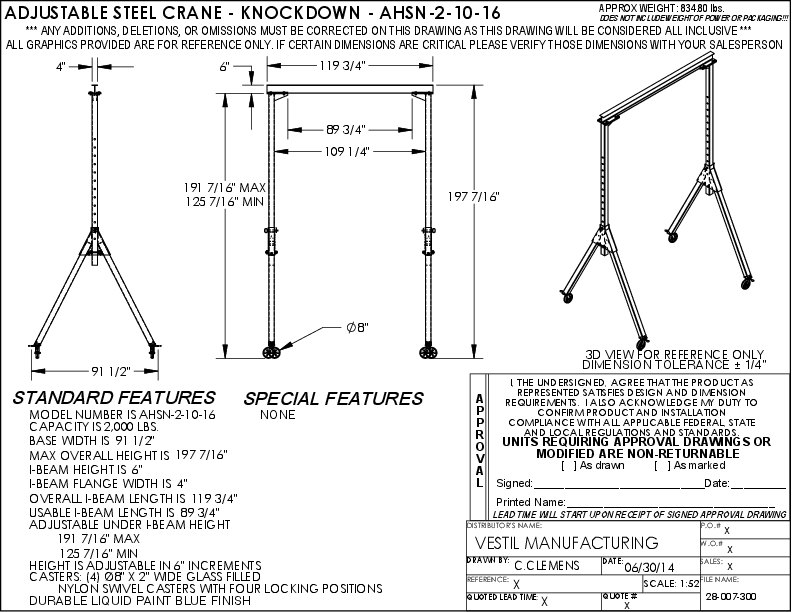

  Beam Height (in)

  6

  Beam Length (in)

  120

  Usable Beam Length (in)

  89.75

  Flange Width (in)

  4

  Base Width (in)

  91.5

  Base Length (in)

  119.75

  Maximum Overall Height (in)

  197.44

  Adjustable Height

  Yes

  Increment Height Adjustment (in)

  6

  Maximum Clearance (in)

  192

  Minimum Clearance (in)

  126

  Number of Casters / Wheels

  4

  Caster / Wheel Locking

  Yes

  Wheel Material

  Glass-Filled Nylon

  Wheel Diameter (in)

  8

  Wheel Width (in)

  2

  Weight (lbs)

  869

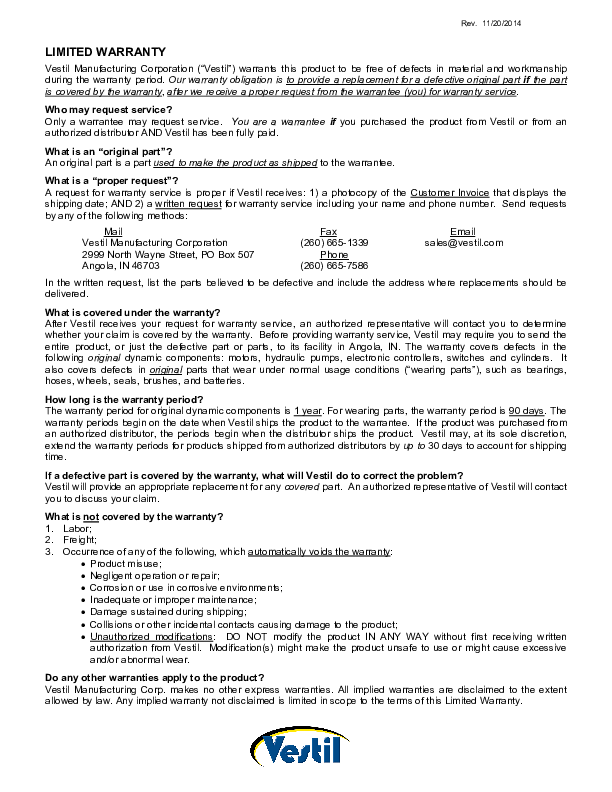

  Manufacturer Warranty

  1 Year
