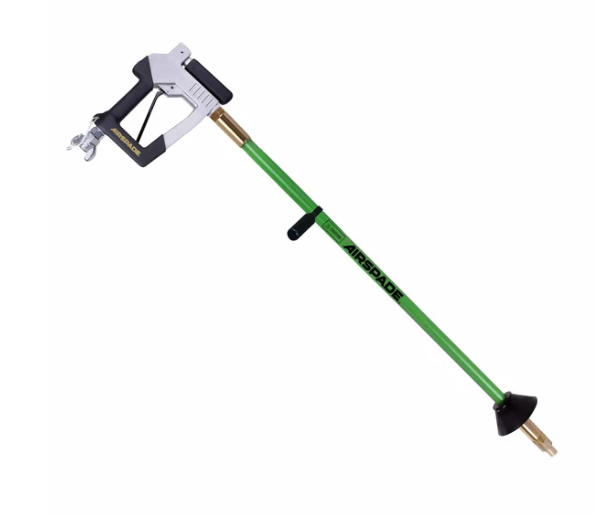

AirSpade 4000 Utility Series ASU4105G4

Setting a new standard for air excavation tools, the Utility AirSpade 4000 Series harnesses the power of compressed air to safely uncover underground utility lines without harm. AirSpade's high-performance, proprietary Supersonic Nozzle generates a laser-like jet that moves at twice the speed of sound for faster, more effective digging. With non-sparking bronze nozzle, brass components, electrically insulated 4 ft. barrel rated to 300kV, and a lightweight, ergonomic handle, the Utility AirSpade 4000 maximizes jobsite safety while minimizing operator fatigue. Aluminum handle features full size grip opening to accommodate linesman's gloves. Dead-man trigger ensures safe operation and trigger guard prevents accidental activation. Retractable handle provides superior operator control. Integral pressure gauge ensures optimal digging performance.

Features

• Rugged, ergonomic handle with plastic-coated grip
• Retractable stabilizer bar and integral air-pressure gauge
• Dead-man trigger with trigger guard
• Insulated, 4 Ft. fiberglass barrel rated up to 300kV
• Non-sparking Brass barrel sleeves and threaded connectors
• Adjustable, rubber spray shield
• Non-sparking, Nickel Aluminum Bronze supersonic nozzle; 105, 150 and 225 cfm available
• Inlet: 3/4 NPT
• Chicago-style swivel connector
• Detachable, auxiliary handle

Includes

• (1) Utility AirSpade 4000 Handle
• (1) 4 Ft. insulated, fiberglass barrel with dirt shield
• (1) 105 cfm non-sparking bronze supersonic nozzle
• (1) Detachable, auxiliary handle

Typical Applications

• Electric Power Lines
• Gas Pipes
• Water & Sewer Lines
• Telecommunications Lines & Fiber Optics

Warranty

Limited Warranty – One Year Warranty Period. See more details.

Specifications

Operating Manual
