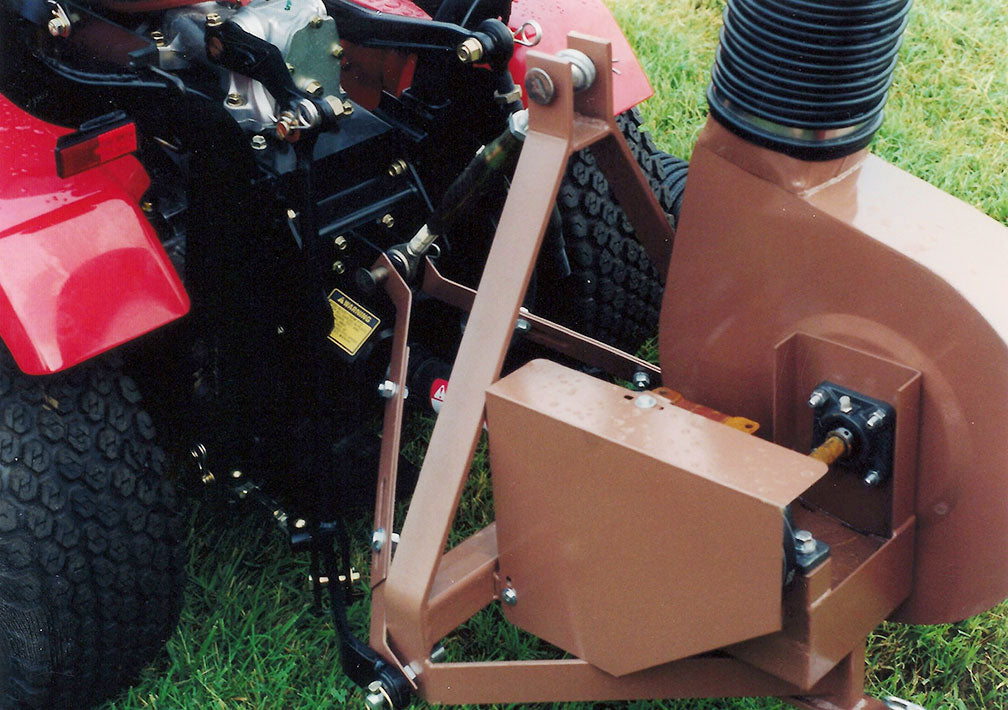

Trac-Vac Leaf Vac 856

The Trac Vac PTO systems can accommodate front or mid driven mowers on compact tractors with a minimum of 13.5HP at rear PTO. Each is supported by stabilizer arms on the three point to free lift arms for raising and lowering the mower. Features include a 2to1 gearbox coupled to the turbine assembly with belt drive producing a turbine speed of approximately 3800 RPM. **Lift kit additional if required. The Model 856 come standard with a 18 cubic foot dump cart tapered four inches front to back to allow debris to fall out quickly with little clogging. The 20gauge all steel cart cover, powder coated for long life, expands capacity to approximately fifty cubic feet. Eight inch intake and exhaust hoses move leaves, grass clippings, and light litter with a less chance of clogging. The six bladed forward curve turbine reduces noise to a pleasing 70 decibel level while reducing the clippings and leaves for better compaction in the collection container. Note: Most tractors require a special lift kit to bypass the stabilizer arms as the lift mechanism for the mower deck. Check with your distributor for these applications.

854/856 Manual
