Key Features
How The TorcUP VT-3000 Compares To Other VT-Series Torque Machines
Technicians selecting a battery torque wrench for heavy structural bolting usually face this question: should I get the VT-2000 for moderate torque, this VT-3000, or the flagship VT-6000 for the highest capacity?
| Feature | TorcUP VT-2000 | TorcUP VT-3000 | TorcUP VT-6000 |
|---|---|---|---|
| Torque Range | 500-2000 lbf-ft (680-2710 Nm) | 750-3000 lbf-ft (1020-4030 Nm) | 1200-6000 lbf-ft (1626-8133 Nm) |
| Square Drive | 1 in | 1 in | 1-1/2 in |
| Free Speed | 2.9-4 RPM | 1.25-1.95 RPM | 0.9-1.3 RPM |
| Weight (w/ arm/battery) | 16.3 lbs | 22.6 lbs | 42.3 lbs, nearly double |

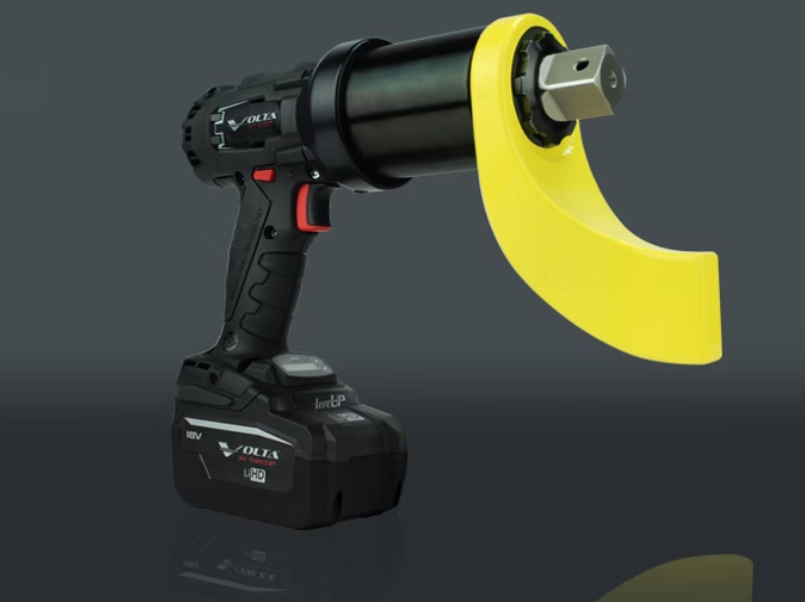

Product Description
BATTERY TORQUE WRENCH
**Includes VT-Series Wrench, Carrying Case, & Reaction Arm (battery not included) All Prices are US Funds
Engineered To Master Any Application Effortlessly, Your
Ability To Torque Industrial Fasteners Is A Simple And
Quick Charge Away. Fully Charged In Under 60 Minutes,
The VOLTA's Lithium Power will provide you with the
capability to torque Hundreds Of Fastenings With No
Hoses Or Cords To Limit Your Reach. Within The Volta Is A
Digital Motor Vectoring System That Provides Accurate
And Repeatable Torque Throughout Each Model's Full
Range. The VOLTA EXEMPLIFIES The Durability, Reliability and
Safety That Has Embodied Every Industrial Wrench
Crafted By TorcUP Since The Company's Founding In 1996.
The Power Inside
1. Hardened alloy steel for durability and long cycle life
2. Bearings support the loads experienced at the square
drive
3. Multi-stage planetary gear systems with optimized tooth
design
4. Smooth ball bearing rotation of the gearbox housing
independent from the motor handle
5. High-Efficiency Brushless Motor
6. Ergonomic glass-filled Nylon handle with a durable slip resistant overmold
7. 18V 7.0 Ah LiHD Battery that provides extended run-time
8. LCD display for setting and viewing Torque and Units
9. Soft-Start Trigger
10. Thrust bearing between stages isolate the motor when
used in all orientations
11. O-Rings Seal grease in while keeping dirt and water out
12. Gears run on low friction, high strength bearing sleeves
13. Tool steel pins in each stage carrier
VT-3000 single speed
Torque range 750-3000 lbf-ft
Free speed 1.25-1.95 RPM
Square Drive 1”
Min. Torque (lbf-ft) 750
Max Torque (lbf-ft) 3000
MIN. TORQUE (Nm) 1020
MAX TORQUE (Nm) 4030
HEIGHT A (w/ battery) (in) 10.76
HEIGHT A (w/ battery) (mm) 273.3
LENGTH B (in) 12.47
LENGTH B (mm) 316.7
DIAMETER C (in) 3.75
DIAMETER C (mm) 95.3
WEIGHT (w/o reaction arm & battery) (lbs) 17.5
WEIGHT (w/o reaction arm & battery) (kg) 7.9
WEIGHT (w/ reaction arm & battery) (lbs) 22.6
WEIGHT (w/ arm & battery) (kg) 10.3
RPM at Min. Torque 1.25
RPM at Max Torque 1.95
Full Spec Sheet
| Model | VT-3000 |
| Speed | Single speed |
| Torque Range | 750-3000 lbf-ft, 1020-4030 Nm |
| Free Speed | 1.25-1.95 RPM |
| Square Drive | 1 in |
| Height (w/ battery) | 10.76 in |
| Length | 12.47 in |
| Diameter | 3.75 in |
| Weight (w/o arm/battery) | 17.5 lbs |
| Weight (w/ arm/battery) | 22.6 lbs |
| Battery | 18V 7.0 Ah LiHD (not included) |
| Includes | Wrench, carrying case, reaction arm |
