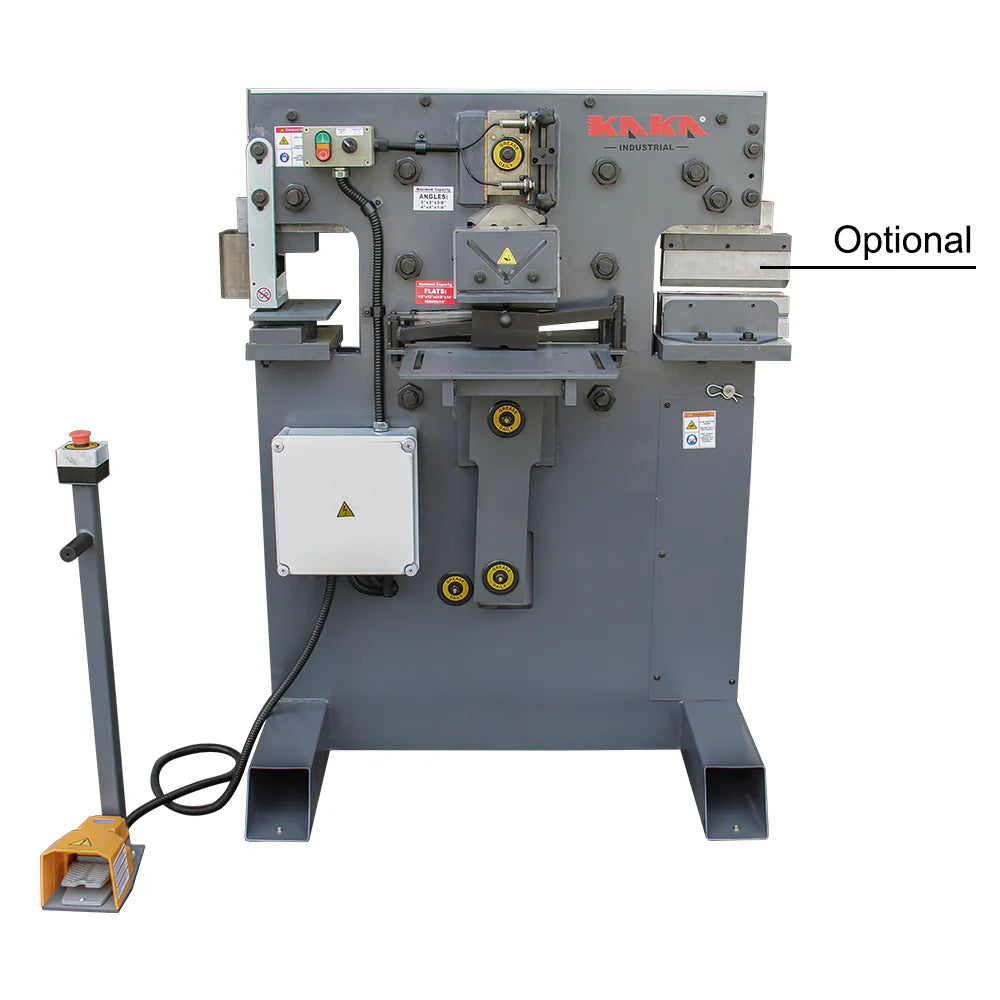

Kaka Industrial M-55 55 Ton Metal Ironworker Punch Shear Notcher Brake 220V 3 phase 181111V220

1. Ironworker is used for punch, shear, notch and brake mild steel plate, bar-stock and angle.
   2. A wide range of accessories are available to fabricate rod, square stock, sheet metal and pipe.
   3. 55 tons capacity
   4. 3 fixed stations and 1 open station
   5. Standard: plate cutting station, angle steel shear and hole punching position with 15/16" dies
   6. Adjustable stroke travel

   Item No.		181111
   Model		M-55
   Rated capacity		55 Ton
   Punch capacity	Diameter	1-1/16"dia.in 5/8"plate
   	Throat depth	7-1/16"
   	Stroke	1-1/4"
   	Work height	35-7/16"
   Flat Bar Shearing	Max. width	1/2"x12" or 3/8"x14"
   	Max. round	7/8"
   	Max. square	7/8"x7/8"
   	Work height	34-5/8"
   Angle Shearing	Max. capacity	4"x4"x1/4" or 3"x3"x3/8"
   	Throat depth	7-3/8"
   	Work height	40-1/2"
   Open station	Open height	8"
   	Shut height	6-3/4"
   	Throat depth	7-1/16"
   	Work height	34-5/8"
   Motor power		4kW (5-1/2HP)
   Packing Size		46x45x60 in
   N.W/G.W		2332/2552 lbs

   Documents

M-55 Manual
