Key Features
✓

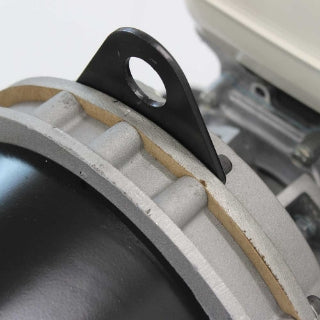

Sand-cast aluminum construction for portability and durability
✓
Thermoplastic Santoprene diaphragm handles thick, abrasive liquids like mud and slurry
✓
Self-priming to a 25 ft lift
✓
Handles solids up to 1-5/8 in in diameter
✓

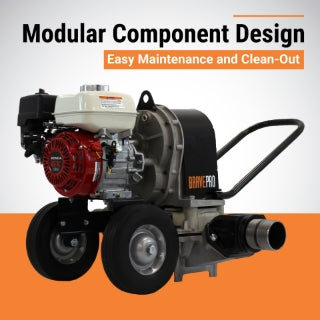

Modular component design permits easy maintenance and clean-out
✓
90 degree rotatable base for flexible setup
Product Description

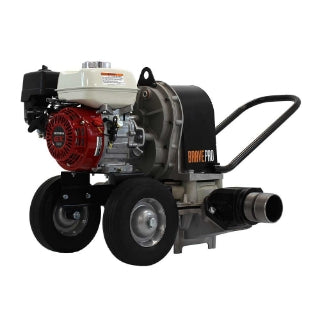

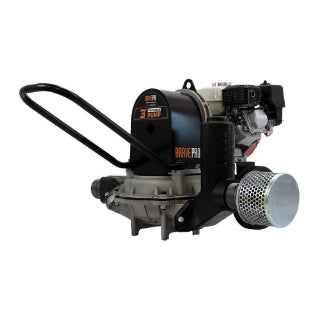

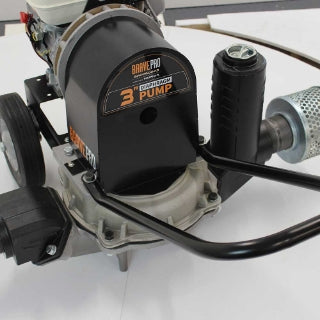

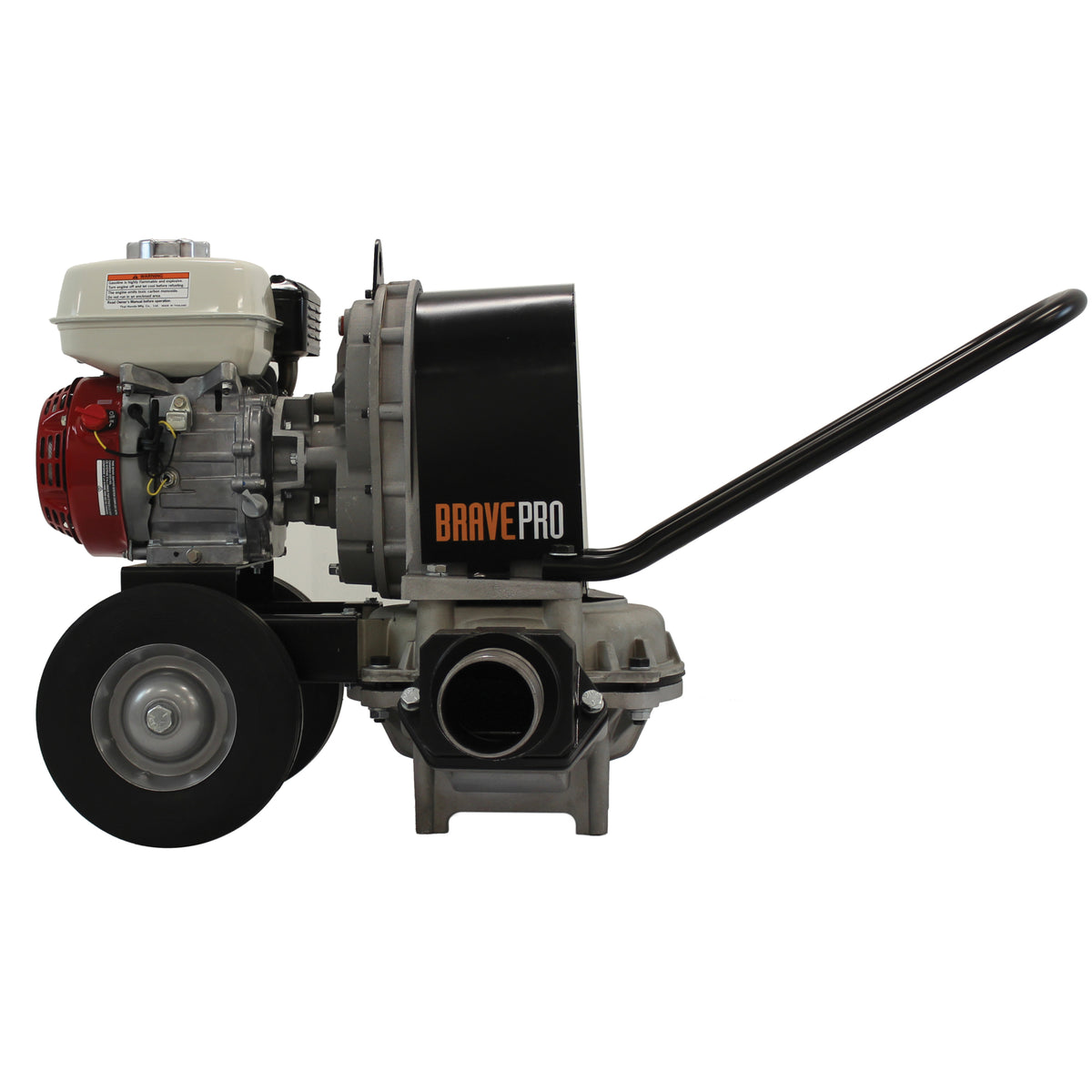

The BravePro 3 in. diaphragm pump is ideal for moving mud, slurry, and other thick and abrasive liquids. This pump uses a diaphragm that is pushed up and down, creating a vacuum effect instead of using centrifugal force. The diaphragm pump is perfect for moving swamps and dirty ponds making it great for farmers. Hose kits are available.
- Sand-cast aluminum construction for portability and durability
- Thermoplastic Santoprene diaphragm

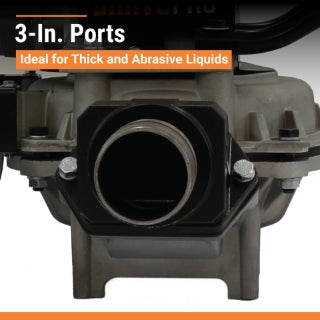

- 3-in. NPT suction and discharge ports
- Self-priming to 25-ft. lift
- Max solids handling up to 1-5/8 in.
- Modular component design permits easy maintenance and clean-out
- 90° rotatable base
- Max temperature of 180°F

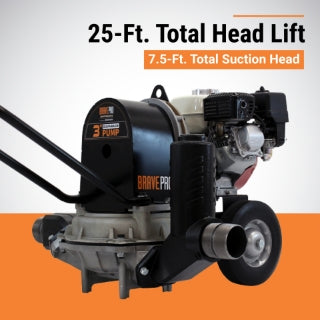

- 25-ft. total head lift, 7.5-ft. total suction head
- Wheel kit included
| Equipment Type | Pump |
| Discharge Capacity | 89 Gal/min |
| Discharge Port Diameter | 3 In. Npt |
| Displacement | 122cc |
| Dry Weight | 175 Lbs |
| Engine | GX120 |
| Engine Brand | Honda |
| Impeller | Cast Iron |
| Pressure | 11 Psi Max |
| Pump Type | High Pressure |
| SKU | BRP750DP3 |
| Solids Handling | Up To 1-5/8 In. Diameter |
| Suction Head Lift | 7.5 Ft. |
| Suction Port Diameter | 3 In. Npt |
| Total Head Lift | 25 Ft. |
Full Spec Sheet
| Model | BRP750DP3 |
| Engine | Honda GX120 |
| Discharge Capacity | 89 GPM |
| Pressure | 11 PSI max |
| Total Head Lift | 25 ft |
| Suction Head Lift | 7.5 ft |
| Solids Handling | Up to 1-5/8 in diameter |
| Weight | 175 lbs |
