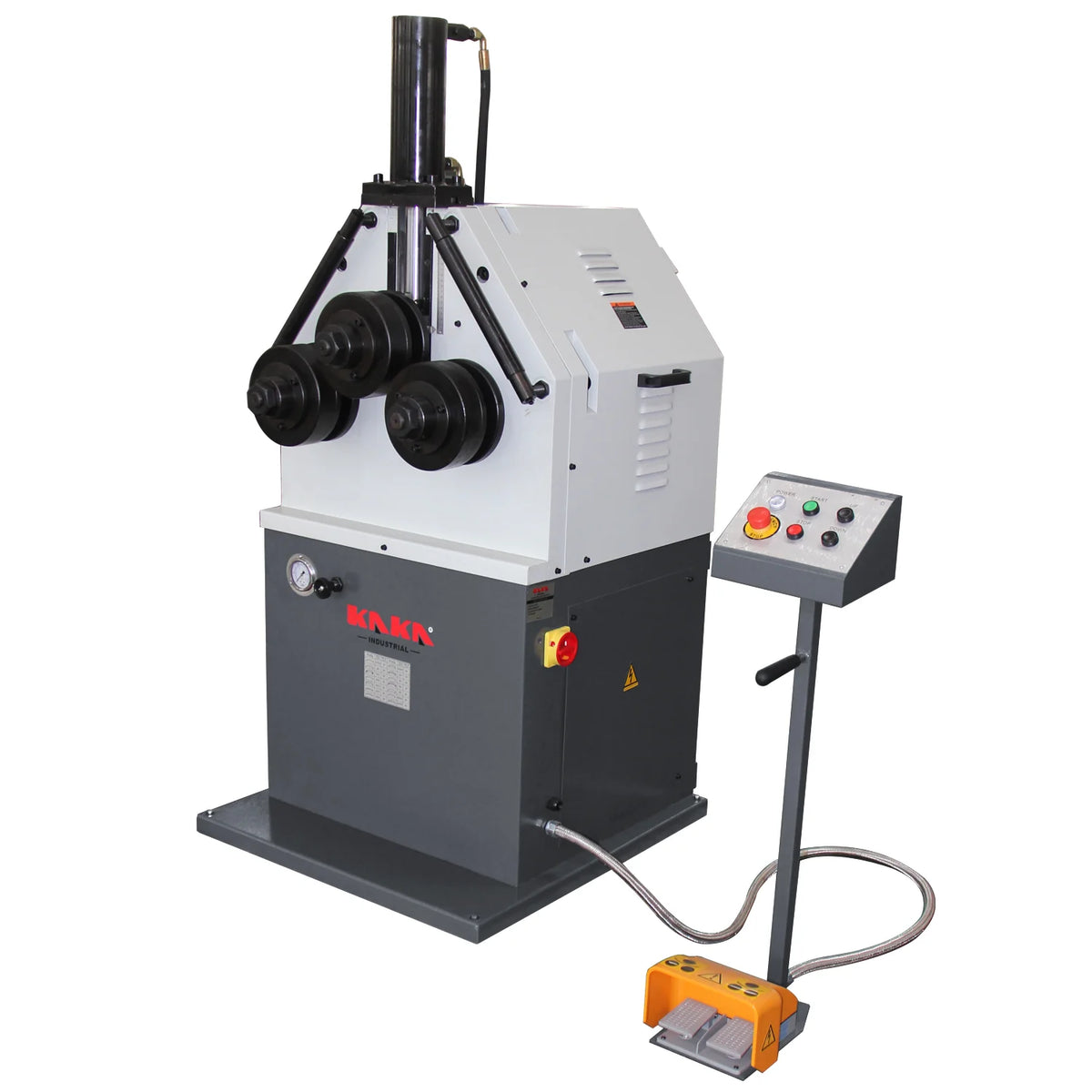

KaKa Industrial Roll Bending Machine- Heavy Duty Hydraulic Profile Bender for Steel Pipe, 3HP Heavy Duty Bender for 2.4 inch Flat Bar, 1.4 inch Round Tube & 2 inch Square Bar, 220V 3-Phase HRBM-50HV 191023V230V460

HEAVY-DUTY HYDRAULIC BENDING CAPACITY - Powered by a 3HP (2.2kW) hydraulic motor with ø2" (ø50mm) hardened steel rollers. Bends profiles including 2.4"x0.4" (60x10mm) flat bars, ø1.4" (ø35mm) round bars, and 2"x2"x0.12" (50x50x3mm) square tubes with minimum bending diameters as tight as 500mm.

PRECISION ROLLER SYSTEM & DUAL OPERATION - Features three powered rollers with hydraulic control system. Supports both horizontal and vertical operation for bending long beams, wide plates, pipes, and complex profiles. Standard spindle speed of 9 r/min @50Hz.

EXTENSIVE PROCESSING CAPACITY - Handles diverse profiles per technical specs: Flat bars: 2.4"x0.4" (60x10mm) - Min dia. 500mm Angle steel: 2.4"x0.4" (60x10mm) - Min dia. 1150mm Square tubes: 2"x2"x0.12" (50x50x3mm) - Min dia. 800mm

INDUSTRIAL CONSTRUCTION & DESIGN - Built with heavy-duty steel frame supporting 1135lbs (515kg) net weight. Compact packaging 48"x32"x71" (122x82x180cm) fits workshop spaces. Gross weight 1433lbs (650kg).

SPECIAL ROLLER CUSTOMIZATION - Optional rollers available for specific profiles from 13"x0.08" to 2.8"x0.08" (330x2mm to 70x2mm). Ideal for metal workshops, construction, and automotive fabrication.

VERSATILE INDUSTRIAL APPLICATIONS - Ideal for metal workshops, construction sites, and automotive fabrication Suitable for HVAC ductwork, structural steel bending, and custom metalworking Processes various materials including steel, aluminum, and stainless steel

Specification:
