Product Description

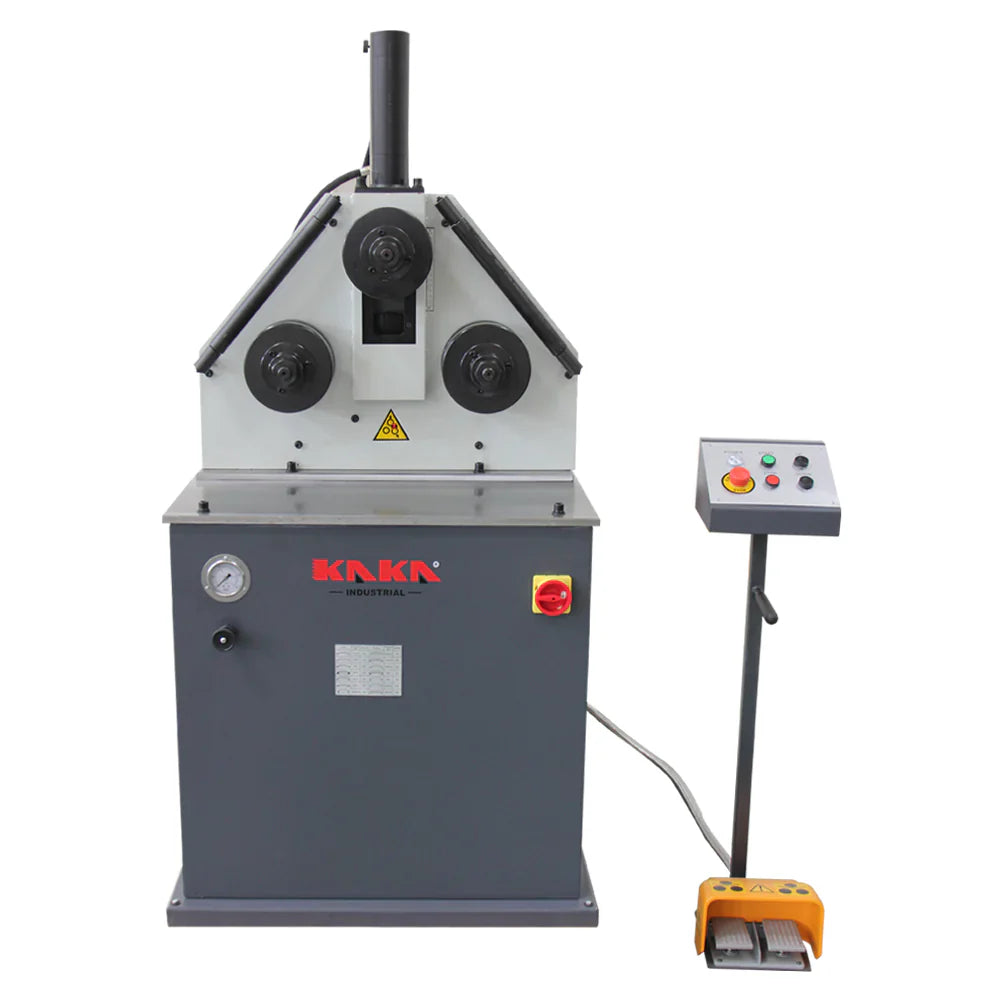

HEAVY-DUTY HYDRAULIC BENDING CAPACITY - Powered by a robust 3HP (2.2kW) hydraulic motor and ø2" (ø50mm) hardened steel rollers, this machine effortlessly bends 2.4"x0.4" (60x10mm) flat bars, ø1.4" (ø35mm) round bars, and 2"x2"x0.12" (50x50x3mm) square tubes, achieving minimum bending diameters as tight as 19.7" (500mm). It handles steel, aluminum, and stainless steel with precision .
PRECISION CONTROL & DUAL OPERATION MODES - The three-powered-roller hydraulic system ensures smooth and precise material forming. It supports both horizontal and vertical operation, providing the flexibility to efficiently process long beams, wide plates, pipes, and complex structural profiles with a standard spindle speed of 9 r/min.
EXTENSIVE PROFILE PROCESSING RANGE - Beyond standard shapes, the machine expertly handles angle steel, T-section, and C-section steels, with minimum bending diameters ranging from 19.7" to 45.3" (500mm to 1150mm)according to technical specifications. This makes it suitable for a vast array of industrial materials and projects .
INDUSTRIAL-GRADE CONSTRUCTION & DESIGN - Built with a heavy-duty steel frame, the machine boasts a net weight of 1,135 lbs (515 kg), ensuring stability and resistance to deformation under continuous operation. Its compact packaging dimensions of 48"x32"x71" (122x82x180cm)allow it to fit efficiently into workshop spaces .
VERSATILE APPLICATIONS & CUSTOMIZATION - Ideal for metal workshops, construction sites, and automotive fabrication. It is perfectly suited for HVAC ductwork, structural steel bending, and custom metalworking. Optional rollers are available for specific profiles, expanding its capability to handle rounds from 1.2" to 2.8" (30x2mm to 70x2mm).
Specifications
