Product Description
Its standard tooling processes flat bars up to 2"x0.79" (50x20mm) with minimum bending diameters from 23.62" to 49.21" (600–1250mm), square tubes such as 2"x2"x0.1" (50x50x2.5mm) at a minimum diameter of 27.56" (700mm), and angle steel (e.g., 2"x0.16" / 50x4mm) down to 19.69" (500mm). The machine also handles T-section steel (1.97"x0.24" / 50x6mm), C-section steel (1.97"x1.46"x0.18" / 50x37x4.5mm), and solid round bars (ø1.18" / 30mm) with a minimum diameter of 25.59" (650mm). Optional rollers extend capabilities to round tubes (ø1.18"–2.76" / 30–70mm, wall thickness 0.08" / 2mm) at a 27.56" (700mm) minimum bending diameter.

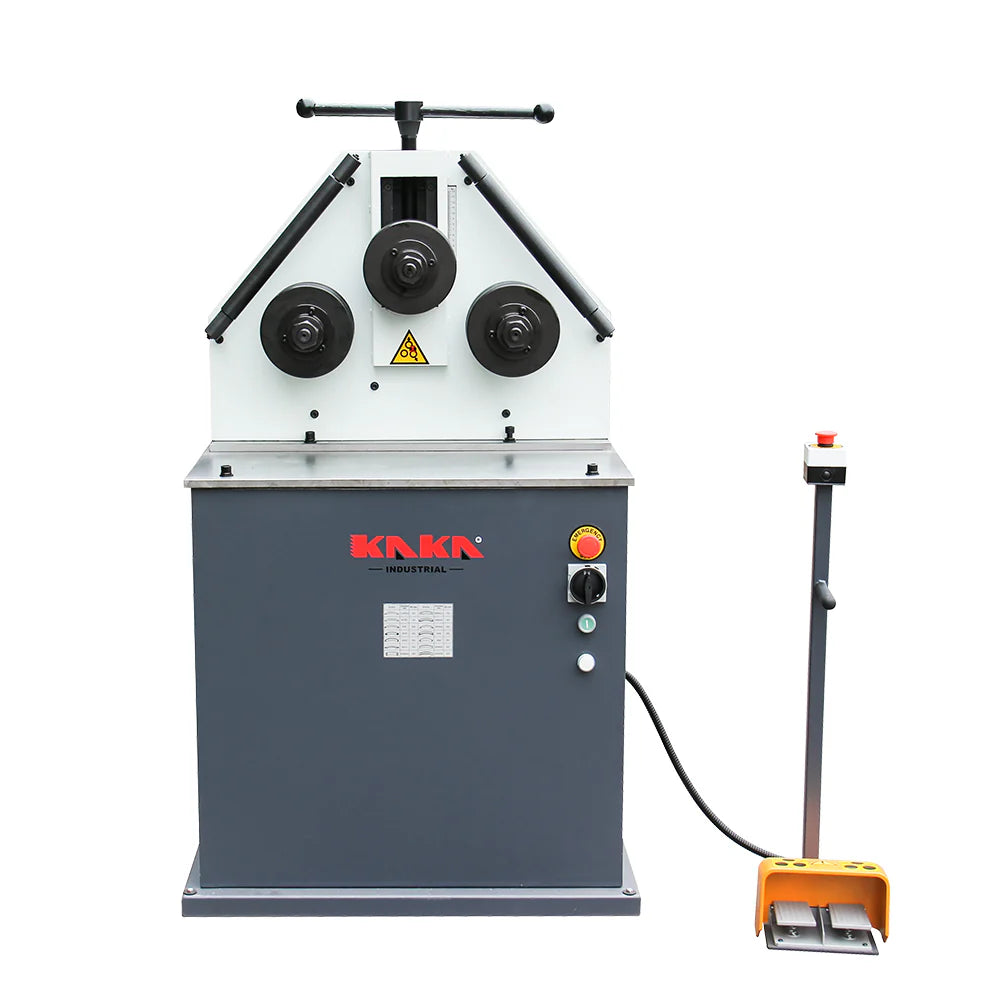

PRECISION ROLLER SYSTEM & DUAL OPERATION – Features three hardened steel rollers and an adjustable top roll. The machine operates in both horizontal and vertical positions, enabling the creation of complex arcs, full circles, and precise bends on pipes, channels, and flat bars with consistent accuracy .
INDUSTRIAL-GRADE CONSTRUCTION – Built with a reinforced steel frame that resists deformation under continuous heavy-duty use. The robust construction ensures processing stability and an extended service life in demanding workshop environments .
FOOT CONTROL & SAFETY INTEGRATION – Includes a reversible foot pedal for hands-free operation, enhancing productivity and control. An integrated emergency stop button complies with industrial safety standards, ensuring operator protection .
VERSATILE INDUSTRIAL APPLICATIONS – Ideal for structural rebar bending, HVAC duct fabrication, and automotive roll cages. Its ability to handle various profiles makes it a fundamental tool for metalworking workshops, construction sites, and automotive repair shops .
Specification:
|
Item No.
|
191003
|
|
Model
|
RBM-40HV
|
|
Dia. Of roller(in)
|
￠1.57"
|
|
Power
|
1.5kw/2HP
|
|
Spindle speed
|
@60Hz 11r/min
|
|
Packing Size(in)
|
55x37x52 in
|
|
N.W./G.W.(lb)
|
936/1091 lbs
|
