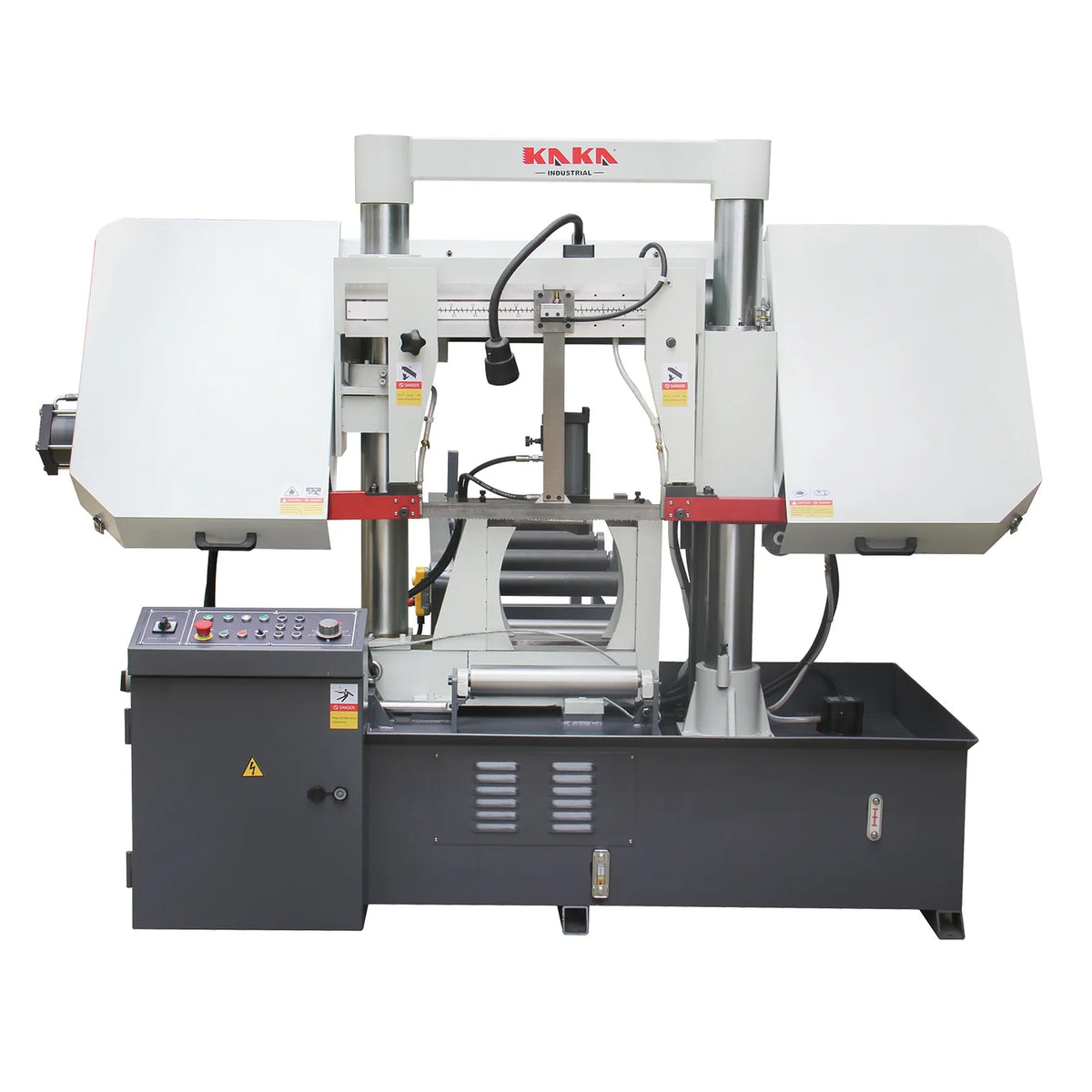

KaKa Industrial Kaka Industrial TGK-16A Double column horizontal band saw, Max cutting capacity 15.7 inch, vertical lifting, high stability. Cutting speed adopts hydraulic control, 230V 60HZ 3PH 188304V230

SKU: 188304V230
$14,379.00 Free Shipping
As low as $1,298.42/mo with shop
In Stock & Ready to Ship
Save 2% Today at Checkout
✓ Authorized Dealer
✓ Free And Fast Shipping
✓ Expert Product Support Call 888-688-5869
Secure checkout
Ach Direct Debit American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa
Secure Checkout
Manufacturer Warranty
Easy 30-Day Returns
Expert Support

Product Description

Powerful Cutting Performance

  • With a maximum cutting capacity of 15.7 inches, this industrial-grade machine is designed for professionals in metalworking, fabrication, and maintenance. Powered by a robust 3.0/4.0 kW double-speed motor, the TGK-16A offers two blade speeds (141 and 220 ft/min) to handle a wide range of materials effortlessly.

Versatility for Every Job

  • Built to last, its double-column structure and vertical lifting mechanism provide unmatched stability and durability.
  • The hydraulic control system provides precise adjustment of cutting speed and blade descent, delivering clean, consistent cuts with every use.

Safety Features

  • Safety is a priority with the TGK-16A. It features hydraulic clamping for secure workpiece holding, a coolant system to prevent overheating, and an automatic shut-off for added protection.
  • Integrated work lights enhance visibility, ensuring accuracy even in low-light conditions.

Wide Applications

  • The included extra clamp for hexagonal bundle material cutting adds versatility, making it ideal for metalworking shops, educational settings, and advanced hobbyist workshops alike.
  • Whether you’re cutting metal, plastics, or composites, the Kaka Industrial TGK-16A is your reliable solution for high-performance industrial cutting.

1. Hydraulic blade tension is standard
2. Standard working light and cooling system
3. Standard extra clamp for hexagonal bundle material cutting
4. 3.0/4.0 kW double speed motor to get two
5. Saw blade speed, 36,56 m/min
6. Double column structure, saw frame vertical lifting, high stability
7. Saw frame descent by hydraulic control, variable speed
8. Hydraulic clamping vice and hydraulic blade tension adjustment

Item No.
188304
Model
TGK-16A
Max. cutting capacity
φ15.7"-15.7"x15.7"
Cutting speed @60Hz
141,220 ft./min
Feed speed
Hydraulic varable speed
Blade size
1.6"x0.05"x196.8"
Workpiece clamping
Hydraulic
Blade tensioning
Hydraulic
Main motor power
3.0/4.0 kW
Oil pump motor power
0.75kW
Coolant pump motor power
0.045kW
Drive
Gear
Packing size
106"x53"x58"
N.W./G.W.
3031/3318 lbs

Documents

TGK-16 Manual
