Product Description
| Minimum external diameter: |
⌀ 5 mm |
|---|---|
| Maximum bend capacity: |
⌀ 60 x 4 mm |
| Control System: |
EDT Plus, RC0063, TC Plus |
| Minimum bend radius: |
10 mm |
| Maximum bend radius: |
380 mm |

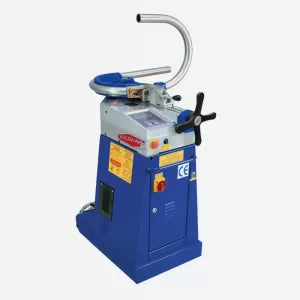

The TB60 is an amazing machine, it has a standard 60×4 mm steel tube capacity, a large Bend Radius and micrometric control of the X axis position.
FEATURES
- Wide Bend Radius: from R10 to R380 mm
- Micrometric control with position display on the X axis
- Overload control system with flashing indicator lights
- Possibility of adding an (optional) A40/P 2-axis positioner to allow the serial production of curves on different planes
- Quick and easy tool change system
- Easy to move thanks to integrated wheels and retractable handle
- Foot control
EDT PLUS Control
- Easy and intuitive control
- 5.0″ display
- Multilingual
- Bend angle programming
- Bend speed setting
- Insertion of compensation value for springback
- Display of load percentage during bending
TC PLUS control
- Intuitive and simplified iconography
- 4.3″ display
- Bend angle programming
- Bend speed setting
- Insertion of compensation value for springback
- Each program can contain up to 30 bends
- Control with manual or programmable mode
- Can bend to the right or left
- Tool database according to the program used
- Immediate language change
- Auto-tuning of the main machine components (only on 7″)
- Quick change function from mm to inches and back
- Ready for 4.0 (optional)
- LAN / Wi-Fi connection (optional)
RC0063 Control
- Easy to program
- Digital display
- Multilingual
- Bend angle programming
- Insertion of compensation value for springback
- Display of load percentage during bending
| Flexion modulus | 10 cm³ |
| Minimum external diameter | 5 mm |
| Maximum Bend Radius(CLR) | 380 mm |
| Minimum Bend Radius(CLR) | 10 mm |
| Installed power | 1.5 kW |
| Power Supply | 220 – 400 V 1 -3 ph / 50-60 Hz |
| Bend speed | 1.5 to 3 rpm |
| Dimensions (Length x Width x Height) | 500 x 1000 x 760 mm |
| Weight | 186 kg |
