Product Description
| Minimum external diameter: |
⌀ 20 mm |
|---|---|
| Maximum outer diameter |
220 mm |

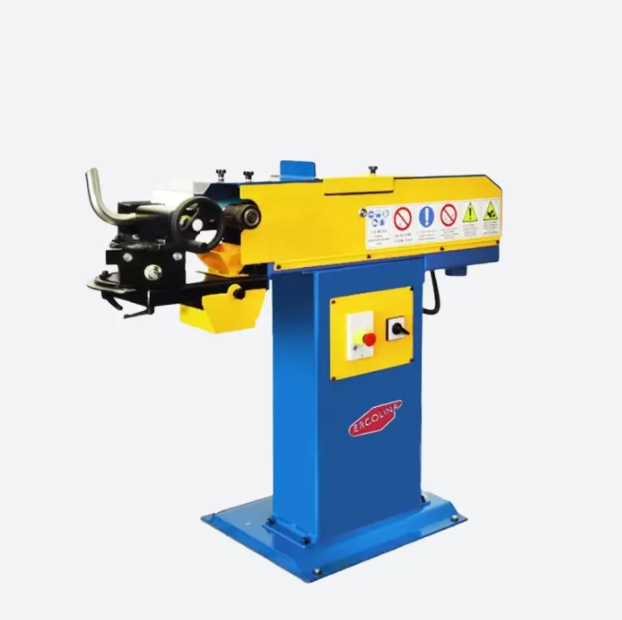

The EN100 is a sensational machine, for unique notching and grinding.
FEATURES
- Tube Notching for angles up to 60° and 76mm in diameter
- Safe and valid alternative to the use of band saws, plasma cutters and cutters
- Patented transverse and longitudinal movement system that extends belt life and reduces heat
- Use of top-quality abrasive belts that allow processing on a wide range of materials including: carbon steel; stainless steel; aluminum, titanium and more
- Graduated vice 0-60° adjustable in height to vary the notching angle and carry out more complex processes
- Patented quick roller change system
- By removing the vice, the machine can be used with the special roller as a conventional grinder.
- Large and practical deburring surface
- Over 25 working rollers available
- Tool-free belt change.
| Notching | Ø 76 mm (3” OD) at 0° Ø 60 mm (2” 3/8 OD) up to 45° Ø 32 mm (1” 1/4 OD) up to 60° |
| Grinding | Ø 140 (5″ 1/2) with kit Front Grinding upon request |
| Standard sanding belt size | 2000 x 100 mm |
| Installed Power | 4 kW |
| Motor speed | 2800 rpm |
| Power Supply | 220/400 V |
| Weight | 200 kg |
| Dimensions | 500 x 1500 x 1500 mm |
