Product Description

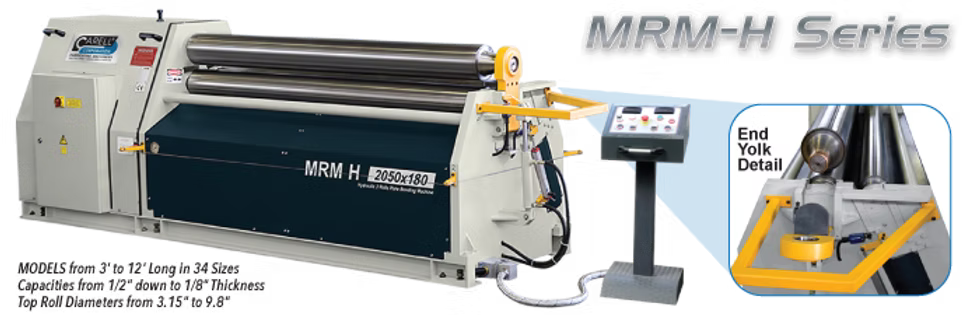

MRM-H SERIES STANDARD FEATURES
-
Lateral Roll is HYDRAULIC actuated from the control console with joystick
-
controlled tilting action for rolling cones. Roll is idle in rotation (Round Rod Grooves Optional)
-
2 LED Readouts to monitor position of bending & pinch rolls
-
Induction Hardened & Polished Surfaces on all 3 rolls
-
Cone Rolling Device for rolling conical shapes
-
Both Upper and Pinch rolls driven by electric motor and oil bath speed reducer through
-
NiCrMo solid stock gears
-
Pinch Roll Pressure adjustment via push buttons
-
Hydraulic Drop End for quick and easy removal of the work piece
-
24V Low voltage Push Button Controls, E-Stop, Safety Trip Wires, Instruction Manual
OPTIONS: Rod Grooves, Lateral & Overhead Material Supports, Variable Speed, 2 Speed
Rotation, Custom Lengths and Dedicated Configurations
MRM-H SERIES SPECIFICATIONS
