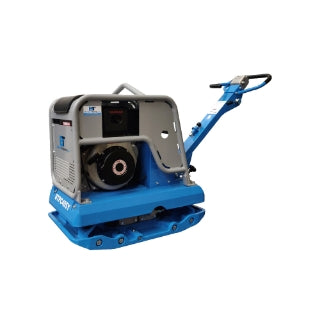

The BTPC405Y reversible plate compactor features a hydraulic reversing mechanism, making it easy to maneuver for forward and backward movement. This compact is designed for durability, with a cast aluminum belt guard to protect the clutch, and a ductile iron base for added longevity. This compactor has a fully enclosed frame, which protects the powerful Yanmar L100 diesel engine for maximum reliability. The plate covers a 19.6 by 35.4 In. area, providing excellent coverage, with a travel speed between 65 to 82 feet per minute. It’s even great on slopes up to a 35% climb gradient, and easy to transport with an integrated hoist hook recess.
  • Enclosed frame to protect the Yanmar L70 diesel engine
  • Hydraulic reversing mechanism allows forward and backward movement
  • Cast aluminum throttle and ductile iron base
  • 19.7 by 35.4 In. plate provides great coverage for compaction
  • Travels at 65 to 82 feet per minute, at up to 35% climbing gradient
  • 50k Newton centrifugal force, with 4,400 VPM frequency
  • Easy to load and unload with hoist hook recess
Equipment Type Reversible Plate Compactor
Centrifugal Force (Lb.) 11,240 lb.
Dimensions 35 in. L x 20  in. W x 55 in. H
Engine L100 Diesel
Engine Brand Yanmar
Gradient Climb 35%
Horsepower 6.5 HP
Plate Size L x W (In.) 35.4 in. L × 19.7 in. W
Travel Speed 75 Ft./Min.
Vibrations Per Minute 4400
Warranty 1 Year
Water Tank No
Weight 992 lb.
