Key Features
How The Whynter MIM-14231SS Marine Ice Maker Compares To The UIM-502SS
Boat, RV, and outdoor kitchen owners evaluating an undercounter ice maker usually face this question: should I choose this MIM-14231SS built specifically for marine and mobile environments, or the larger UIM-502SS built for kitchen and bar use with higher daily output.
| Feature | Whynter MIM-14231SS, Marine | Whynter UIM-502SS, Kitchen/Bar |
|---|---|---|
| Built For | Boats, yachts, and RVs, marine-grade hardware | Kitchens and bar areas |
| Ice Production | 23 lbs per 24 hrs | Up to 80 lbs per 24 hrs |
| Ice Type | Crescent-shaped | Clear ice cubes with water recirculation system |
| Water Usage | Less than 3 gallons per day | Higher usage given greater output |
| Best Suited For | Mobile, marine, or harsh-environment installations | Fixed kitchen or bar installations wanting maximum daily ice |
Product Description

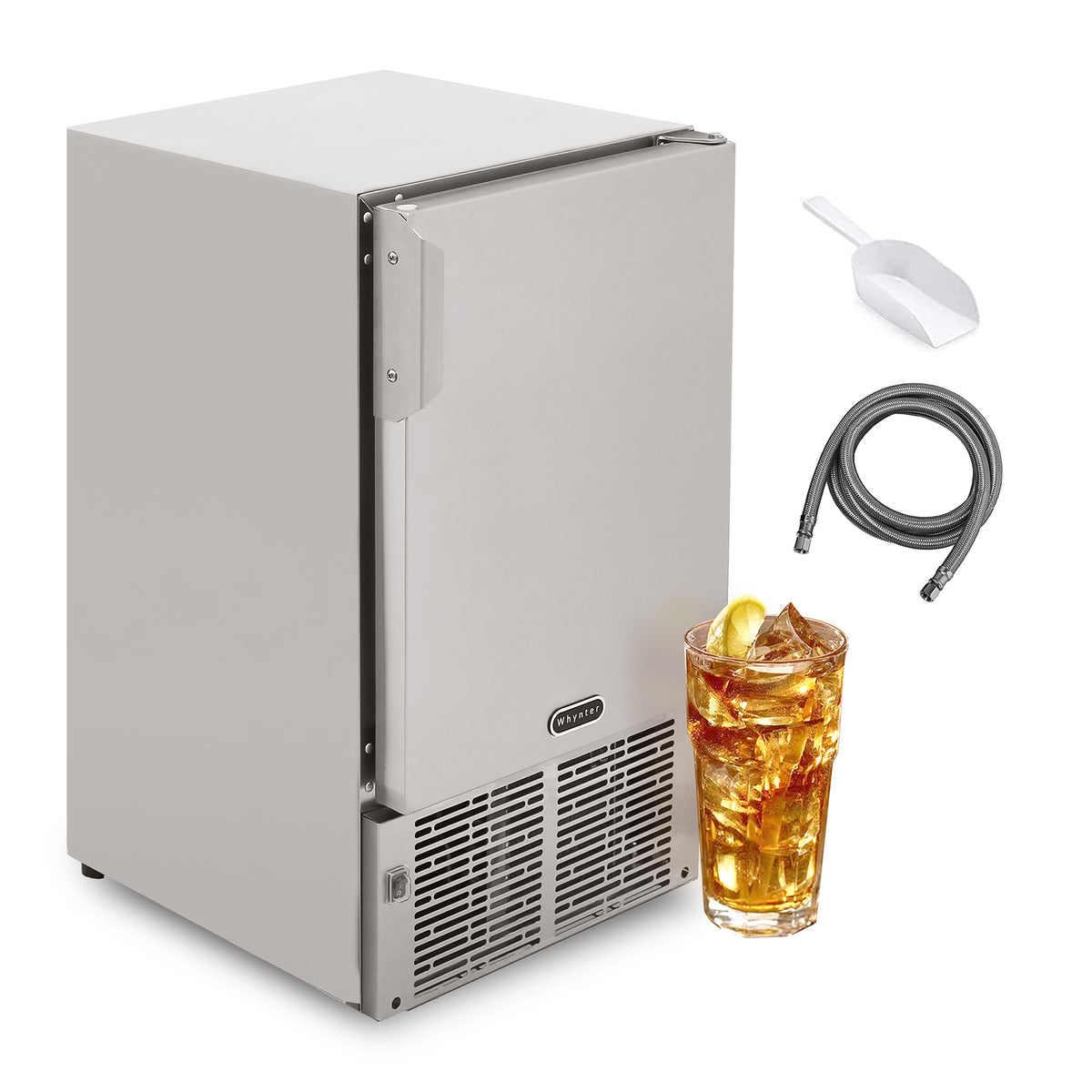

Specifically designed and engineered for boats, yachts, and RVs, the Whynter MIM-14231SS 14″ Undercounter Automatic Stainless Steel Marine Ice Maker is the answer to your mobile ice making requirements. With a full stainless steel housing and marine-grade components, this heavy-duty and robust ice maker produces an impressive 23 lbs of ice per day and is able to hold up to 12 lbs of ice.
Undercounter/Built-In Installation Ready
Aiming to conserve space with a stylish look, the 14 inch width makes this ideal for in-cabinet installation with no additional clearance required around the sides. The front-venting design allows you to install this stainless steel ice maker under a counter or in-cabinet for a seamless appearance.
Marine-Grade Hardware
Featuring high grade stainless steel and hardware components that are UV and corrosion-resistant the unit will have superior durability in harsh environments. The ice maker also comes standard with a 6 foot highly durable braided stainless steel waterline connection hose.
Latch Secured Reversible Door
The Whynter MIM-14231SS can be reversed to open from either the left or right to complement the flow of your space design. The Whynter MIM-14231SS is equipped with a latch-lock that keeps the door securely closed under various mobile conditions while allowing easy access when required.
Water Efficient and Easy installation
Using less than 3 gallons of water to to produce 23 lbs of ice a day, the ice maker is ideal for mobile use.
Optional Flange Kit
An optional accessory sold separately is the Whynter MIM-FK-14231 Flange Kit (2-in-1 set for Flush-to-Cabinet and for Flush-to-Door) that allows seamless installation of the Whynter MIM-14231SS and a greater degree of personalized application. The flange kit is used for a consistent flush facade and additional security by fastening the flange to a cabinet.
*For installation, please consult a professional plumber.
| Ice Type |
Crescent-shaped Ice |
|---|---|
| Color |
Stainless Steel |
| Installation Type |
Freestanding / Built-in |
| Ice Storage Capacity (lbs) |
Up to 12 lbs |
| Ice Formation |
23 lbs/24 hours |
| Compressor |
CFC-free |
| Refrigerant |
R600a |
| Maximum Power Consumption |
120W / 1.8A |
| Unit Dimensions |
14"W x 16.25"D x 24.5"H |
Features
● Built-in or freestanding installation (front venting)
● Makes 23 lbs of crescent-shaped ice cubes in 24 hours
● Keeps ice frozen, no drain installation required
● Sleek stainless steel door and housing
● Stores up to 12 lbs of ice
● Auto shut-off when ice bin is full
● Ice scoop and ice bin included
● Easy-to-use, one-button operation
● 5 foot 1/4″ food grade water line connection included
● Manual Defrost
● High efficiency CFC-free compressor
● Refrigerant: R600a
● Power Supply: 115V/60Hz
● Rated current: 1.8A
● UL Listed
● Product dimensions: 14″ W x 16.25″D x 24.5″ H (With Handle: 14″ W x 17.5″D x 24.5″ H)
● Package dimensions: 19″ W x 17″D x 26″ H
● Net weight: 52 lbs
● Gross weight: 57 lbs
● UPC: 852749006078
OPTIONAL ACCESSORY SOLD SEPARATELY:
MIM-FK-14231 – 2-in-1 set for Flush-to-Cabinet and for Flush-to-Door
*This unit comes with one year limited warranty. See product chemical disclosures here
Full Spec Sheet
| Model | MIM-14231SS |
| Ice Type | Crescent-shaped |
| Ice Production | 23 lbs per 24 hrs |
| Ice Storage | Up to 12 lbs |
| Installation | Freestanding or built-in |
| Refrigerant | R600a, CFC-free compressor |
| Power | 115V/60Hz, 120W, 1.8A |
| Dimensions | 14 in W x 16.25 in D x 24.5 in H |
| Net Weight | 52 lbs |
| Certification | UL Listed |
| Optional Accessory | MIM-FK-14231 flange kit |
| Warranty | 1-year limited |
