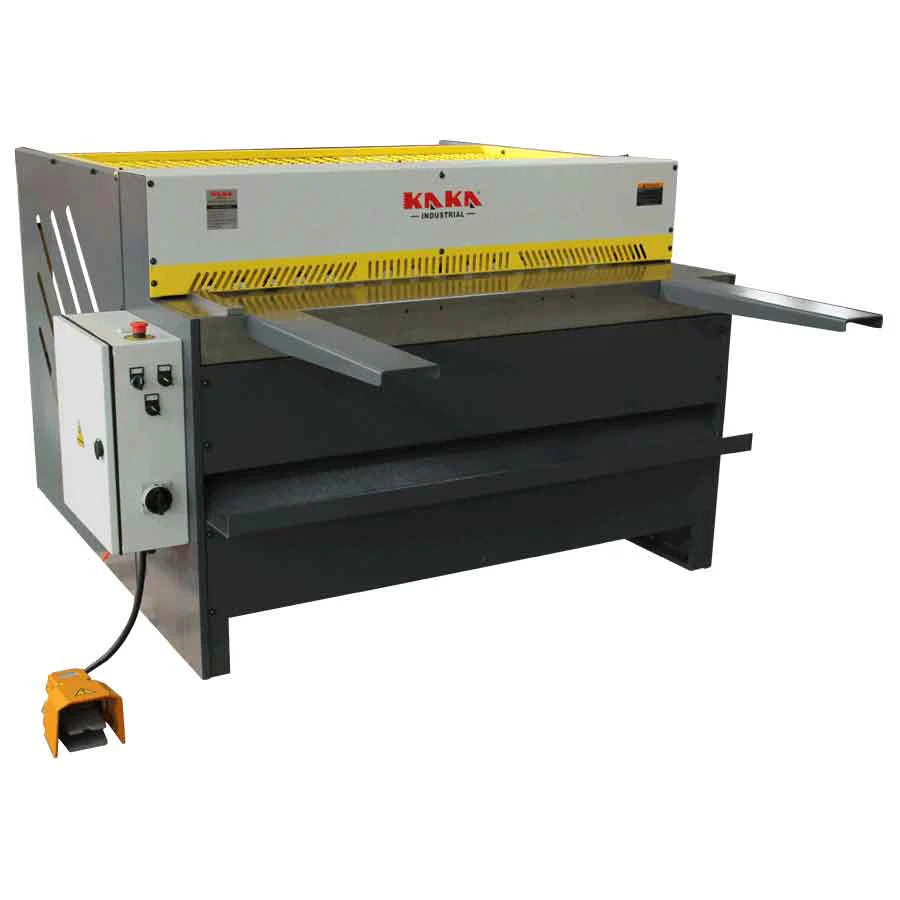

Product Description
1. Runs on 220V-3PH power, 4.0 kW powerful motor
2. Max. cutting 48" width, and 11Ga at full width cutting
3. Manual adjustable 25" back gauge
4. Two shearing edge to get long cutting life
5. Back side with pneumatic steel catcher
6. Cutting width smaller than 4.3" could slide from the front sheet pallet
7. Hold-down to fixed the plate well for precise cutting
8. 2 modes on the operator console
9. Inch mode: Jog the control and ease the blade down to the material.
10. Single mode: Make one cut cycle per foot pedal push.
| Item No. | 186108 | |
| Model | Q11-4811A | |
| Max. shearing thickness | 11 Ga. | |
| Max. shearing width | 49" | |
| Shearing angle | 2° | |
| No. of stroke | 28 times per min. | |
| Motor Power | 3.0 kW | |
| Back gauge | 25" | |
| Packing Size | 73"x45"x53" | |
| N.W/G.W | 2160/2515 lbs | |
