Product Description
Powerful Cutting Ability.

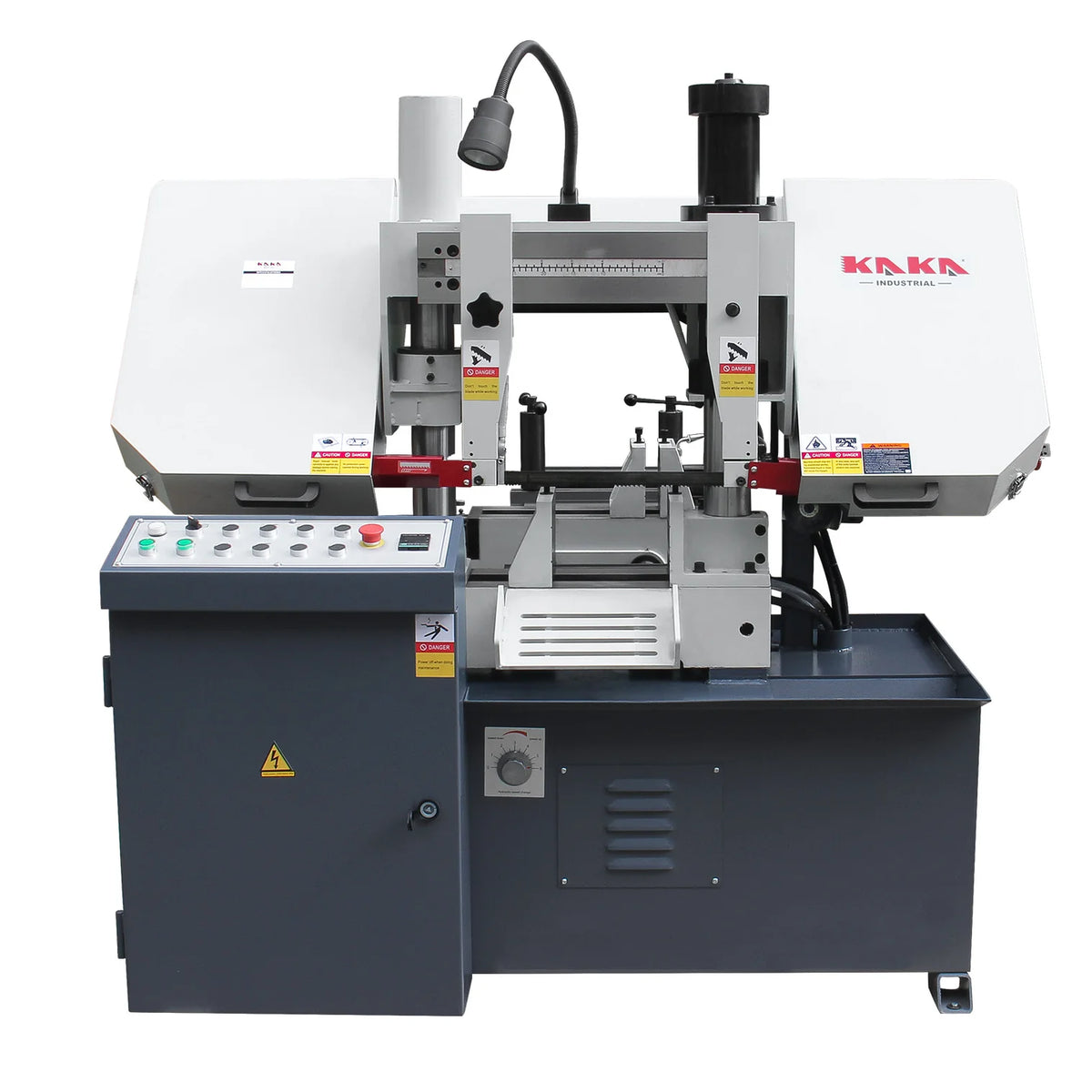

This industrial-grade double-column bandsaw runs on 220V power. It has a strong 3-horsepower motor and 3-step cutting speeds of 27, 45, and 69 MPM.
With a V-belt drive, the powerful motor provides the necessary torque to drive the bandsaw blade through metal workpieces efficiently and accurately.
This bandsaw can cut various materials, including metals, plastics, composites, wood, and rubber.
Flexibility and Versatility
This metal-cutting bandsaw has all the features needed for professional results in metal cutting, allowing users to perform a variety of cuts.
With its 3-step blade speed options, you can easily adjust the cutting speed to match the material you're working with, guaranteeing optimal performance and clean cuts.
Hydraulic cylinders provide precise control over lowering the cutting blade, offering smooth and consistent operation and resulting in clean and uniform cuts. Plus, the built-in cooling system ensures that the blade and workpiece stay cool during operation, prolonging their lifespan.
The hydraulically controlled shuttle vise enables automatic feeding while ensuring consistent material feeding and precise lengths for repetitive cutting.
Safety
Hydraulic systems enhance safety by providing operators with reliable and responsive control over the cutting process. The band saw features a coolant system and an automatic shut-off setting. It also has a heat-treated high-carbon steel blade, brass fittings, and a full belt and blade guards complement.
Wide Applications
The double-column swivel headband saw is a versatile tool used in various industries and settings, including metalworking industries, fabrication shops, maintenance facilities, educational settings, and hobbyist workshops.
Standard accessories: working light, coolant system, standard support with roller
1. Double column metal cutting bandsaw
2. Belt drive, 3 cutting speed
3. Automatic feed and cut
4. 3-position clamping vice for bulk cutting
5. Auto shut off when cutting completed
6. Feeding distance adjustable via limited switch.
|
Item No.
|
271212
|
|
Model
|
TBK-11B
|
|
Max. cutting capacity
|
∅11"-11"x11"
|
|
Blade speed
|
28,45,69m/min
|
|
Feed speed
|
Hydraulic variable speed
|
|
Blade size
|
1"x0.035"x138"
|
|
Workpiece clamping
|
Hydraulic
|
|
Blade tensioning
|
Mechanical
|
|
Main motor power
|
3.0 kW
|
|
Hydraulic station
|
0.55 kW
|
|
Drive
|
V-belt
|
|
Packing size
|
88.5"x79"x64.5"
|
|
N.W./G.W.
|
2182/2557 lbs
|
