Key Features
How The Maksiwa CBC.TPM Compares To Other Maksiwa Edgebanders
Shops evaluating edgebanding equipment usually face this question: should I start with a portable handheld unit for curved and small pieces, or invest in a full automatic pre-milling machine for daily straight-line production?
| Feature | Maksiwa CBC.FLEX, Handheld | Maksiwa CBC.TPM, Automatic Pre-Milling |
|---|---|---|
| Feed Type | Manual, hand-guided | Automatic, 21 ft/min |
| End Trim | Not applicable | Pneumatic, automated |
| Panel Thickness | 1/2 to 1-7/8 in | 10-40mm |
| Weight | 21 lbs, fully portable | 1,146 lbs, stationary production machine |
Product Description

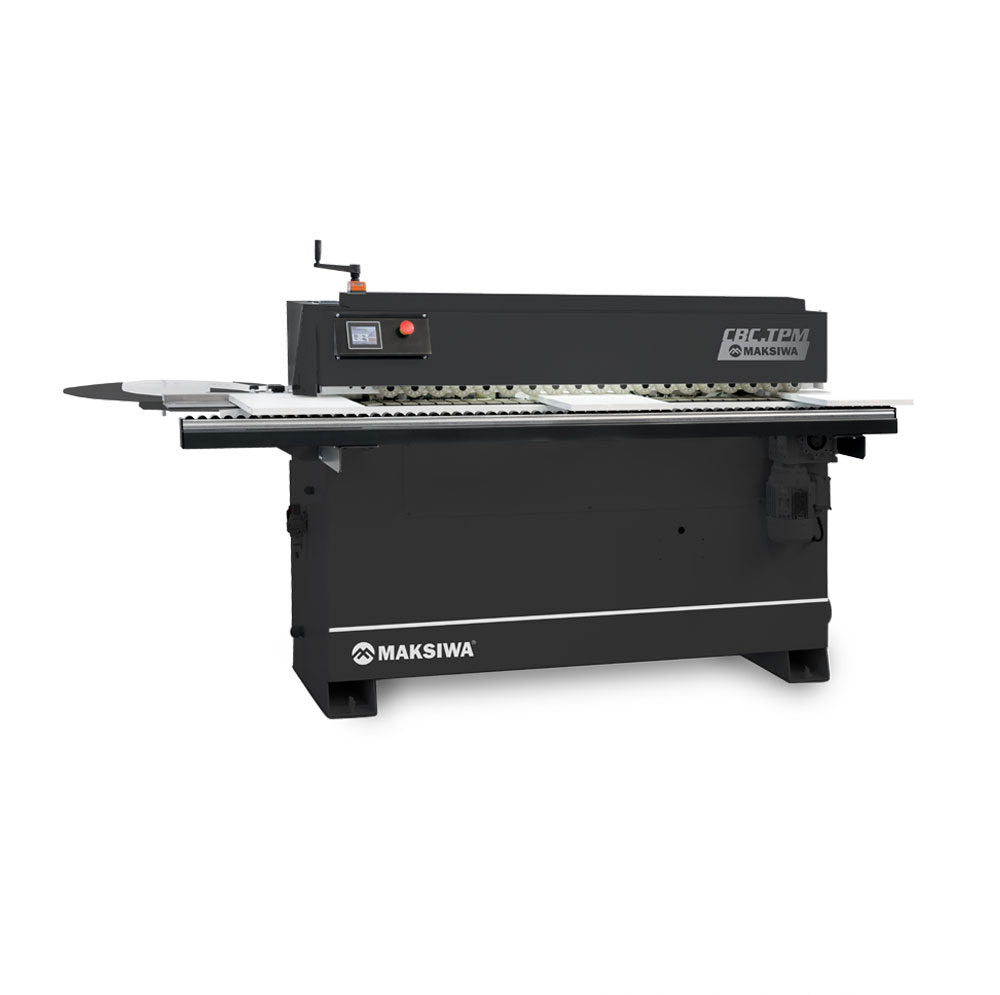

The Maksiwa CBC.TPM Automatic Edgebander combines precision and efficiency with a compact design, making it ideal for workshops with limited space. It features pre-milling, a gluing unit, a multi-function group for end trimming and top & bottom trimming, glue scraping, buffing, and vertical rounding for versatile performance. Equipped with a touchscreen panel, this machine ensures ease of operation and delivers a flawless finish. Each high-frequency motor is controlled by an independent electronic converter.
Pre-milling in a small footprint
- Edge Tape: 0.4-2 mm
- Panel Thickness: 10-40mm
- 1 Phase 220V 60Hz
- Glue Scraper Unit
- Buffing Unit
- End Trimming HF Motor
- Pre-milling Unit 1 HF Motors
- Glue Pot Capacity 0.5kg | 1lbs Teflon Coated
- Automatic feeding Speed 21 ft/min
- Net Weight 1146 Lbs | 520 kgs
- Compact Design
- Melamine/PVC/ABS/PP
| CBC.TPM | SAE | METRIC |
|---|---|---|
| Automatic Feeding speed | 21 ft/min | 6.5 m/min |
| Panel thickness Min/Max | - | 10 - 40 mm |
| Max Pre-milling Height | 1” | 30 mm |
| Edgebanding thickness | 0.0157" - 0.07" | 0.4-2mm |
| Glue Pot Capacity | 1lbs | 0.5 kg |
| Max Edgebanding Height | 1" | 30 mm |
| Minimum panel width | 4 3/4" | 120 mm |
| Minimum panel length | 7 7/8" | 200 mm |
| Extendable Panel Support Rail Length | 83 1/2" | 2122 mm |
| Extension table Max Width | 10" | 257 mm |
| Size of Dust Collector Ports | 5" | 127mm |
| Minimum Dust Collection Requirements | 1236 CFM | 2100 m3/h |
| Air Pressure Requirement | 7 SCFM @ 90 PSI | 0.7 Mpa 200 L/min |
| Edgebanding coil Support Diameter | 59" | 1498 mm |
| Recommended Glue Temperature Range | 356°F - 410°F | 180°C - 210°C |
| Max. machine dimensions (LxWxH) | 93 1/2”x 40 13/16”x 53” | 2376 x 1028 x 1347 mm |
| Net weight | 1146 LBS | 520 KGS |
| Shipping dimensions (LxWxH) | 91” x 30” x 57” | 2320 x 760 x 1448 mm |
| Glue Type | Granulated Hot-Melt EVA | Granulated Hot-Melt EVA |
| Electrical Information | 1 Phase 220V 30 Amps 60Hz | 1 Phase 220V 30 Amps 60Hz |
| Sound Rating | 80 dB | 80 dB |
| Motor/Electrical | Specs |
|---|---|
| Electrical Requirement | 1 Phase 220V 30 Amps 60 Hz |
| Conveyer Motor | 60 Hz 1390 RPM .66 kw |
| Top/Bottom Trimmer HFM | 200 Hz 12,000 RPM .27kw |
| End Trimmer Motor | 200 Hz 12,000 RPM .27kw |
| Front/Rear Pre-Milling HFM | 150 Hz 9000 RPM .75/.25Kw |
| Top Buffing Motor | 60 Hz 1680 RPM .11kw |
| Bottom Buffing Motor | 60 Hz 1680 RPM .11kw |
| Sound Rating | 80 dB |
| Technical Info | CBC Flex | CBC.E | CBC.MR | CBC/2.MR | CBC.T | CBC.TPM | CBC.PCR |
|---|---|---|---|---|---|---|---|
| Eletrical specs | 1 Phase 110V 550W 60Hz | 1 Phase 110V 1500W 60Hz | 1 Phase 110V 1500W 60Hz | 1 Phase 110V 1500W 60Hz | 1 Phase 220V 60Hz 30A | 1 Phase 220V 60Hz 30A | 1 Phase 220V 60Hz 30A |
| Feeder Speed | 0-19 ft/min | 0-18 ft/min | 0-26 ft/min | 0-26 ft/min | 0-16ft/min | 21ft/min | 18ft/min |
| Edgebanding Thickness | 0.4 – 1mm | 0.4 – 2mm | 0.4 – 2mm | 0.3 – 2mm | 0.4 – 3mm | 0.4 – 2mm | 0.4 – 3mm |
| Glue Temperature | 130° to 180° C | 130° to 180° C | 130° to 180° C | 130° to 180° C | 180° to 210° C | 180° to 210° C | 180° to 210° C |
| Glue Pot Type | Low Temp. Granulated Hot-Melt EVA | Low Temp. Granulated Hot-Melt EVA | Low Temp. Granulated Hot-Melt EVA | Low Temp. Granulated Hot-Melt EVA | High Temp. Granulated Hot-Melt EVA | Granulated Hot-Melt EVA | Granulated Hot-Melt EVA / PUR |
| Workarea | - | 39 3/8" x 15 3/4" | 101 3/4" x 15 3/4" | 101 3/4" x 15 3/4" | 78 3/4" x 10 2/5" | 93 1/2" x 41" | 119"x40" |
| Max Edgebanding Height | 1/2" to 1 7/8" | 3" | 3" | 3" | 2" | 1" | 2" |
| Panel Thickness | 1/2" to 1 7/8" | 3" | 3" | 3" | 12-45mm | 10-40mm | 8-50mm |
| Weight | 21 Lbs | 114 Lbs | 242.5 Lbs | 330 lbs | 1025 Lbs | 1146 Lbs | 1653 Lbs |
| Machine Dimension | 11" x 14" x 13 1/2" | 47" x 31" x 42" | 101 3/4" x 35 1/2 x 43" | (101 3/4") 58" x 43" x 43" | 112" x 63" x 51" | 93. 1/2" x 41" x 53" | 119" x 41" x 49" |
| End Trim | - | Manual | Manual | Manual | Pneumatic | Pneumatic | Pneumatic |
Documents
Instructions
The Glue Recommendation
Full Spec Sheet
| Model | CBC.TPM |
| Automatic Feed Speed | 21 ft/min |
| Panel Thickness | 10-40mm |
| Max Pre-Milling Height | 1 in |
| Edgebanding Thickness | 0.4-2mm |
| Glue Pot Capacity | 1 lb, Teflon coated |
| Dust Port Size | 5 in |
| Electrical | 1-Phase 220V, 30 Amps |
| Net Weight | 1,146 lbs |
| Sound Rating | 80 dB |
This pre-milling edgebander handles thicker jobs without issues. Shipping packaging was good and arrived when they said.
Handles pre-milling really well and feels pretty solid. Packaging was clean and complete.
Pre-milling function does what it should and saves time. Arrived well packed.
