Key Features

✓ Perfect for applying edge banding tape to concave and convex curved pieces

✓ Super portable at only 21 lbs, ideal for extensive jobs

✓ Digital temperature control and adjustable feeder speed

✓ Converts to stationary use with the included mounting plate

✓ Fix clamps allow installation on any workbench

✓ Backed by a 2-year warranty

How It Compares

How The Maksiwa CBC.FLEX Compares To Other Maksiwa Edgebanders

Woodworkers evaluating edgebanding tools usually face this question: should I invest in a full automatic production edgebander, or start with a portable handheld unit for curved pieces and lighter jobs?

Feature	Maksiwa CBC.TPM, Automatic Pre-Milling	Maksiwa CBC.FLEX, Handheld
Portability	Stationary, 1,146 lbs	Handheld, 21 lbs
Curved Piece Capability	Straight-line panels only	Designed specifically for concave and convex curves
Feed	Automatic, 21 ft/min	Manual, hand-guided, 0-19 ft/min
Setup	Dedicated production line placement	Mounts on any workbench with included clamps

Product Description

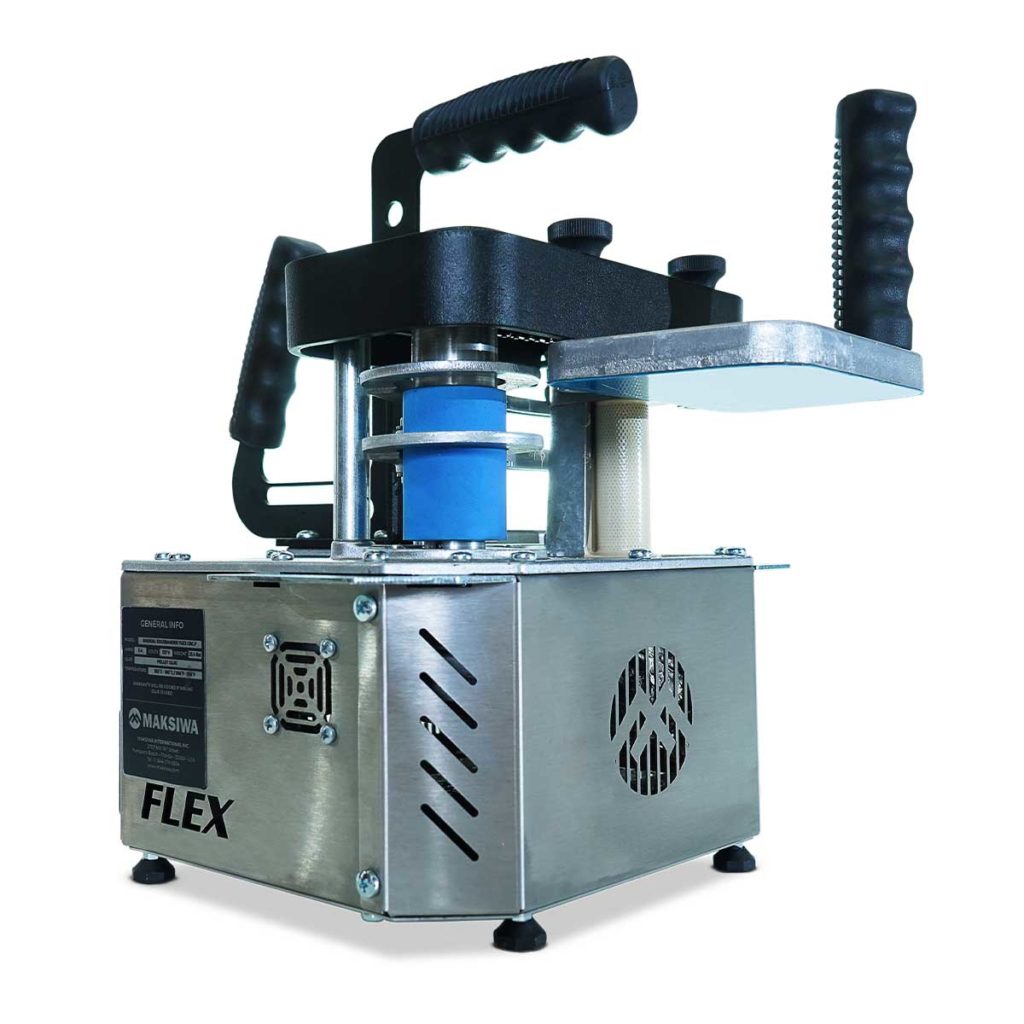

The hand-held CBC FLEX is perfect to apply edge banding tape to concave and convex curved pieces. Being super portable and weighing only 21 pounds, this machine is ideal for extensive jobs. It has a digital temperature control and adjustable feeder speed. The CBC FLEX is perfect for the woodworker who needs agility and versatility in their daily production.

VERSATILITY

Perfect for bonding edge tapes to curved pieces.

EASY OPERATION

CBC FLEX is lightweight and easy to operate.

STATIONARY

The FLEX is suittable for mobile or stationary use. Conversion to become a stationary edge bander using the accompanying mounting plate.

EASY INSTALLATION

With the Fix Clamps, the CBC FLEX can be installed in any workbench.

Technical Information	CBC FLEX
Glue	Granulated Hot-Melt
Glue Temperature	130° to 180º C
Motor specs	1 Phase 127 V 5.5 A 700 W
Tape thickness	0.3 mm – 1 mm
Max. tape width	0-35/64” to 1-57/64”
Feeder speed	0 to 19 ft/min
Weight	21 Lbs
Warranty	2 years

Technical Info	CBC Flex	CBC.E	CBC.MR	CBC/2.MR	CBC.T	CBC.TPM	CBC.PCR
Eletrical specs	1 Phase 110V 550W 60Hz	1 Phase 110V 1500W 60Hz	1 Phase 110V 1500W 60Hz	1 Phase 110V 1500W 60Hz	1 Phase 220V 60Hz 30A	1 Phase 220V 60Hz 30A	1 Phase 220V 60Hz 30A
Feeder Speed	0-19 ft/min	0-18 ft/min	0-26 ft/min	0-26 ft/min	0-16ft/min	21ft/min	18ft/min
Edgebanding Thickness	0.4 – 1mm	0.4 – 2mm	0.4 – 2mm	0.3 – 2mm	0.4 – 3mm	0.4 – 2mm	0.4 – 3mm
Glue Temperature	130° to 180° C	130° to 180° C	130° to 180° C	130° to 180° C	180° to 210° C	180° to 210° C	180° to 210° C
Glue Pot Type	Low Temp. Granulated Hot-Melt EVA	Low Temp. Granulated Hot-Melt EVA	Low Temp. Granulated Hot-Melt EVA	Low Temp. Granulated Hot-Melt EVA	High Temp. Granulated Hot-Melt EVA	Granulated Hot-Melt EVA	Granulated Hot-Melt EVA / PUR
Workarea	-	39 3/8" x 15 3/4"	101 3/4" x 15 3/4"	101 3/4" x 15 3/4"	78 3/4" x 10 2/5"	93 1/2" x 41"	119"x40"
Max Edgebanding Height	1/2" to 1 7/8"	3"	3"	3"	2"	1"	2"
Panel Thickness	1/2" to 1 7/8"	3"	3"	3"	12-45mm	10-40mm	8-50mm
Weight	21 Lbs	114 Lbs	242.5 Lbs	330 lbs	1025 Lbs	1146 Lbs	1653 Lbs
Machine Dimension	11" x 14" x 13 1/2"	47" x 31" x 42"	101 3/4" x 35 1/2 x 43"	(101 3/4") 58" x 43" x 43"	112" x 63" x 51"	93. 1/2" x 41" x 53"	119" x 41" x 49"
End Trim	-	Manual	Manual	Manual	Pneumatic	Pneumatic	Pneumatic

Documents

Instructions

The Glue Recommendantion

Full Spec Sheet

Model	CBC.FLEX
Glue	Granulated Hot-Melt
Glue Temperature	130-180 C
Motor	1-Phase, 127V, 5.5A, 700W
Tape Thickness	0.3mm to 1mm
Max Tape Width	0.55 to 1.89 in
Feeder Speed	0 to 19 ft/min
Weight	21 lbs
Warranty	2 Years
