Key Features
How The Maksiwa LBP.13 Compares To The Maksiwa LBM.13
Cabinet shops evaluating line boring machines usually face this question: should I get the manual LBM.13, or step up to this pneumatic LBP.13 for faster, more consistent cycles?
| Feature | Maksiwa LBM.13, Manual | Maksiwa LBP.13, Pneumatic |
|---|---|---|
| Operation | Manual | Pneumatic |
| Cycle Speed | Operator-dependent | Faster, consistent pneumatic actuation |
| Spindles | 13, 6 left and 7 right | 13, 6 left and 7 right |
| Best Suited For | Lower-volume, budget-conscious shops | Higher-volume shops wanting faster cycle times |
Product Description

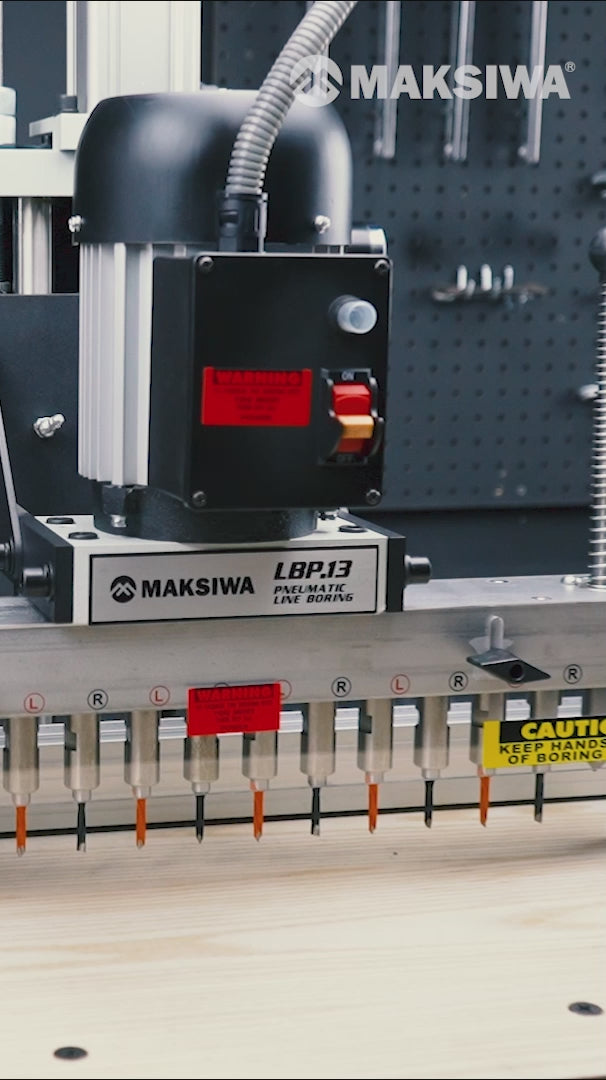

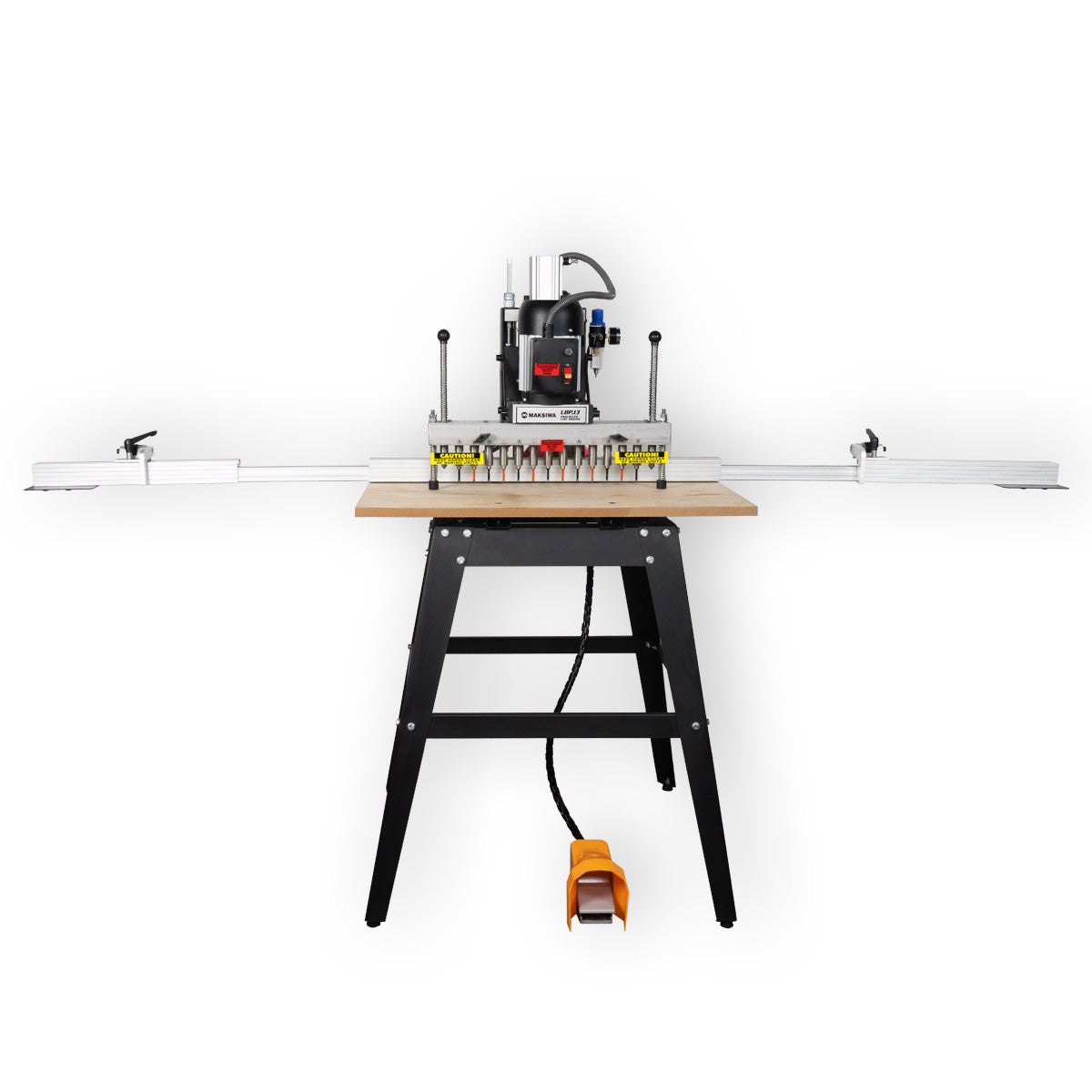

All the same great features of the Manual version with the addition of the pneumatic system, the LBP.13 has a lubricated aluminum head, heat treated steel gears, 1 HP motor, 13 stainless-steel spindles, extendable fence guide up to 89” and 2 fence stops.

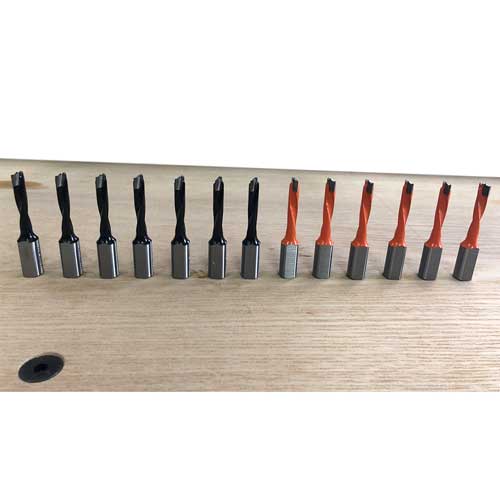

DRILL BITS
Drill bits set included.
INDEXING PINS
Step and repeat indexing pins (left and right).

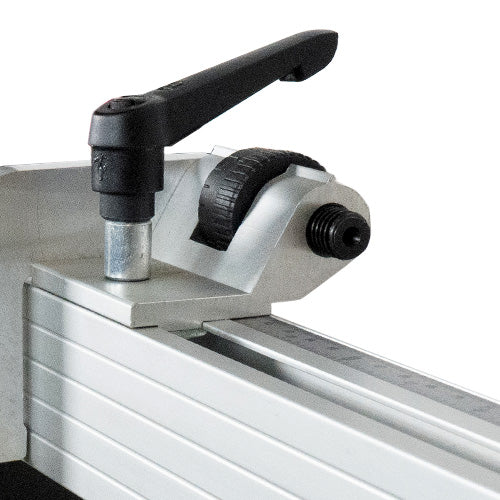

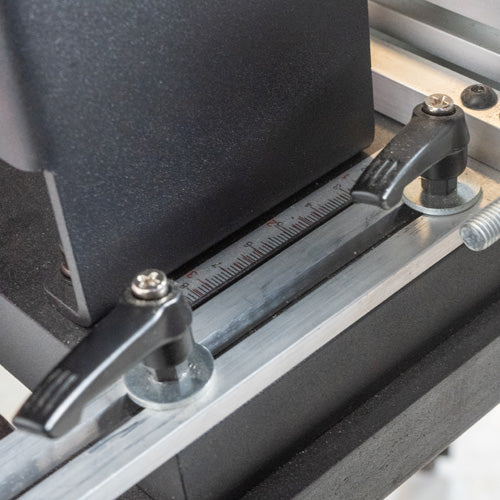

ADJUSTABLE X & Y AXIS FLIP STOPS
Adjustable X & Y axis flip stops.

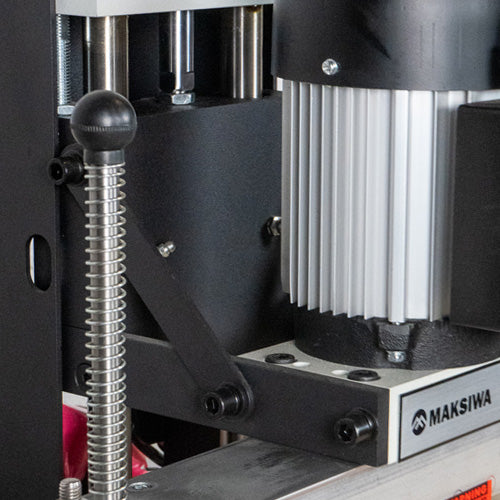

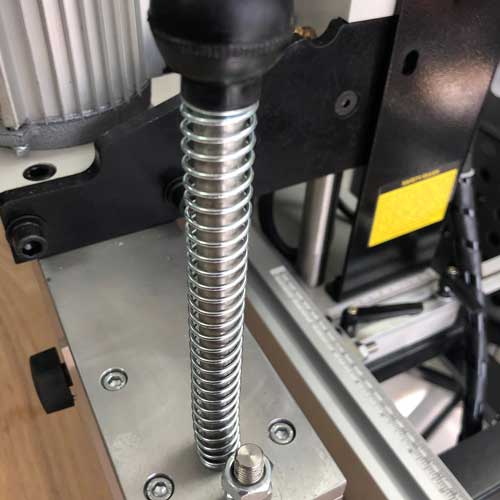

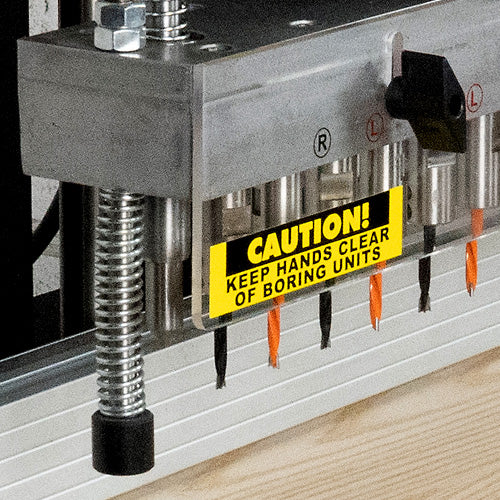

SPRING LOADED HOLD DOWNS
Perfect to fix the workpieces.
| Technical Information | LBP.13 |
|---|---|
| Motor | 1HP 110V 1 Phase 10A 60 HZ |
| Prewired | 110 V, Single – Phase – 10 A / 5 A |
| Table Size | 31"x 15 1/2" |
| Spindle Speed | 3.450 RPM |
| Fence Stops | 2 |
| Expandable Fence Guide | Max 89" |
| Operation | Pneumatic |
| Floor to Table Height | 34" |

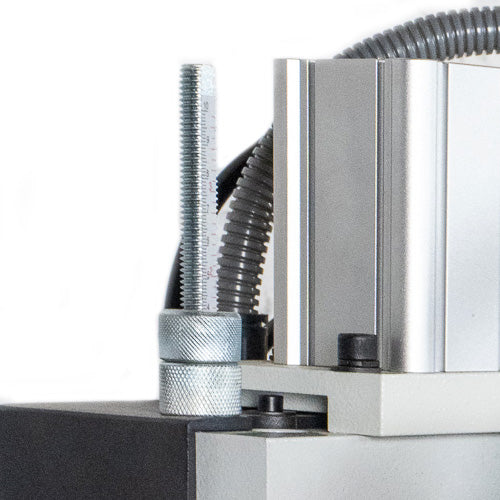

| Max. Depth of Stroke | 2.5" |
| Length of Fence | 61.5-5-91.5" |
| Number of Spindles | 13 (6 Left and 7 Right) |
| Distance Between Spindle Centers | 32 mm |
| Shipping Weight | 155 Lbs |
| Warranty | 2 years |
Documents
Instructions
Full Spec Sheet
| Model | LBP.13 |
| Motor | 1 HP, 110V, 1-Phase, 10A |
| Table Size | 31 x 15-1/2 in |
| Spindle Speed | 3,450 RPM |
| Operation | Pneumatic |
| Max Depth of Stroke | 2.5 in |
| Number of Spindles | 13, 6 left and 7 right |
| Shipping Weight | 155 lbs |
| Warranty | 2 Years |
