Key Features
✓
Delivers accurate 35mm hinge cup bores using a carbide-tipped bit
✓

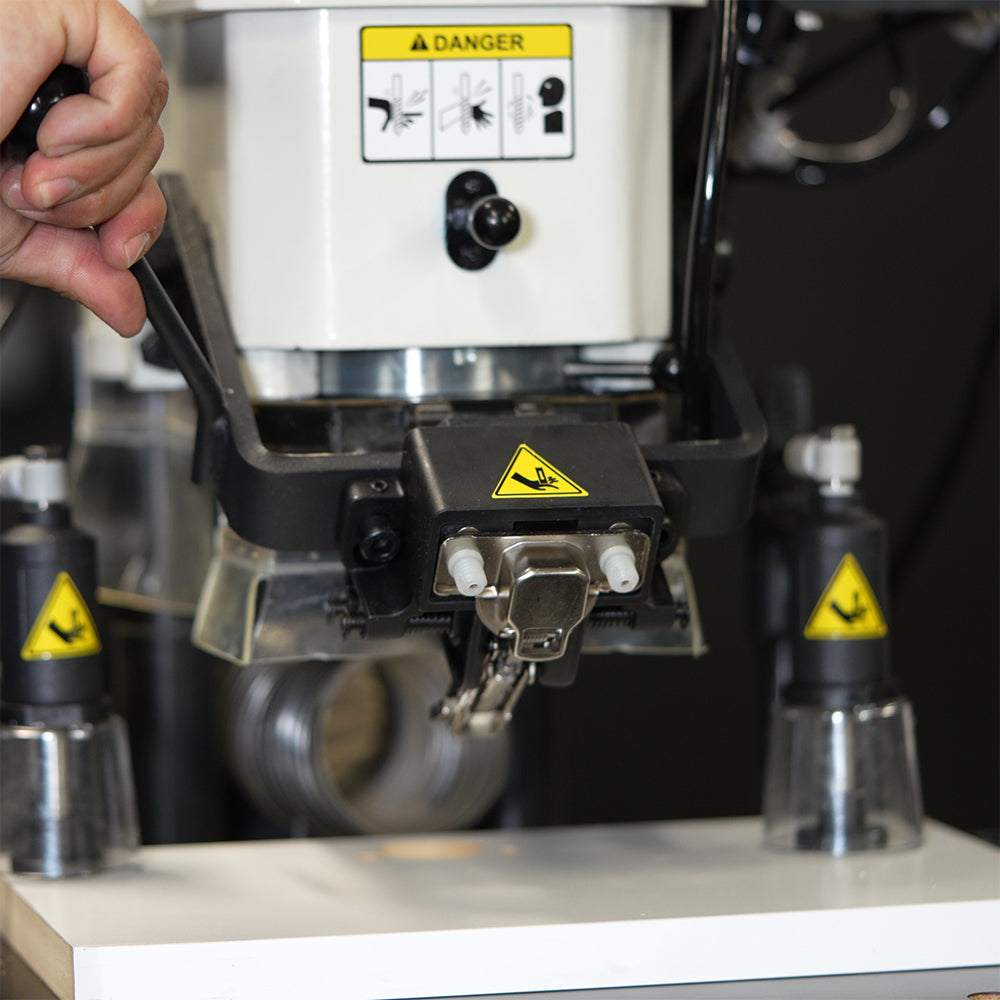

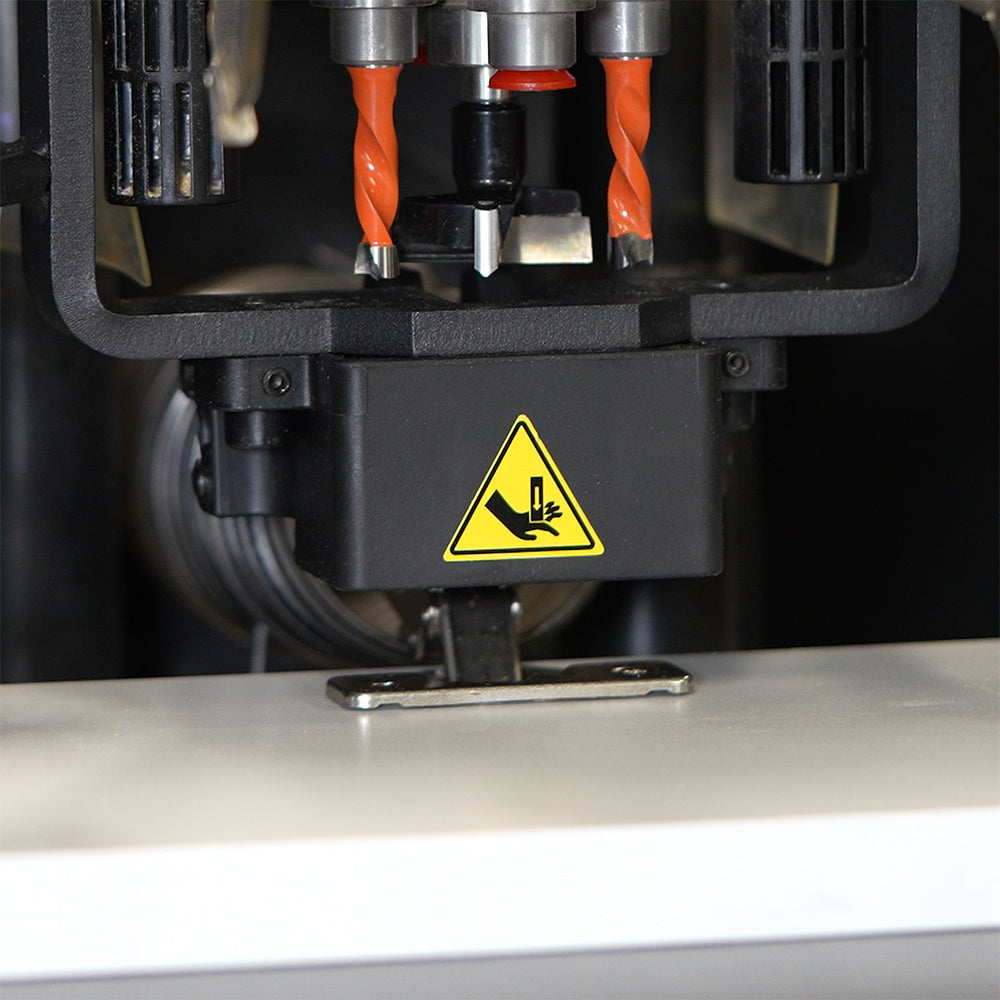

Ideal for hinges, mounting plates, and connectors
✓
1.5 HP motor for consistent, reliable performance
✓
Simple setup with easy adjustments for repeatable results
✓
Compact footprint suited for cabinetry and furniture production
✓
2 left and 2 right stops for fast, repeatable positioning
Product Description

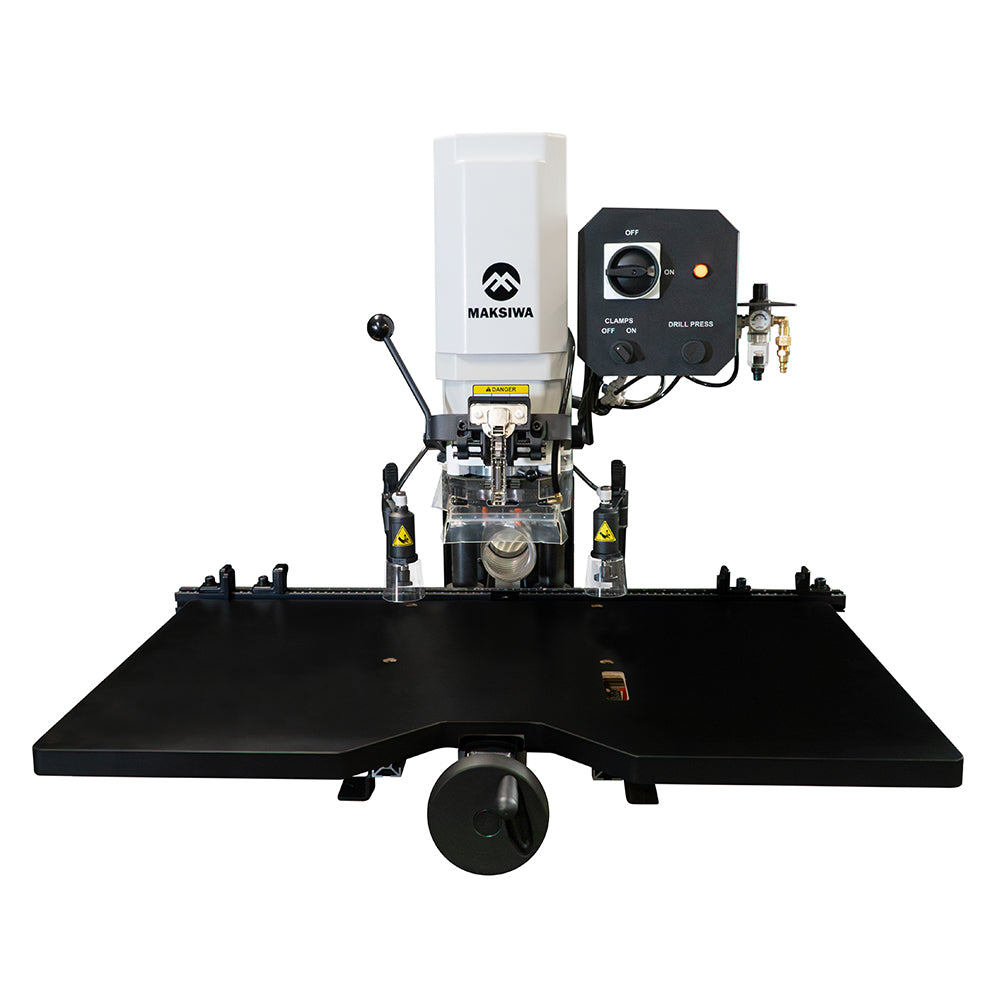

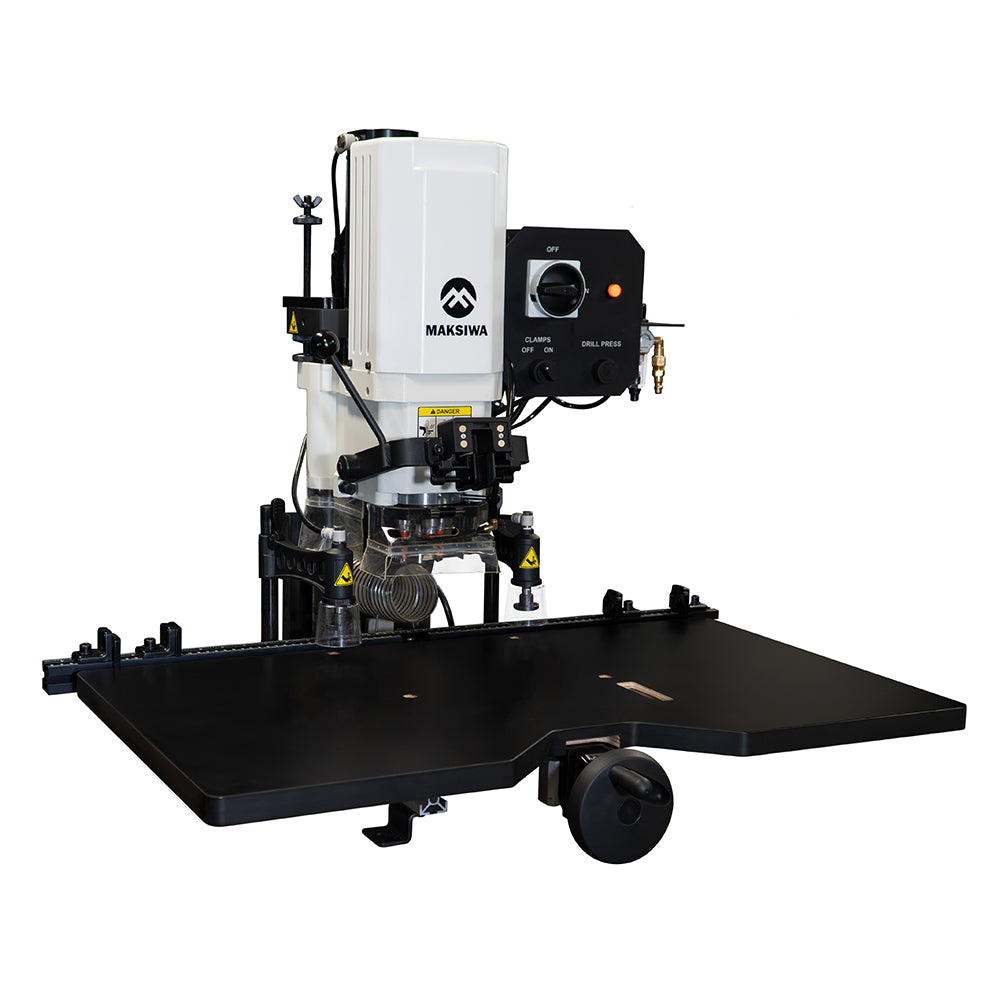

The Maksiwa HBM.1000 is a compact, high-precision machine designed for efficient hinge and hardware installation in cabinetry and furniture production. Powered by a 1.5HP motor, it delivers accurate 35 mm hinge cup bores using a carbide-tipped bit—ideal for hinges, mounting plates, and connectors.
With simple setup, easy adjustments, and reliable performance, the HBM.1000 is perfect for streamlining your hinge installation process while ensuring consistent results every time.
| Technical Information | HBM.1000 |
|---|---|
| Electrical specs | 1 Phase - 110V 13.6 AMPS / 220V 6.8 AMP |
| Motor Specs | 1.5 HP / 1.1 KW 3400 RPM |
| Table Size | 18” x 31 - 1/2” | 460 x 800 MM |
| Machine table height | 5 - 3/8” 136MM |
| Machine table depth | 2- 3/4” 70MM |

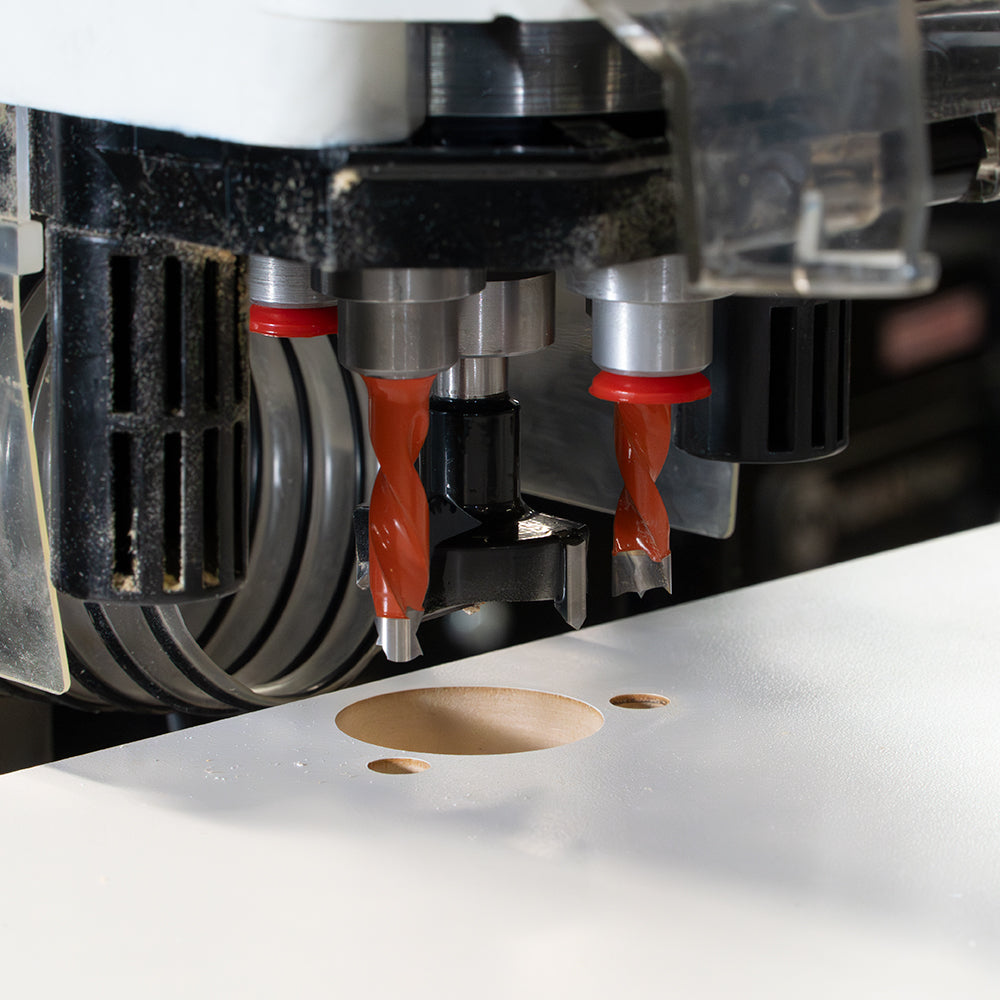

| Hinge boring Bit Diameter | Carbide Tipped - 35mm |
| Hinge boring Bit Rotation | Right |
| Hinge boring shank | 10MM |
| Hinge boring Length | 57MM |
| Drill bits Diameter | Carbide Tipped - 8MM |
| Drill boring Bits Rotation | Left |
| Drill boring shank | 10 MM |
| Machine Dimensions (LxWxH) | 33 7/16”x 28 3/8”x31 1/2” | 850mmx720mmx800mm |
| Number of Stops | 2 Left / 2 Right |
| Maximum Depth of Stroke | 4 - 5/16” | 110MM |
| Boring distance center spindle | 0 - 2 3/4” | 0 - 70 MM |
| Air requirement | 90 PSI - 3 SCFM |
| Machine Weight | 50Kg 110LBS |
| Avg Noise emissions | 78dB |
Documents
Instructions
Full Spec Sheet
| Model | HBM.1000 |
| Electrical | 1-Phase, 110V 13.6A or 220V 6.8A |
| Motor | 1.5 HP, 1.1 kW, 3,400 RPM |
| Table Size | 18 x 31-1/2 in |
| Hinge Boring Bit | Carbide-tipped, 35mm |
| Drill Bit Diameter | Carbide-tipped, 8mm |
| Air Requirement | 90 PSI, 3 SCFM |
| Weight | 110 lbs |
| Noise | 78 dB |
