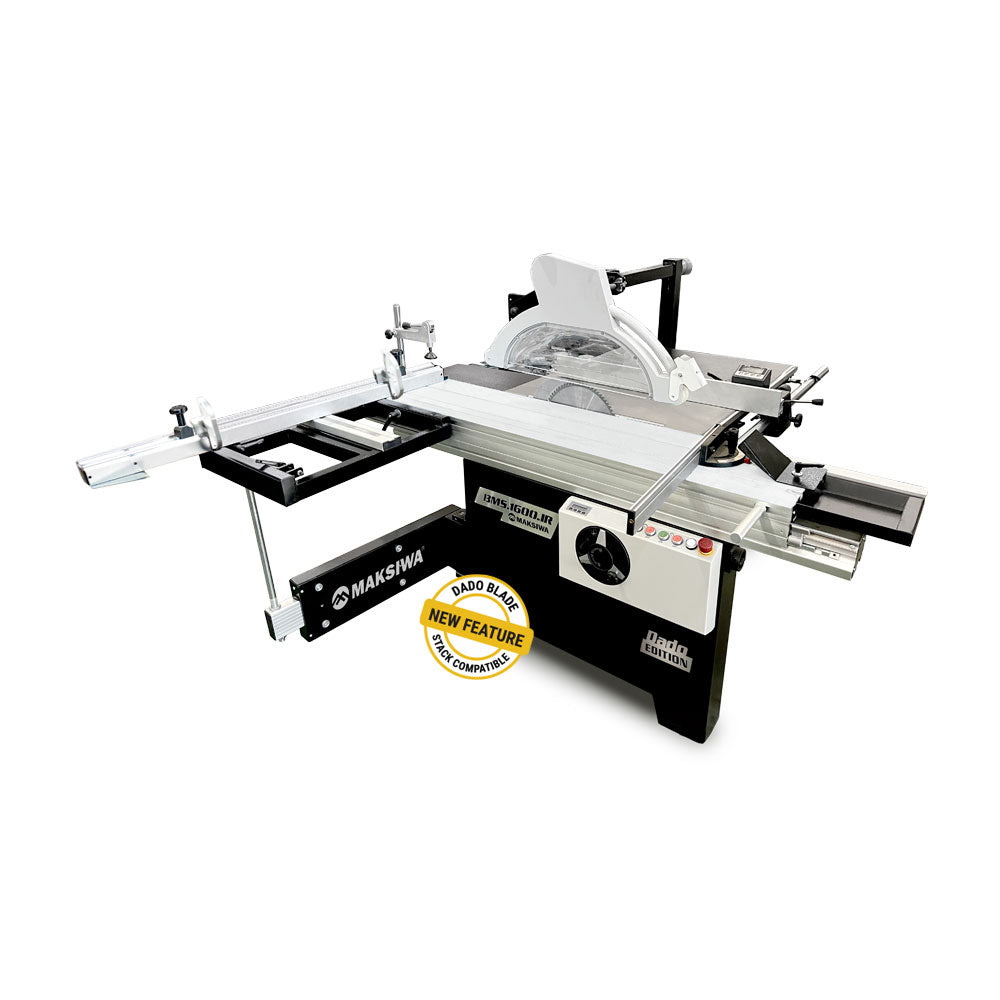

Maksiwa BMS.1600.IR Dado Edition BMS.1600.IR

SKU: BMS.1600.IR

$5,759.00 Free Shipping

As low as $520.04/mo with shop

In Stock & Ready to Ship

Save 3%% Today at Checkout

✓ Authorized Dealer

✓ Free And Fast Shipping

✓ Expert Product Support Call 419-967-3418

Secure checkout

Secure Checkout

Manufacturer Warranty

Easy 30-Day Returns

Expert Support

Key Features

✓ Supports dado stacks up to 1-1/4 in using an 8 in blade

✓ Ensures chip-free precision for joinery and cabinetmaking applications

✓ Quick blade changes between dado and standard blades streamline workflow

✓ Digital angle display and digital fence readout

✓ Rip fence micro adjustment for exact, repeatable cuts

✓ Compact 79 x 115 x 66 in footprint

Product Description

Maksiwa proudly introduces the BMS.1600.IR Dado Edition, an upgraded version of our popular sliding panel saw, now enhanced with dado blade stack compatibility. Designed for precision, power, and efficiency, this compact yet high-performance machine is perfect for shops that demand versatile cutting capabilities without sacrificing space.

With the ability to support dado stacks up to 1-1/4″ using an 8″ blade, the BMS.1600.IR Dado Edition ensures chip-free precision for joinery and cabinetmaking applications. Plus, quick blade changes between dado and standard blades streamline workflow, maximizing productivity.

Experience the next level of cutting flexibility—upgrade to the BMS.1600.IR Dado Edition today!

Main Motor	5 HP 4000 RPM 3.7 Kw
Max Blade Diameter	12" \| 305mm
Main Blade Arbor	30mm
Main Blade Max Cutting Height at 90º	3 1/2"
Main Blade Max Cutting Height at 45º	2 1/2"
Dado Width Capacity	3/4"
Max Dado Blade Diameter	8"
Dado Blade Arbor	1 3/16" \| 30mm
Scoring Motor	1 HP 8000 RPM .74Kw
Scoring Blade	4 3/4" \| 120mm
Scoring Blade Arbor	25/32" \| 20mm
Scoring Blade Type	Conical
Max Ripping Capacity	35 1/2" \| 900mm
Crosscut Capacity	63"
Crosscut fence max. (Closed/Open)	48" / 80"
Machine Working Dimension (LxWxH)	79" x 115" x 66"
Sliding Table Dimension	63" x 12"
Cast Iron Table dimension (LxWxH)	32 1/2" x 21" x 35 1/2"
Max Tilt	45º
Dust Collection Port	4"
Electrical Specs	1 PH 220V 30 Amps 60Hzs
Weight	1000 lbs

Technical Info	BMS.1600.IR	BMS.3200.IR	BMT.3200.IR	BMP.3200.IR	BMD.3200.IR
Warranty	2 Years	2 Years	2 Years	2 Years	2 Years
Digital Angle Display	Yes	Yes	Yes	Yes	Yes / CNC
Eye Level Control Panel	No	No	No	Yes	Yes / Touch Screen
Digital Fence Readout	Yes	No	Yes	Yes	Yes/ CNC
Rip Fence Micro Adjustment	Yes	Yes	Yes	Yes	Yes/ CNC
Main Motor	5HP 4000 RPM 3.7 Kw	5HP 4000 RPM 3.7 Kw	5HP 4000 RPM 3.7 Kw	7.5 HP 4000 RPM 5.5 Kw	10 HP 7.5 Kw RPM 3,000/4,000/5,000
Max Blade Diameter	12" \| 305 mm	12" \| 305 mm	12" \| 305 mm	14" \| 355 mm	14" \| 355 mm
Main Blade Arbor	30 mm	30 mm	30 mm	30 mm	30 mm
Main Blade Max Cutting Height at 90º	3 1/2" \| 90mm	3 1/2" \| 90mm	3 1/2" \| 90mm	4" \| 101 mm	4" \| 101 mm
Main Blade Cutting Height at 45º	2 1/8" \| 53 mm	2 1/8" \| 53 mm	2 7/16" \| 63 mm	2 3/4" \| 70mm	2 3/4" \| 70mm
Scoring Motor	1 HP 8000 RPM .74 Kw	1 HP 8000 RPM .74 Kw	3/4 HP 8000 RPM .55 Kw	3/4 HP 8000 RPM .55 Kw	1 HP 8000 RPM .55 Kw
Scoring Blade	4 3/4" - 120 mm	4 3/4" - 120 mm	4 3/4" - 120 mm	4 3/4" - 120 mm	4 3/4" - 120 mm
Scoring Blade Arbor	25/32" \| 20mm	25/32" \| 20mm	25/32" \| 20mm	25/32" \| 20mm	25/32" \| 20mm
Scoring Blade Type	Conical	Conical	Conical	Conical	Conical
Max Ripping Capacity	35 1/2"	51" \| 1300 mm	51" \| 1300 mm	51" \| 1300 mm	51" \| 1300 mm
Crosscut Capacity	63" \| 1600mm	126" \| 3200 mm	126" \| 3200 mm	126" \| 3200 mm	126" \| 3200 mm
Crosscut Fence Capacity Closed / Open	48" \| 80"	74 3/4" \| 108"	78" \| 120"	78" \| 120"	78" \| 120"
Machine Working Dimensions (LxWXH)	79" x 115" x 66"	126" x 137" x 52"	132" x 137" x 52"	132" x 137" x 75"	132" x 137" x 75"
Cast Iron Table Dimension (LxWxH)	32 1/2" x 21" x 35 1/2"	31 1/2" x 21" x 34 3/4"	35" x 21" x 34"	35" x 21" x 34"	35" x 21" x 34"
Sliding Table Dimension (LxW)	63" x 12"	126" x 14 3/4"	126" x 14"	126" x 14"	126" x 14"
Dust Collection Port (2)	4"	4"	4"	4"	4"
Minimum Dust Collection Requirement	1000 CFM	1000 CFM	1000 CFM	1000 CFM	1000 CFM
Electrical Specs	1 PH 220V 30 Amps 60 Hz	1 PH 220V 22 Amps 60 Hz 3 PH 220V 11 Amps 60 Hz	1 PH 220V 30 Amps 60 Hz	3 Phase 220V 30 Amps 60 Hz	3 Phase 220V 40 Amps 60 Hz
Main Body Crate Dimension (LxW XH)	31 1/2" x 21" x 32"	88" x 48" x 43"	83" x 45" x 45"	83" x 45" x 45"	83" x 45" x 45"
Main Body Crate Weight	1000 lbs	1257 lbs	1254 Lbs	1470 lbs	1470 lbs
Sliding Table Crate Dimensions (LxWxH)	63" X 12"	140" x 19" x 8 1/2"	133" x 18" x 15"	133" x 18" x 15"	133" x 18" x 15"
Sliding Table Crate Weight		282"	274"	274"	274"
Sliding Table Width	14 3/4"	14 3/4"	14"	14"	14"
Sliding Table Mechanism	Roller Bearings	Roller Bearings	Ball Bearings	Ball Bearings	Roller Bearings

Documents

Instructions

The Disclaimer Saw

Full Spec Sheet

Model	BMS.1600.IR Dado Edition
Main Motor	5 HP, 4,000 RPM, 3.7 kW
Max Blade Diameter	12 in
Dado Width Capacity	3/4 in
Max Dado Blade Diameter	8 in
Max Ripping Capacity	35-1/2 in
Crosscut Capacity	63 in
Electrical	1-Phase 220V, 30 Amps
Weight	1,000 lbs
Warranty	2 Years
