Maksiwa BMD.3200.IR BMD.3200.IR

SKU: BMD.3200.IR

$8,999.00 Free Shipping

As low as $812.61/mo with shop

In Stock & Ready to Ship

Save 3%% Today at Checkout

✓ Authorized Dealer

✓ Free And Fast Shipping

✓ Expert Product Support Call 419-967-3418

Secure checkout

Secure Checkout

Manufacturer Warranty

Easy 30-Day Returns

Expert Support

Key Features

✓ Powerful 10 HP motor with advanced CNC-controlled rip fence

✓ Intuitive touchscreen interface for exceptional accuracy and control

✓ Durable, industrial-grade frame ensures long-lasting stability

✓ Integrated safety features and built-in dust collection system

✓ Excels on both large panels and detailed cuts

✓ 2-year warranty with responsive US-based customer support

How It Compares

How The Maksiwa BMD.3200.IR Compares To Other Maksiwa Panel Saws

Cabinet and furniture shops evaluating Maksiwa's sliding panel saw line usually face this question: should I get the compact BMS.1600.IR, the mid-tier BMP.3200.IR Platinum, or invest in the flagship CNC-controlled BMD.3200.IR?

Feature	Maksiwa BMS.1600.IR, 5 HP	Maksiwa BMP.3200.IR Platinum, 7.5 HP	Maksiwa BMD.3200.IR, 10 HP CNC
Main Motor	5 HP, 4,000 RPM	7.5 HP, 4,000 RPM	10 HP, 3,000/4,000/5,000 RPM
Crosscut Capacity	63 in	126 in	126 in
Rip Fence Control	Digital readout, manual	Digital readout, manual micro adjustment	CNC-controlled, touchscreen
Control Panel	Side mounted	Eye level	Eye level, touchscreen

Product Description

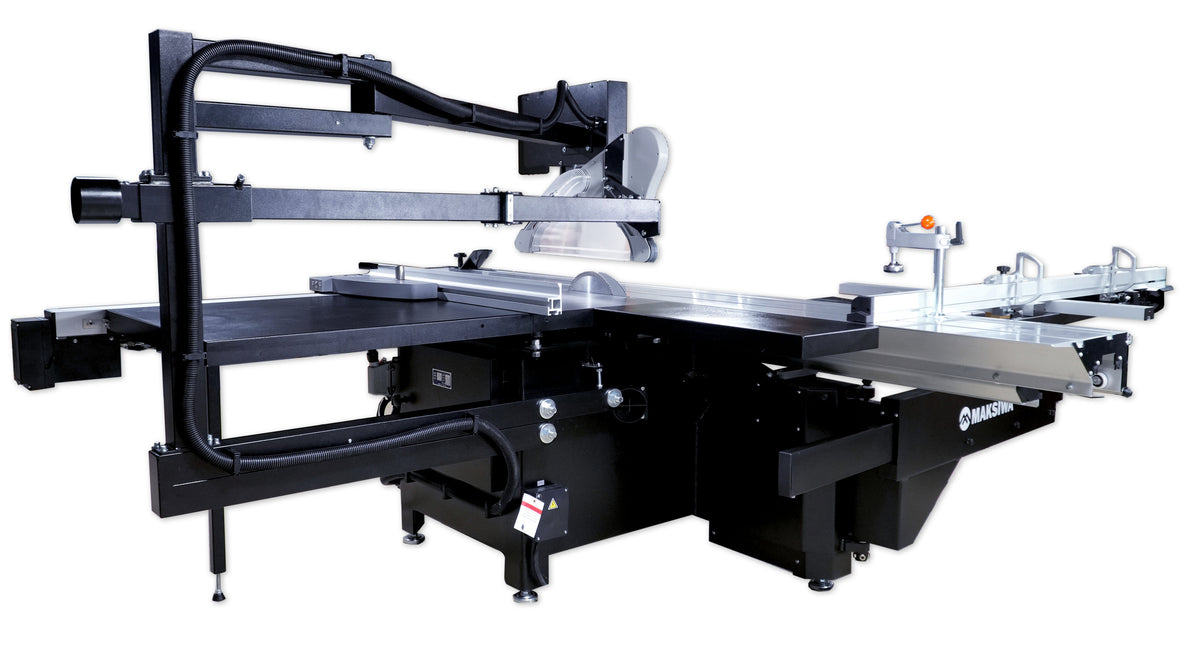

The BMD.3200.IR from Maksiwa is a high-performance sliding panel saw designed for woodworking professionals who demand precision and efficiency. Featuring a powerful 10-horsepower motor, advanced CNC-controlled rip fence, and an intuitive touchscreen interface, this machine delivers exceptional accuracy and control for a variety of cuts.

Engineered with a durable, industrial-grade frame, the BMD.3200.IR ensures long-lasting stability and reliability, while integrated safety features and a built-in dust collection system create a cleaner, safer work environment. Whether you’re handling large panels or detailed cuts, this versatile saw excels in all applications. Plus, with a two-year warranty and responsive US-based customer support, Maksiwa provides peace of mind for your investment.

Perfect for cabinetmakers, furniture manufacturers, and custom woodworkers, the BMD.3200.IR is designed to meet the high demands of modern production environments.

Technical Information	BMD.3200.IR
Main Motor	10 HP/ 7.3 Kw
Main Blade Speed	3,000/4,000/5,000 RPM
Max Blade Diameter	14" \| 355mm
Main Blade Arbor	1 3/16" \| 30mm
Main Blade Max cutting Height at 90°	4" \| 101 mm
Main Blade Cutting Height at 45°	2 3/4" \| 70mm
Scoring Motor	3/4 HP / 8000 RPM .75 kw
Scoring Blade	4 3/4" \| 120mm
Scoring Blade Arbor	25/32" \| 20mm
Scoring Blade Type	Conical
Max Ripping Capacity	51" \| 1300mm
Crosscut Capacity	126" \| 3200 mm
Crosscut Fence Capacity Closed/Open	78" / 120" \| 1981mm / 3048 mm
Machine Working Dimensions (LxWxH)	132" x 137" x 75" \| 3352 x 3479 x 1905 mm
Cast Iron Table Dimension (LxWxH)	35" x 21" x 34" \| 896 X 548 X 864 mm
Sliding Table Dimension (LxW)	126" x 14 " \| 3200 x 358 mm
Dust Collection Port (2)	4" \| 100mm
Minimum Dust Collection Requirements	1000 CFM \| 28m/min
Electrical Specs	3 Phase 220V 40 Amps 60 Hz
Main Body Crate Dimensions (LxWxH)	83" x 45" x 45" \| 2108x 1143 x 1143 mm
Main Body Crate Weight Net/Gross	1470 LBS \| 667 KGS
Sliding Table Crate Dimensions (LxWxH)	133" x 18" x 15" \| 3378 x 457 x 381 mm
Sliding Table Crate Weight Net/Gross	274 LBS \| 124 KGS

Technical Info	BMS.1600.IR	BMS.3200.IR	BMT.3200.IR	BMP.3200.IR	BMD.3200.IR
Warranty	2 Years	2 Years	2 Years	2 Years	2 Years
Digital Angle Display	Yes	Yes	Yes	Yes	Yes / CNC
Eye Level Control Panel	No	No	No	Yes	Yes / Touch Screen
Digital Fence Readout	Yes	No	Yes	Yes	Yes/ CNC
Rip Fence Micro Adjustment	Yes	Yes	Yes	Yes	Yes/ CNC
Main Motor	5HP 4000 RPM 3.7 Kw	5HP 4000 RPM 3.7 Kw	5HP 4000 RPM 3.7 Kw	7.5 HP 4000 RPM 5.5 Kw	10 HP 7.5 Kw RPM 3,000/4,000/5,000
Max Blade Diameter	12" \| 305 mm	12" \| 305 mm	12" \| 305 mm	14" \| 355 mm	14" \| 355 mm
Main Blade Arbor	30 mm	30 mm	30 mm	30 mm	30 mm
Main Blade Max Cutting Height at 90º	3 1/2" \| 90mm	3 1/2" \| 90mm	3 1/2" \| 90mm	4" \| 101 mm	4" \| 101 mm
Main Blade Cutting Height at 45º	2 1/8" \| 53 mm	2 1/8" \| 53 mm	2 7/16" \| 63 mm	2 3/4" \| 70mm	2 3/4" \| 70mm
Scoring Motor	1 HP 8000 RPM .74 Kw	1 HP 8000 RPM .74 Kw	3/4 HP 8000 RPM .55 Kw	3/4 HP 8000 RPM .55 Kw	1 HP 8000 RPM .55 Kw
Scoring Blade	4 3/4" - 120 mm	4 3/4" - 120 mm	4 3/4" - 120 mm	4 3/4" - 120 mm	4 3/4" - 120 mm
Scoring Blade Arbor	25/32" \| 20mm	25/32" \| 20mm	25/32" \| 20mm	25/32" \| 20mm	25/32" \| 20mm
Scoring Blade Type	Conical	Conical	Conical	Conical	Conical
Max Ripping Capacity	35 1/2"	51" \| 1300 mm	51" \| 1300 mm	51" \| 1300 mm	51" \| 1300 mm
Crosscut Capacity	63" \| 1600mm	126" \| 3200 mm	126" \| 3200 mm	126" \| 3200 mm	126" \| 3200 mm
Crosscut Fence Capacity Closed / Open	48" \| 80"	74 3/4" \| 108"	78" \| 120"	78" \| 120"	78" \| 120"
Machine Working Dimensions (LxWXH)	79" x 115" x 66"	126" x 137" x 52"	132" x 137" x 52"	132" x 137" x 75"	132" x 137" x 75"
Cast Iron Table Dimension (LxWxH)	32 1/2" x 21" x 35 1/2"	31 1/2" x 21" x 34 3/4"	35" x 21" x 34"	35" x 21" x 34"	35" x 21" x 34"
Sliding Table Dimension (LxW)	63" x 12"	126" x 14 3/4"	126" x 14"	126" x 14"	126" x 14"
Dust Collection Port (2)	4"	4"	4"	4"	4"
Minimum Dust Collection Requirement	1000 CFM	1000 CFM	1000 CFM	1000 CFM	1000 CFM
Electrical Specs	1 PH 220V 30 Amps 60 Hz	1 PH 220V 22 Amps 60 Hz 3 PH 220V 11 Amps 60 Hz	1 PH 220V 30 Amps 60 Hz	3 Phase 220V 30 Amps 60 Hz	3 Phase 220V 40 Amps 60 Hz
Main Body Crate Dimension (LxW XH)	31 1/2" x 21" x 32"	88" x 48" x 43"	83" x 45" x 45"	83" x 45" x 45"	83" x 45" x 45"
Main Body Crate Weight	1000 lbs	1257 lbs	1254 Lbs	1470 lbs	1470 lbs
Sliding Table Crate Dimensions (LxWxH)	63" X 12"	140" x 19" x 8 1/2"	133" x 18" x 15"	133" x 18" x 15"	133" x 18" x 15"
Sliding Table Crate Weight		282"	274"	274"	274"
Sliding Table Width	14 3/4"	14 3/4"	14"	14"	14"
Sliding Table Mechanism	Roller Bearings	Roller Bearings	Ball Bearings	Ball Bearings	Roller Bearings

Documents

Instructions

The Disclaimer Saw

Full Spec Sheet

Model	BMD.3200.IR
Main Motor	10 HP, 7.3 kW
Main Blade Speed	3,000/4,000/5,000 RPM
Max Blade Diameter	14 in
Scoring Motor	3/4 HP, 8,000 RPM
Max Ripping Capacity	51 in
Crosscut Capacity	126 in
Electrical	3-Phase 220V, 40 Amps
Main Body Weight	1,470 lbs
Warranty	2 Years
