Product Description

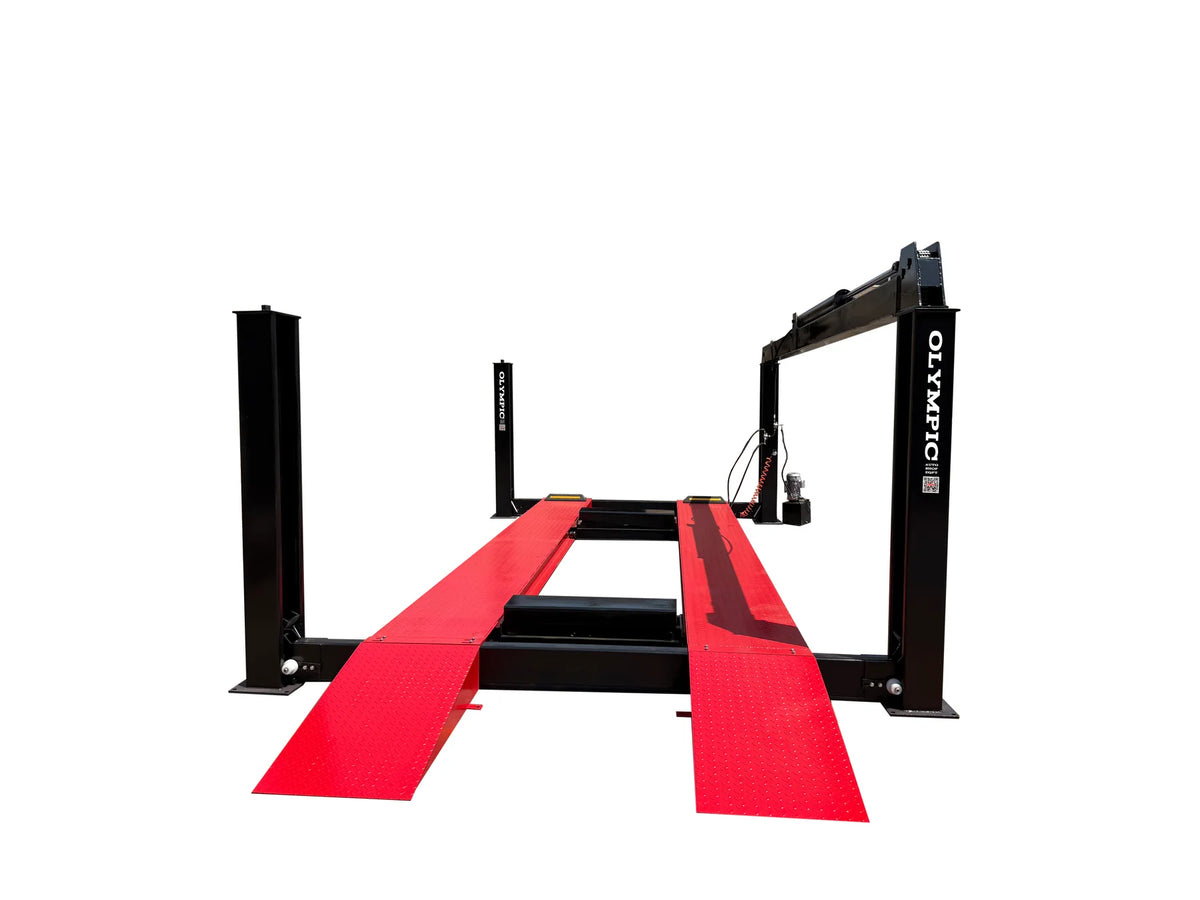

Heavy-Duty Commercial-Grade Alignment lift for Trucks, Heavy Equipment and Cars.
"The Big-Rig" 33,000 Lbs. Capacity Alignment Lift is designed for maximum durability, strength and performance. Perfect for servicing and aligning large trucks, dump trucks, and semi-tractors, yet versatile enough to accommodate light-duty vehicles and cars. This lift handles anything you load on it, with precision and stability.
Its advanced design supports a wide range of service operations — inspections, repairs, maintenance, alignment — making it the ultimate shop investment. Includes one 9,000 lb. rolling bridge jack.
Capacity: 33,000 lbs | Overall Height: 94.9″ | Overall Length 312" | Runway Width: 25.6″
*Special Order: Call 866-774-4531 for a Freight Quote or to Order.
Key Features
- 10-Year limited structural warranty — see the written warranty for component-specific coverage and exclusions
- 33,000 lb. load capacity
- High-quality Q235 spec structural steel
- High-quality Q235 spec structural steel
- Includes one 9,000 lb. rolling bridge jack (4PRJ-9)
- Built-in turntables and slip plates for alignments
- Aircraft-quality stainless steel hydraulic cylinders
- Movable runways for versatility
- Slip-resistant extra-long runways (275.6″)
- Heavy-duty galvanized aircraft-grade cables
- Secondary locking system guards against cable failure
- Spring-loaded safety locks engage automatically
- Adjustable ladder locks for precision leveling
- Built-in grease fittings for easy lubrication
- Chain drive prevents over-extension
- Acceptable for outdoor use (protect power unit)
- Includes one 9,000 lb. Rolling Bridge Jack (Part No. 4HRJ-9)
- Optional 9,000 lb. Rolling Bridge Jack (Part No. 4HRJ-9)
- Maintenance-free 380V 3-phase hydraulic power unit
- Olympic states this model is load-tested at 150% of rated capacity; ask for current model-specific certification documentation
Specifications
| Style | 4-Post Alignment Lift |
|---|---|
| Weight Capacity | 33,000 lbs |
| Overall Lift Length | 289.3″ |
| Overall Width | 152.3″ |
| Overall Height | 94.9″ |
| Minimum Lift Height | 7.88″ |
| Lifting Height | 67″ |
| Runway Width | 27.6″ |
| Runway Length | 275.6″ |
| Runway Height | 7.9″ |
| Width Between Runways | 43.3″ |
| Width Between Posts | 129″ |
| Speed of Rise | 60 seconds |
| Speed of Lowering | 60 seconds |
| Bridge Jack Capacity | 9,000 lbs |
| Voltage | 220/380V, 3KW, 60Hz, 3-phase |
| Amps | 15 / 8.8 |
Why Choose an Olympic Lift?
When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. Compare the exact model’s specifications, installation requirements, written warranty and current certification documentation before purchase. Olympic states that this model is load-tested at 150% of rated capacity. Ask for current model-specific certification and test documentation.
