Product Description
A 14,000-lb. alignment and maintenance lift for professional shops.

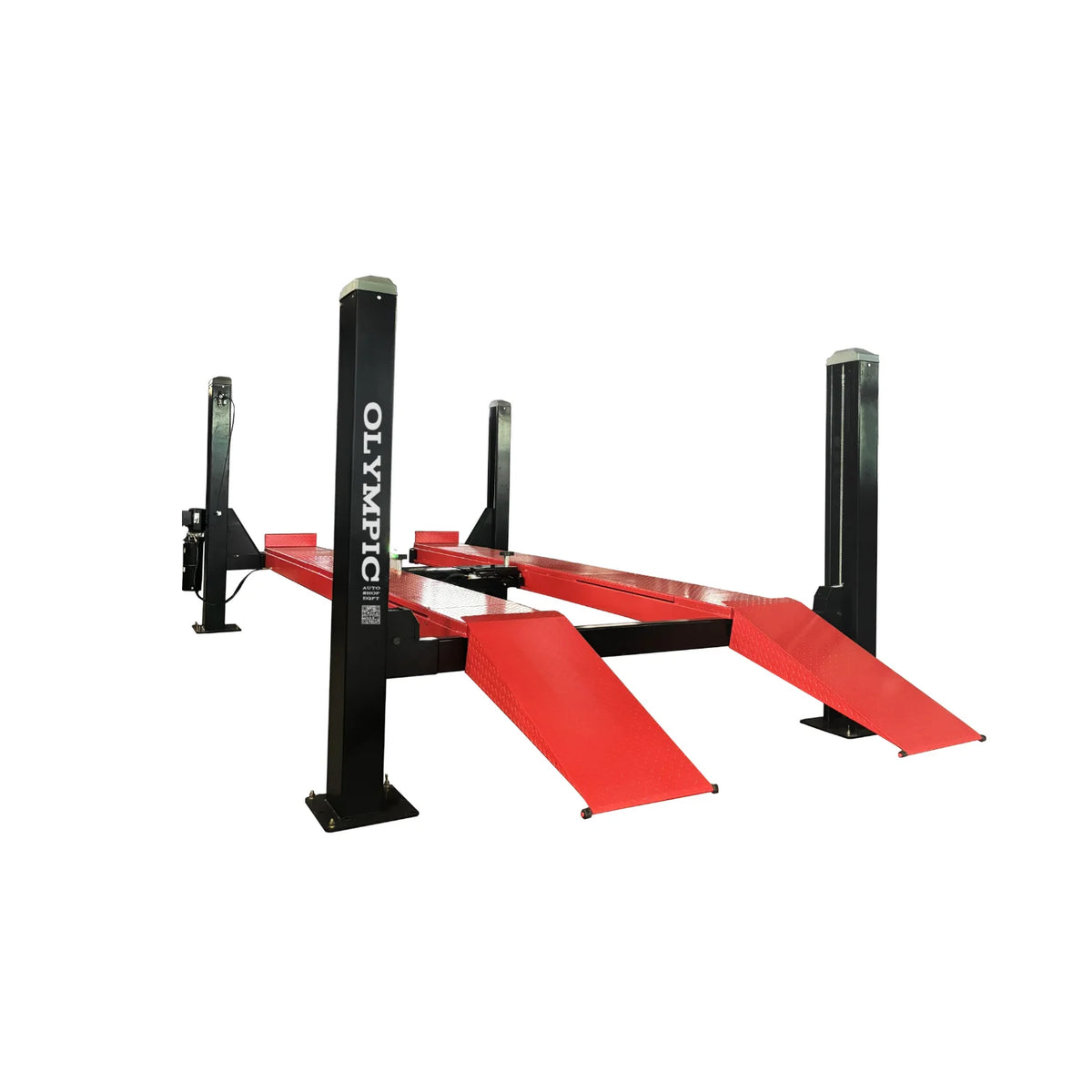

The Olympic 4PHDXLA-14 combines a four-post maintenance lift with alignment turntables and rear slip plates. It is intended for compatible cars, vans, and trucks whose weight, dimensions, wheelbase, and lifting points fall within the published specifications. Confirm vehicle fit and site requirements before ordering.
Capacity: 14,000 lbs. | Max. Lift Height: 70.9″ | Runway Width: 21.65″
Key Features
- 10-year limited structural warranty — see the written warranty for coverage, terms, and exclusions.
- Load capacity: 14,000 lbs.
- High-quality Q235 spec structural steel
- Includes turntables and slide-plates
- Max lift height: 70.9″
- Air lock release system
- 21.6″ runway width
- Cable-driven lifting system
- Adjustable lock system — locks at any height
- Cable anti-failure system for enhanced safety
- Italian oil seals
- Durable powder-coated finish
- Standard 220V power — 4HP, 3KW, 60Hz, 1PH
- Optional 7,000 lb. Bridge Jack (Part No. HLCJ-14)
Operating & Power Requirements
- Power requirement: 220V 60Hz 2.2KW or 3KW 1-phase
- Operating temperature: 5°C to 40°C
- Ambient humidity: 30% to 95% (at 40°C)
- Installation altitude: 5,500 feet/1675m above sea level
- Storage/transport temperature: -25°C to 55°C
Safety Features
- Heavy-duty cable sheaves for enhanced protection
- Spring-loaded ladder locks ensure safe, level operation
- Aircraft-grade cables rated at 16,000 lbs.
- 220V 3KW four-horsepower electric-hydraulic power unit
- Virtually maintenance-free operation
- CE-certified. Ask Olympic for the supporting CE and load-test documentation for this model if required for your records.
Additional Notes
Optional Bridge Jack: 7,000 lbs. (Model HLCJ-14). A pair of jacks allows full vehicle to lift for wheel and brake service. Each jack includes telescoping arms, stackable adapters, and built-in safety locks for superior versatility.
Installation: Forklift required during setup.
Specifications
| Overall Width | 137.8″ |
|---|---|
| Drive Through Width | 99.60″ |
| Overall Height | 87.40″ |
| Width Between Posts | 116.65″ |
| Runway Width | 21.65″ |
| Width Between Tracks | 39″ |
| Lifting Height | 70.86″ |
| Overall Length | 246.06″ |
| Runway Length | 196.85″ |
| Shipping Weight | 3,880 lbs. |
| Load Capacity | 14,000 lbs. |
