Product Description
The Proto-Vest S260 dryer is ideal for tunnels, rollovers and self-service operations. This dryer is usually packaged as a combination unit that can be used in conjunction with any Proto-Vest dryer system.

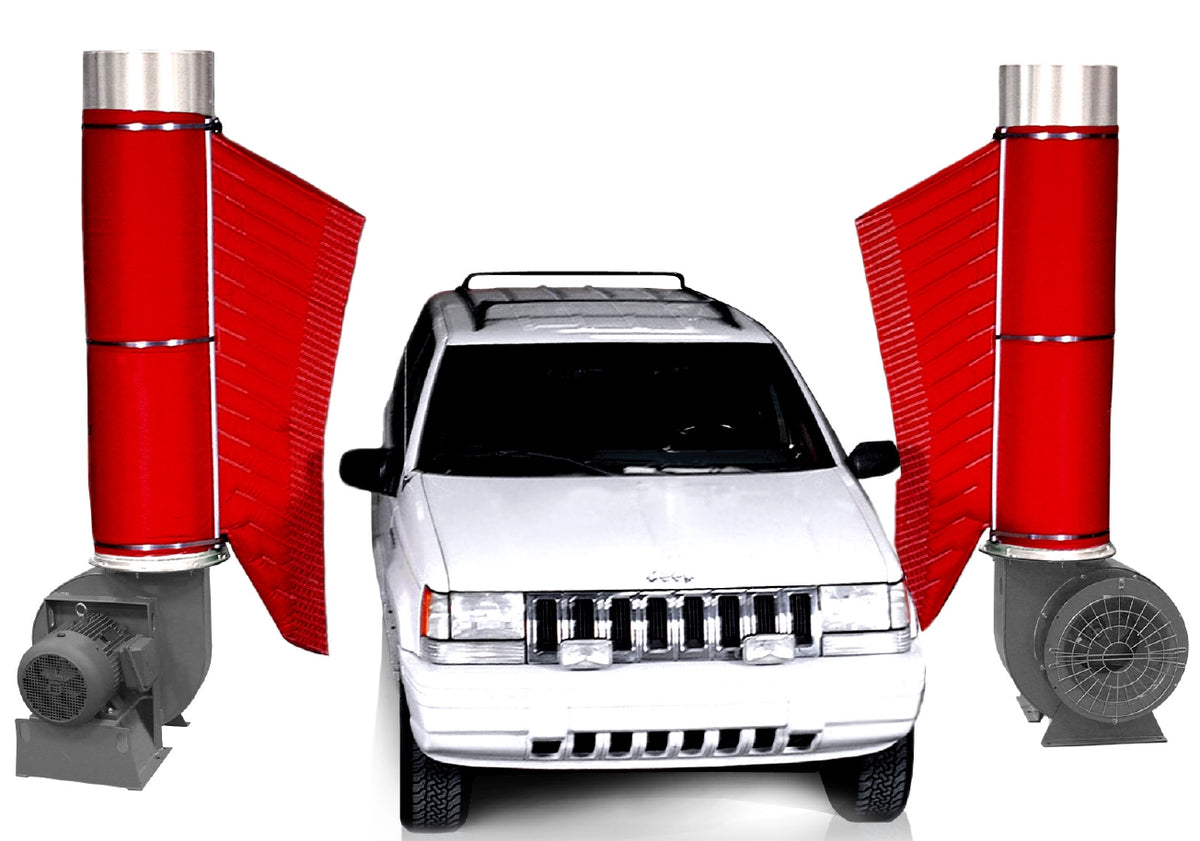

The Proto-Vest S260 is designed as both a stand alone and modular drying system that is ideal for tunnels, rollovers and self-service operations. This dryer is usually packaged as a combination unit that can be used in conjunction with any of the product lines. When packaged as a modular system, the S260 assist in providing an additional 60-hp of drying capability to any carwash application. This patented system utilizes two 30-hp blowers one on each side, a plenum and two 67” Proto-Duck™ side bag to direct air across the vehicle as it passes by the equipment.
Proto-Vest’s stringent standards in material selection for our dryers results in extended equipment life and reduced maintenance. The S260’s blower assembly is manufactured from powder coated steel. Its plenum is made from 5052-H32 aluminum and its bag is produced from durable Proto-Duck™ material to resist corrosion and tearing.
Proto-Vest S260 Detail Sheet (PDF)
Features & Benefits
- Adjustable Bag Angles
- (1) 30 Horse Power Motor Per Side
- Touch Free Drying
- Low Maintenance
- High Vehicle Count Per Hour
Equipment Options
Silencer Package
- Reduce decibel levels generated by the dryer to ensure a pleasant wash environment
Stainless Blower Package
- All stainless steel blower assembly
Motor starter options available:
- Contractor
- Soft start
- VFD
Motor Specifications
- (2) 30hp, 3600 RPMs
- 208-230 / 460 volts
- 1.15 service factor
- Frame: 286TS
- 3 Phase
- (TEFC) Totally enclosed, fan-cooled
