Key Features
✓
Continuous pump for feeding bags of dry material like underlayment, mortar, or grout
✓
Switches to wet mode for materials needing longer mixing times with extra additives
✓
Exclusive IMER speed inverter on the control panel for precise output control
✓
Self-priming water booster pump with flow meter and discharge valves
✓
Includes 66 feet of power cord, 66 feet of water hose, and 50 feet of material hose
✓
Air compressor ready for spray applications
Product Description

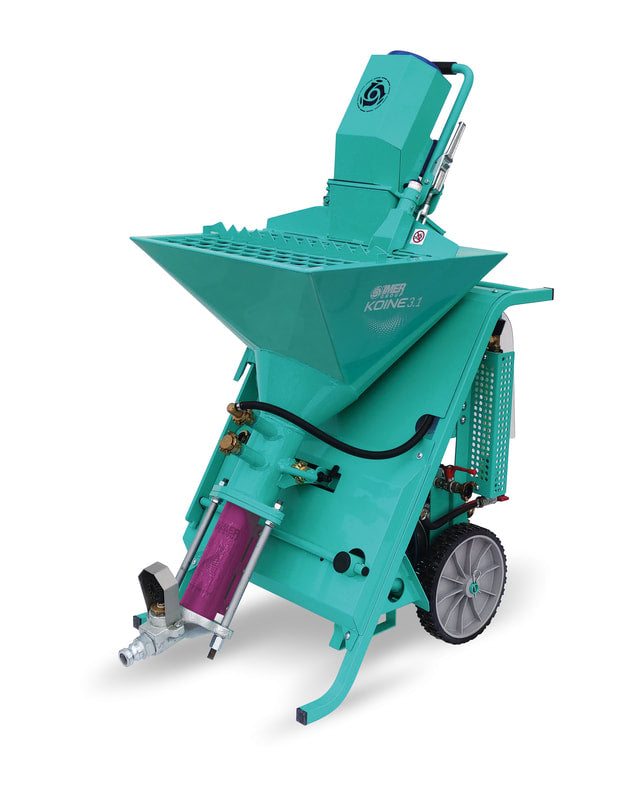

The Koine 3.1 is designed to be a continuous pump for feeding bags of dry material such as underlayment, mortar or grouts. But when you need to mix the material with lots of additives which require longer mixing times then switch to wet mode, use a separate mixer such as the Mix 120 and pour it into the hopper to use it as just a pump. This gives the flexibility and versatility to be used for any application. Rinse out the hopper when finished.
| Model # | 1106351 |
| Power Supply | 240 V 1Ø |
| Max Installed Power | 4.5 HP |
| Mixer Motor Power | 3 HP |
| Electric Pump Motor Power | .6 HP |
| Flow Rate - Dry Mode | 1/4 - 3/5 cu ft / min |
| Flow Rate - Wet Mode | .08 - 3/5 cu ft / min |
| Hopper Volume | 2.65 cu ft |
| Loading Height | 39" |
| Dimension w/l/h | 26 in x 42 in x 59 in |
| Weight | 350 lbs |
Standard Equipment
- D8 1.5 stator and rotor
- Material delivery pressure gauge
- Control panel w/ exclusive IMER speed inverter
- Self-priming water booster pump
- Water system with flow meter and discharge valves
- 66' of power cord
- 66' of water hose 19 mm (3/4")
- 50' of material hose 25 mm (1")
- Hose cleaning kit with toolbox
- Mixing chamber clean out tool
- Air compressor ready
Optional Equipment
- Dual diaphragm compressor — Part # 1107637
- Mortar, stucco and fireproofing gun kit — Part # 1107005
- D5 - 2.5 Rotor — Part # 1107085
- D5 - 2.5 Stator — Part # 1107084
- Turbo mixer (use with Part # 1107029 & # 1107028) — Part # 1107517
- 50' x 25mm material hose — Part # 1107525
- 33' x 25mm material hose — Part # 1107526
- 16' x 25mm material hose — Part # 1107527
- 5' overhead wand — Part # 1107549
- D8 - 1.5 Rotor with tab — Part # 1107029
- D8 - 1.5 Stator — Part # 1107028
- SLU mixing paddle for light materials — Part # 1107597
Downloads
Full Spec Sheet
| Model | 1106351 |
| Power Supply | 240V, single-phase |
| Mixer Motor | 3 HP |
| Pump Motor | .6 HP |
| Max Installed Power | 4.5 HP |
| Hopper Volume | 2.65 cu ft |
| Weight | 350 lbs |
